Description

Price

1

COIL, IGNITION

30510-KTZ-D00

$65.32

2

SPACER, IGNITION COIL

30520-ML7-000

$3.61

3

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$18.18

3

CAP ASSY. This part replaces 30700-KJ9-020.

30700-GAR-003

$18.18

4

RECTIFIER ASSY., REGULATE

31600-KTF-641

$194.72

5

WIRE HARNESS

32100-KTG-A20

$295.97

6

CAP, DUMMY (4P) (RED)

32606-GEV-761

$4.18

8

LOCK SET

35010-KTF-980

$69.04

9

COVER, COMBINATION SWITCH

35105-KTF-640

$2.26

10

GUARD, COMBINATION SWITCH

35107-KTF-640

$7.68

11

KEY, BLANK

35121-KPZ-900

$4.35

12

SENSOR ASSY., BANK ANGLE

35160-GFM-K01

$67.28

13

HORN (HIGH)

38110-KTZ-D00

$17.43

14

RELAY, TURN SIGNAL (MITSUBA)

38301-MEG-000

$36.10

15

RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA)

38501-KVZ-631

$9.86

18

BOLT, FLANGE (6X35)

90102-KAB-000

$2.53

19

BOLT, ONE-WAY (6X12)

90105-KEB-620

$2.09

21

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

Unavailable

22

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

23

SCREW, PAN (4X20)

93500-04020-0H

$1.00

24

BOLT, FLANGE (8X12)

95701-08012-00

$1.04

25

FUSE, MINI (10A)

98200-41000

$1.22

26

FUSE, MINI (15A)

98200-41500

$1.12

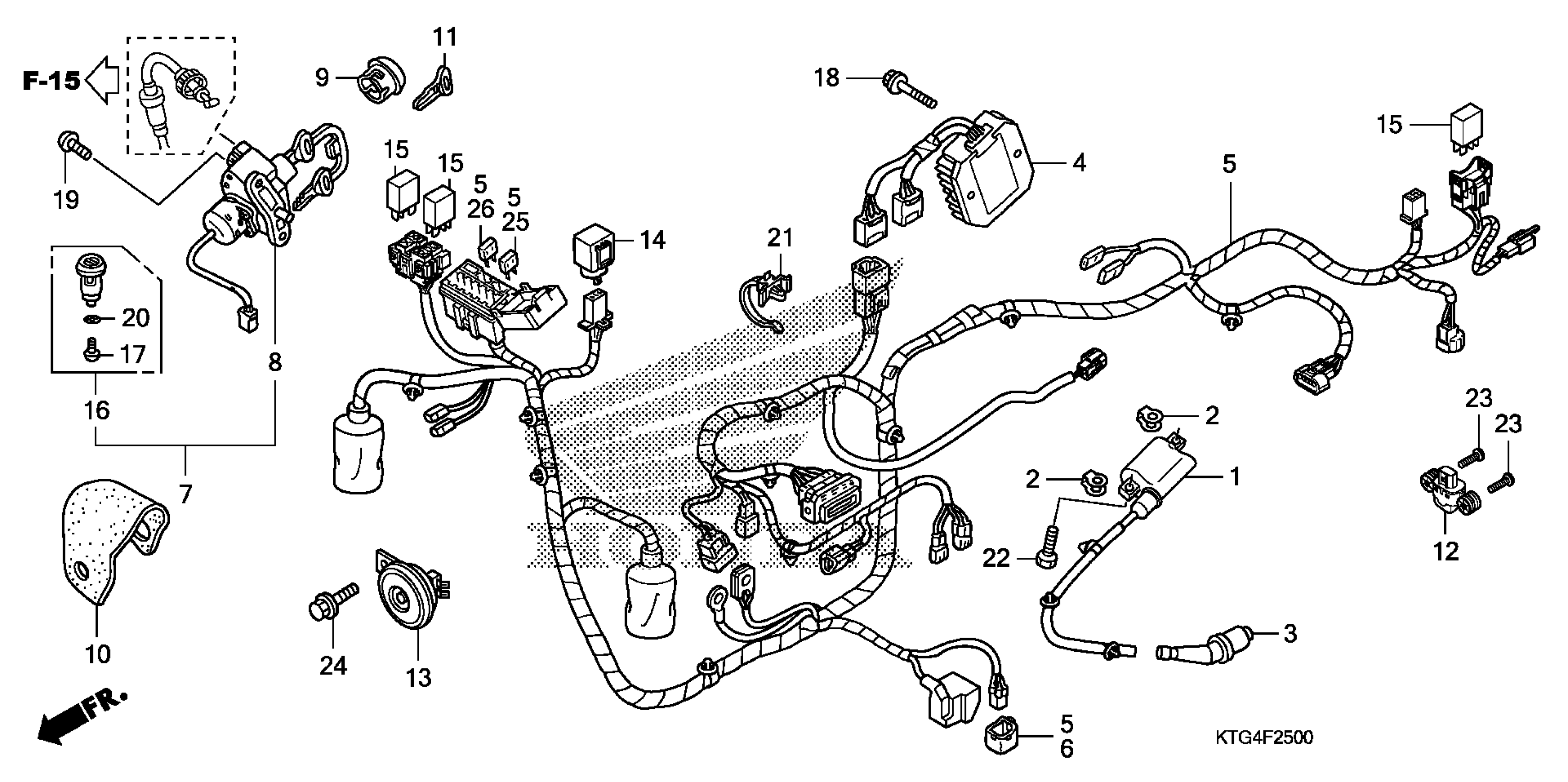

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 WIRE HARNESS Diagram
