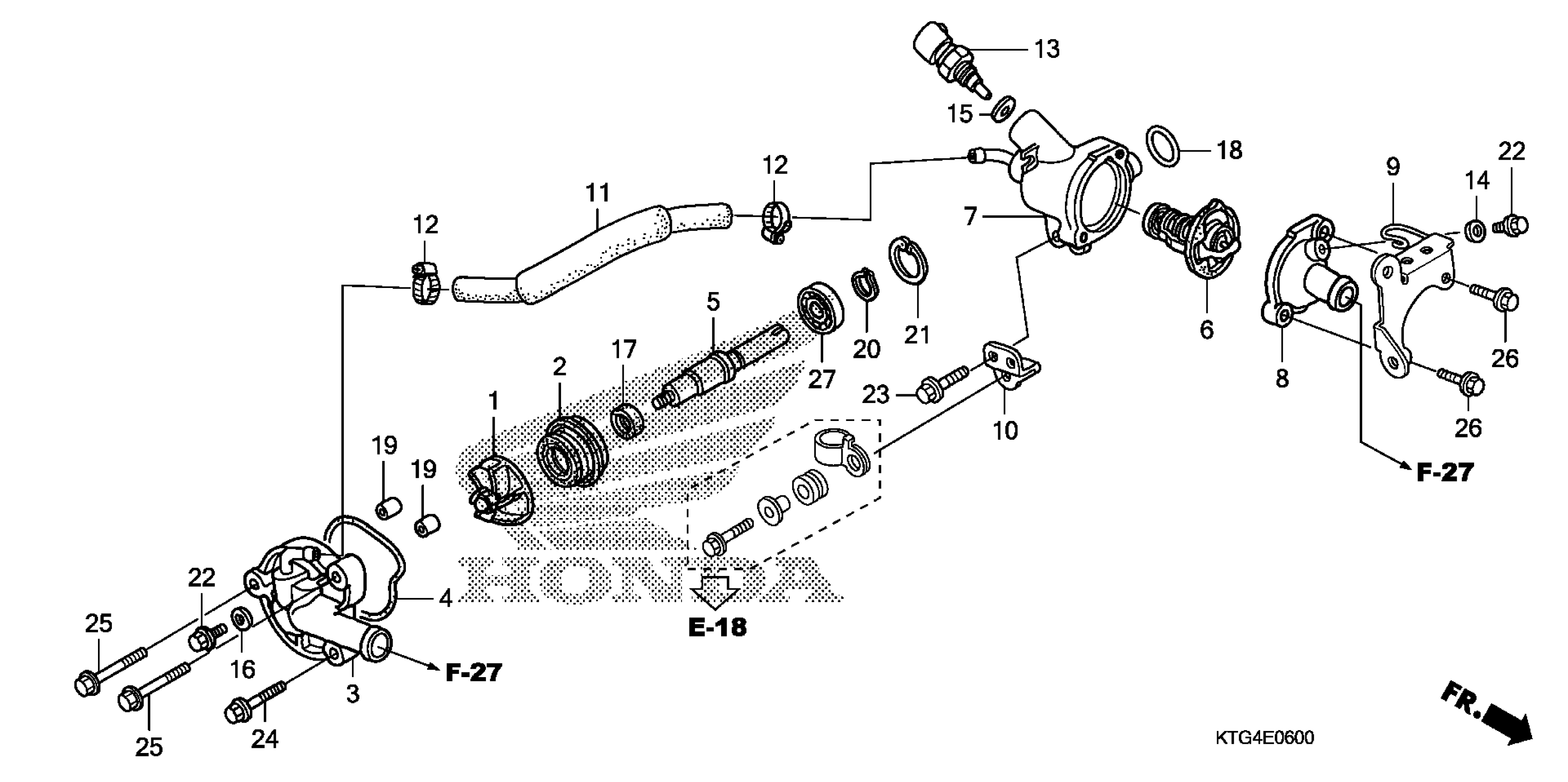

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 WATER PUMP Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19215-KGF-910

$34.16

2

SEAL, MECHANICAL

19217-657-023

$53.27

3

COVER, WATER PUMP

19220-KRJ-900

$42.08

4

GASKET, WATER PUMP COVER

19226-KRJ-900

$6.14

5

SHAFT, WATER PUMP

19231-KGF-910

$24.93

6

THERMOSTAT

19300-KGF-911

$56.38

7

CASE, THERMOSTAT

19310-KRJ-900

$76.08

8

COVER, THERMOSTAT

19315-KPR-900

$19.31

9

PLATE, THERMOSTAT COVER

19320-KTF-640

$6.87

10

PLATE, SOLENOID BASE

19346-KGF-910

$2.02

11

HOSE D, WATER

19504-KRJ-900

$24.67

12

CLAMP, BREATHER HOSE

19507-MK4-000

$10.61

13

SENSOR ASSY., WATER TEMPERATURE

37870-KTF-641

$30.41

14

WASHER, SEALING (6MM)

90441-706-000

$1.49

15

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

16

WASHER A (6MM)

90478-700-000

$1.49

17

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

18

O-RING (14.8X1.9) This part replaces 91301-KV7-671.

91307-PJ4-000

$3.47

18

O-RING (14.8X1.9)

91307-PJ4-000

$3.47

19

PIN, DOWEL (8X14)

94301-08140

$2.25

20

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

21

CIRCLIP (INNER) (26MM)

94520-26000

$1.85

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

26

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

27

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
