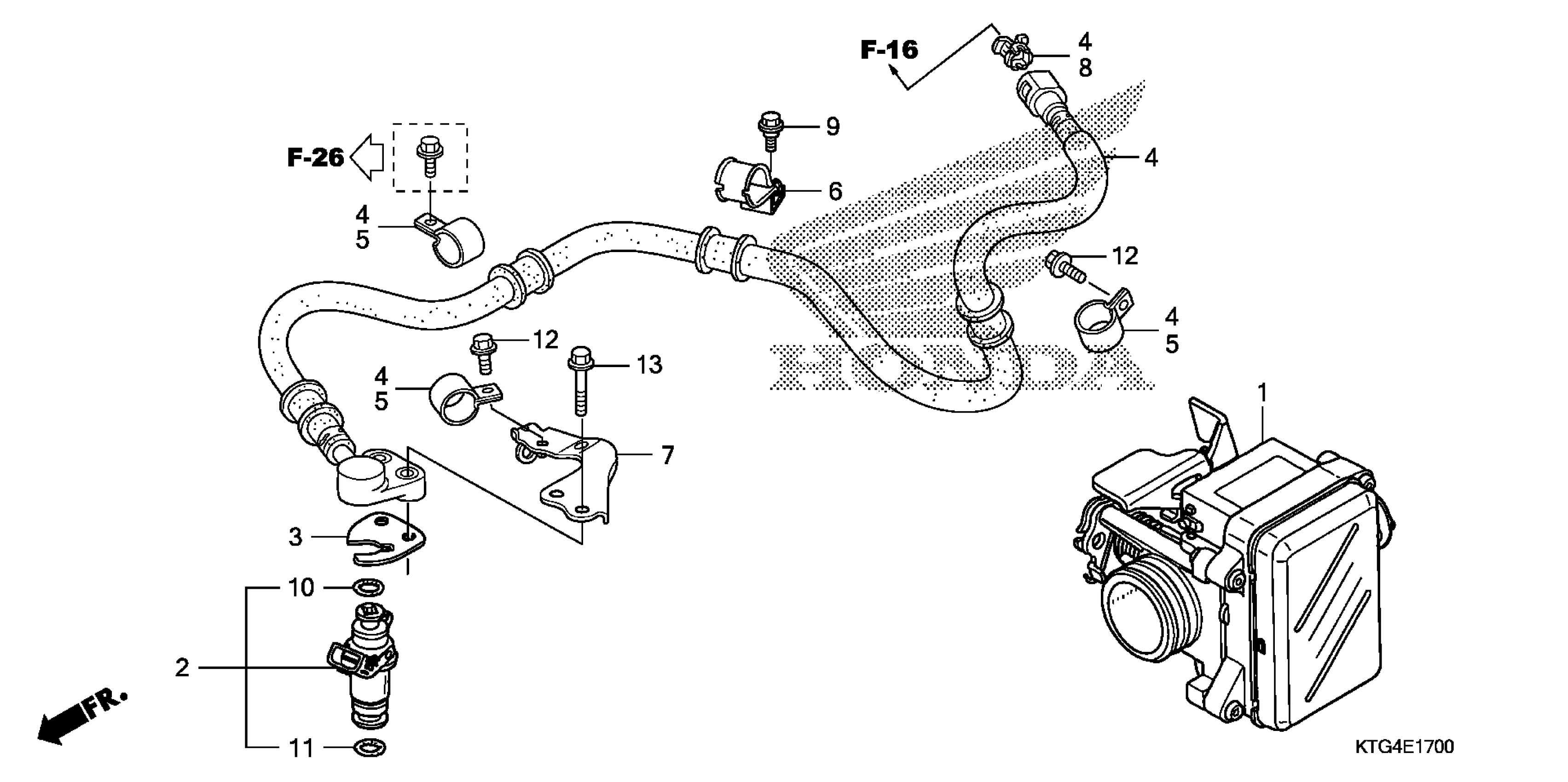

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 THROTTLE BODY Diagram

BODY ASSY., THROTTLE (GQM9A B) This part replaces 16400-KTG-921.

16400-KTG-922

$477.26

BODY ASSY., THROTTLE (GQM9A B)

16400-KTG-922

$477.26

INJECTOR ASSY., FUEL

16450-KRJ-901

$159.72

CLIP, INJECTOR

16451-KTF-640

$1.97

HOSE, FUEL FEED

17528-KTF-642

$103.15

CLAMP, FUEL HOSE

17568-KRJ-900

$3.00

CLAMP, FUEL HOSE

17568-KTZ-D00

Unavailable

STAY, HOSE CLAMP

17570-KTF-640

$2.85

RETAINER (ORANGE) (TOKAI)

17711-S0X-003

$3.12

BOLT, SPECIAL (6MM)

90122-752-000

$2.47

O-RING (7.47X3.6)

91301-PLC-000

$2.96

O-RING (7.85X3.53)

91302-PLC-000

$7.35

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

BOLT, FLANGE (6X25)

95801-06025-08

$1.79
