Description

Price

1

GEAR, STARTER DRIVEN (13T/54T)

28101-KGF-910

$46.45

2

SHAFT, STARTER REDUCTION

28102-KGF-910

$10.75

3

GEAR, STARTING CLUTCH (59T)

28110-KGF-910

$52.07

4

STARTER MOTOR ASSY.

31200-KTF-981

$210.87

5

BRUSH SET A, CARBON

31201-KPC-D51

$7.45

6

BRUSH SET B, CARBON

31202-KPC-D51

$8.66

7

HOLDER, BRUSH

31203-KPC-D51

$7.64

8

SPRING, CARBON BRUSH

31204-MEW-921

$11.33

9

BOLT SET

31205-KPC-D51

$4.22

10

BOLT, TERMINAL

31206-MEW-921

$2.67

11

RING

31207-HP5-601

$1.96

12

INSULATOR

31208-MEW-921

$6.97

13

STOPPER, TERMINAL

31209-MEW-921

$10.35

14

WASHER

31210-MEW-921

$1.65

15

CABLE, STARTER BATTERY GROUND

32413-KTF-980

$44.46

16

NUT-WASHER (6MM)

90071-MB0-000

$1.88

17

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

17

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

18

O-RING (4X2)

91320-MB0-000

$2.20

19

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.78

20

SCREW-WASHER (5X12)

93892-05012-08

$1.04

21

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

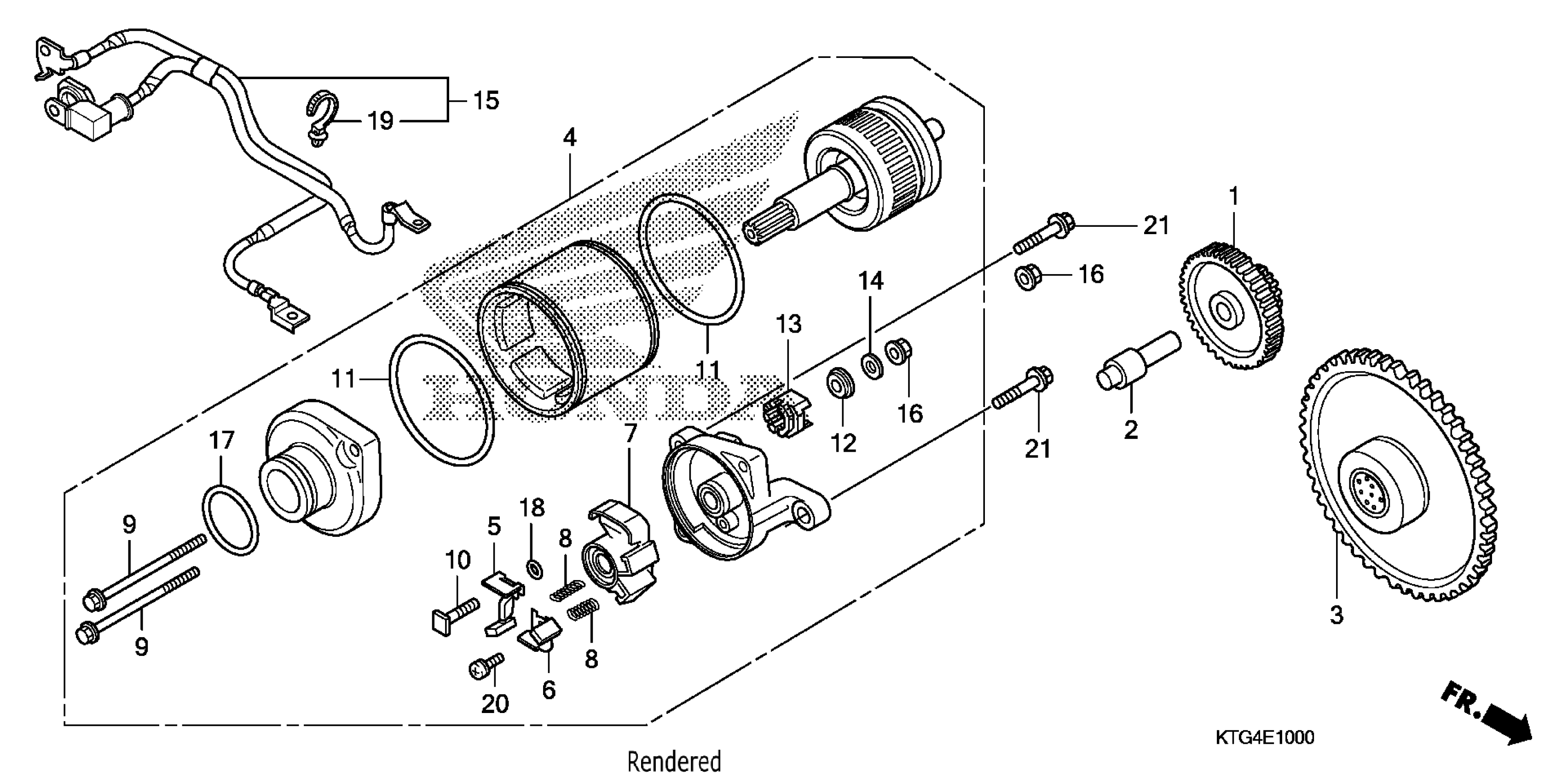

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 STARTING MOTOR Diagram
