Description

Price

1

RUBBER, SEAL

77115-KPR-900

$13.38

2

SEAT, DOUBLE

77200-KTF-981

Unavailable

3

HINGE, SEAT

77201-KPR-900

$8.13

4

PIN, SEAT HINGE

77206-KPR-900

$16.00

5

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

6

CATCH, SEAT

77230-KPR-900

$13.38

7

CABLE, SEAT LOCK

77240-KTF-641

$15.00

8

CARRIER, LUGGAGE NHB18M (MAT TECHNO SILVER METALLIC)

81200-KTF-980ZA

$138.05

9

COLLAR B, CARRIER

81203-KGF-900

$1.49

10

BOX, LUGGAGE

81250-KTF-980

$47.30

11

BAND, OWNER'S MANUAL

81270-KTF-980

$3.57

12

BOLT, FLANGE (6MM)

90111-162-000

$2.89

13

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

14

NUT, SPRING (4MM)

90302-SA4-003

$5.44

15

WASHER, PLAIN

90501-KTF-D60

$1.49

16

SCREW, PAN (5X11.5)

91509-KY4-900

$2.90

17

BOLT-WASHER (6X12)

93404-06012-00

$1.55

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

20

PIN, COTTER (1.6X25)

94201-16250

$1.49

21

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

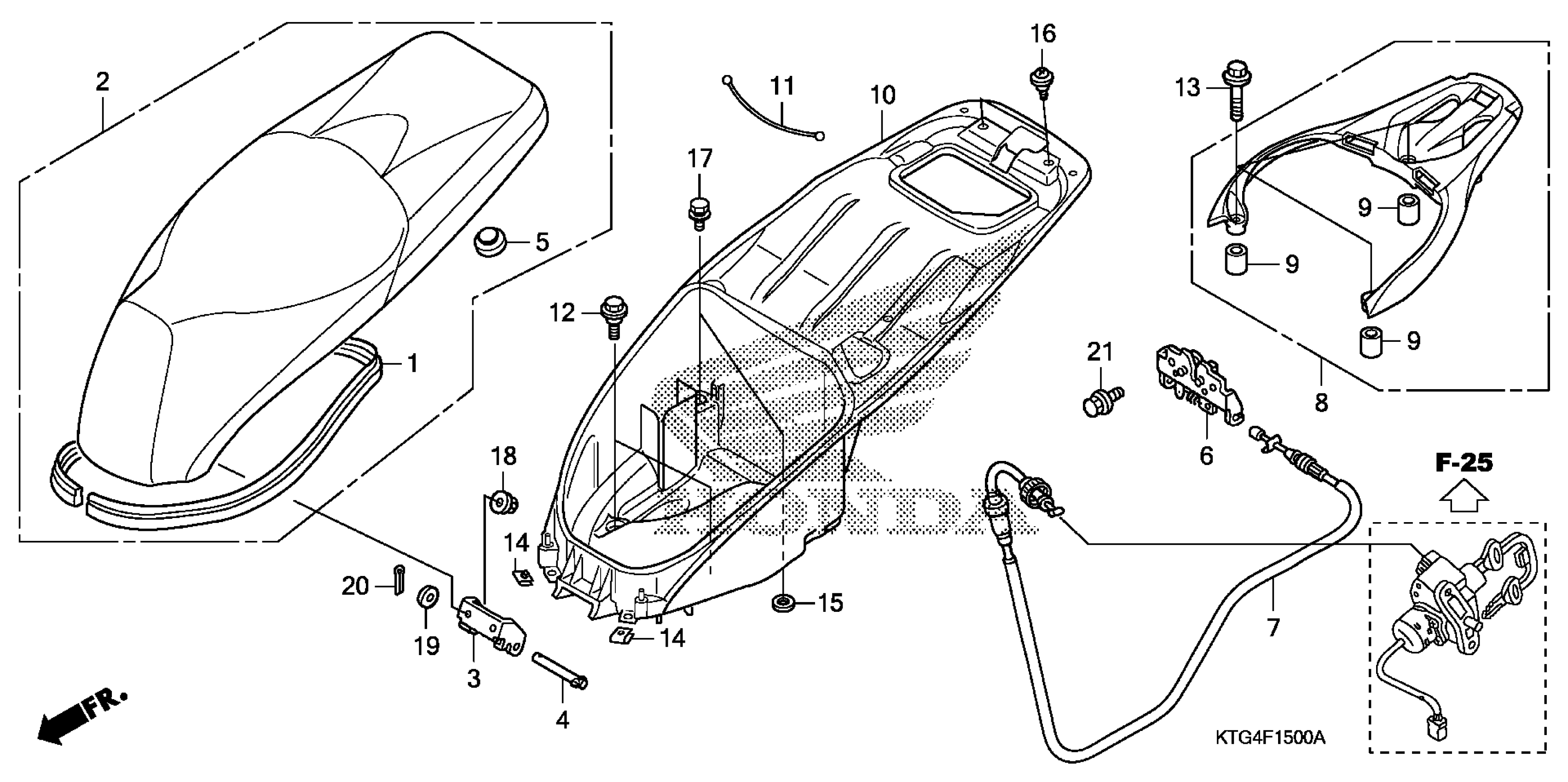

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 SEAT + LUGGAGE BOX Diagram

RUBBER, SEAL

SEAT, DOUBLE

HINGE, SEAT

PIN, SEAT HINGE

RUBBER B, SEAT STOPPER

CATCH, SEAT

CABLE, SEAT LOCK

CARRIER, LUGGAGE *NHB18M* (MAT TECHNO SILVER METALLIC)

COLLAR B, CARRIER

BOX, LUGGAGE

BAND, OWNER'S MANUAL

BOLT, FLANGE (6MM)

BOLT, SPECIAL FLANGE (8X26)

NUT, SPRING (4MM)

WASHER, PLAIN

SCREW, PAN (5X11.5)

BOLT-WASHER (6X12)

NUT, FLANGE (6MM)

WASHER, PLAIN (6MM) This part replaces 94101-06000.

WASHER, PLAIN (6MM) This part replaces 94101-06080.

WASHER, PLAIN (6MM)

PIN, COTTER (1.6X25) This part replaces 94201-16150.

PIN, COTTER (1.6X25)

BOLT, FLANGE (6X10)
