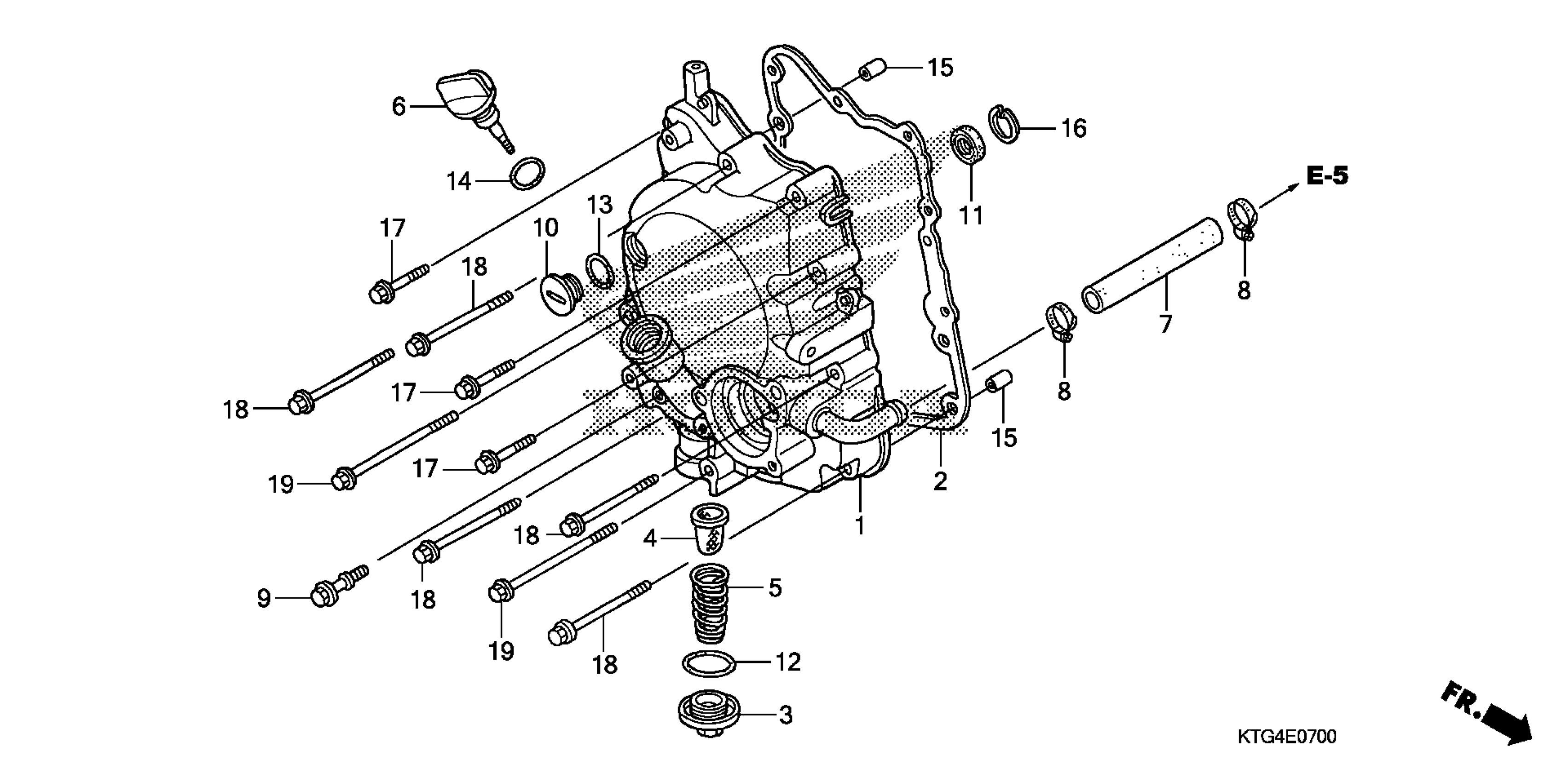

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 RIGHT CRANKCASE COVER Diagram

COVER, R.

11330-KTF-640

$157.75

GASKET, R. COVER This part replaces 11394-KGF-910.

11394-KGF-912

$10.74

CAP, OIL HOLE

12361-KGF-305

$22.93

CAP, OIL HOLE This part replaces 12361-KGF-911.

12361-KGF-305

$22.93

SCREEN, OIL FILTER

15421-107-000

$5.88

SPRING, OIL FILTER SCREEN

15426-GE1-920

$5.23

DIPSTICK, OIL

15651-KRJ-900

$1.76

HOSE E, WATER

19505-KGF-910

$10.01

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

CLAMP, WATER HOSE (25MM) This part replaces 19507-KA3-830.

19504-KY1-003

Unavailable

BOLT, SPECIAL (6X27)

90016-GAH-A00

$3.78

CAP, ALTERNATOR

90084-KGF-910

Unavailable

OIL SEAL (14X22X5)

91203-KK3-830

$3.55

O-RING (31.2X2.4)

91303-ZW9-000

$2.86

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (18X3)

91307-035-000

$2.71

PIN, DOWEL (8X14)

94301-08140

$2.04

CIRCLIP (INNER) (24MM)

94520-24000

$1.10

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

BOLT, FLANGE (6X115)

95701-06115-00

$2.88

BOLT, FLANGE (6X140)

95701-06140-00

$2.80
