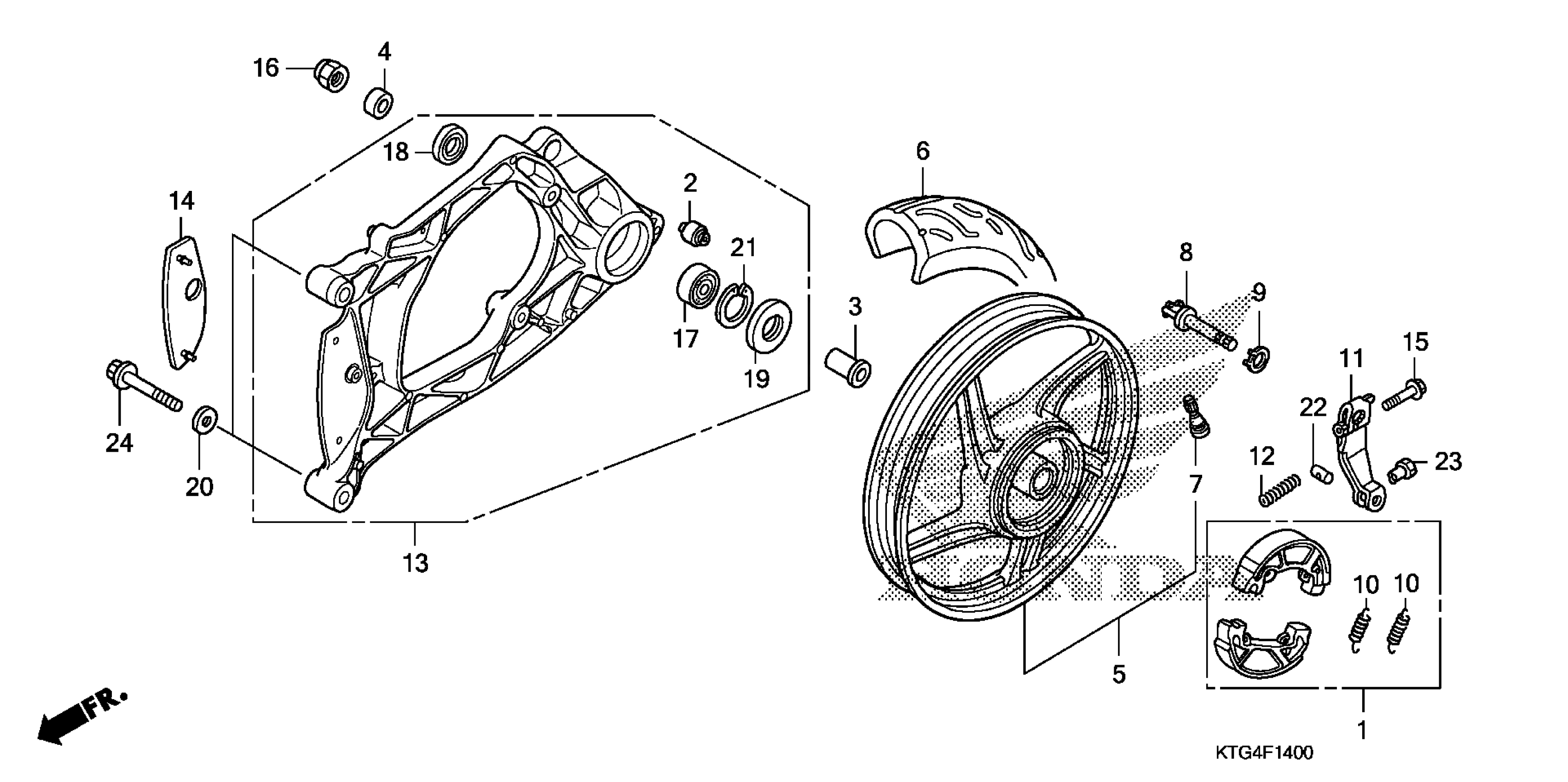

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 REAR WHEEL + SWINGARM Diagram

SHOE SET, BRAKE

06430-GBJ-K20

$34.74

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$10.71

COLLAR A, RR. AXLE

42311-KGF-900

$7.84

COLLAR B, RR. AXLE

42312-KEY-900

$3.07

WHEEL SUB-ASSY., RR. (C00) *NH365M* (GENUINE SILVER METALLIC)

42650-KTG-305ZA

Unavailable

TIRE, RR. This part replaces 42711-KPR-903.

42711-KPR-904

$66.93

TIRE, RR. (120/80-16 M/C 60P) (DUNLOP)

42711-KTF-641

$107.21

VALVE, RIM (BS) This part replaces 42753-KBS-901.

42753-ML7-003

$12.74

VALVE, RIM (BS)

42753-ML7-003

$12.74

CAM, RR. BRAKE

43141-KB4-003

$36.47

SEAT, RR. BRAKE CAM

43142-KGF-900

$1.49

SPRING, BRAKE SHOE

43151-329-000

$2.75

ARM, RR. BRAKE

43410-KGF-900

$13.56

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

SWINGARM ASSY., RR. This part replaces 52100-KTF-B20.

52100-KTF-670

$141.05

RUBBER, SWINGARM

52111-KTF-B20

$4.84

BOLT, FLANGE (6X35)

90102-KAB-000

$2.74

NUT, U (16MM)

90306-KSV-D01

$6.84

BEARING, RADIAL BALL (6303)

91051-KS4-003

$38.31

DUST SEAL (37X25X6)

91258-HB3-003

$7.25

SEAL (25X47X5)

91259-KM1-003

$8.66

WASHER, PLAIN (10MM)

94101-10000

$1.49

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

BOLT, FLANGE (10X60)

95701-10060-00

$2.03
