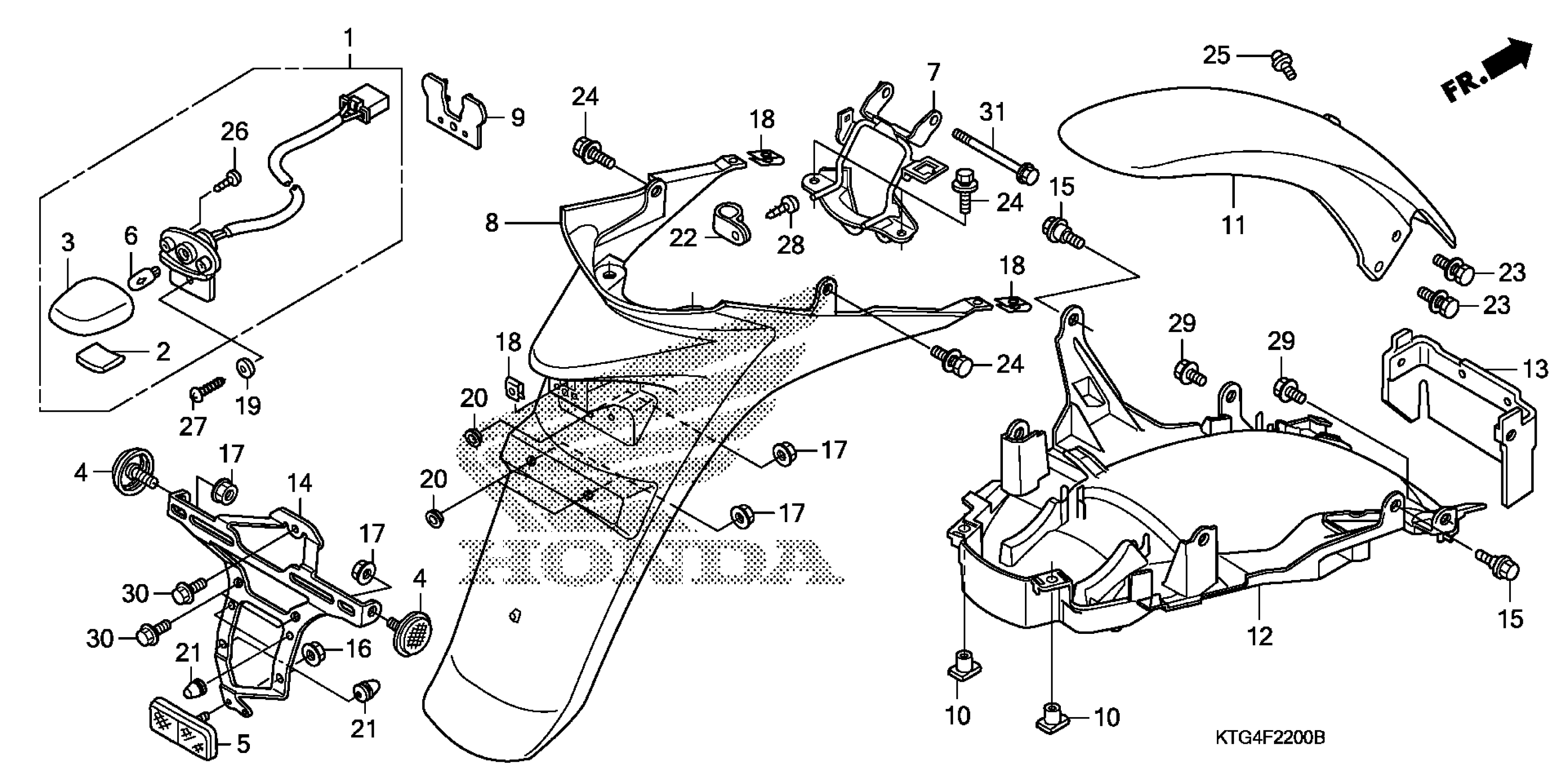

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 REAR FENDER Diagram

#

Description
Price

1

LIGHT ASSY., LICENSE (C00) (12V 5W)

33720-KTG-305

$18.47

2

LENS, LICENSE LIGHT (C00)

33721-KTG-305

$4.76

3

COVER, LICENSE LIGHT

33723-KTW-900

$7.87

4

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

5

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.92

6

BULB, POSITION (12V 5W) This part replaces 34901-S6D-G01.

34901-S6D-G01HE

$2.57

6

BULB, POSITION (12V 5W)

34901-S6D-G01HE

$2.57

6

BULB, POSITION (12V 5W) This part replaces 34908-KS3-900.

34901-S6D-G01HE

$2.57

7

STAY, RR. FENDER

50320-KTF-980

$18.57

8

FENDER A, RR.

80100-KTG-A10

$20.63

9

SPACER, LICENSE LIGHT

80102-KTG-A10

$2.46

10

NUT, RR. FENDER

80104-KJ2-000

$3.90

11

FENDER C, RR. *NH1* (BLACK)

80105-KPR-900ZA

$7.94

12

FENDER B, RR.

80106-KTF-980

$10.35

13

PLATE, SPLASH GUARD

80108-KTF-640

$3.41

14

BRACKET, NUMBER PLATE

84701-KTG-A10

$21.26

15

BOLT, FLANGE (6MM)

90111-162-000

$2.66

16

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.31

17

NUT, U (6MM)

90301-473-003

$3.89

18

NUT, SPRING (4MM)

90302-SA4-003

$5.32

19

WASHER, PLAIN (4X8)

90515-GN5-910

$1.15

19

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.15

20

WASHER, FR. FENDER SETTING

90556-044-000

Unavailable

21

PLUG, CONE TYPE

90899-422-610

$1.84

22

CLIP, WIRE HARNESS (6.3MM)

91475-SB6-000

$7.78

23

BOLT-WASHER (6X14)

93404-06014-07

$0.85

24

BOLT-WASHER (6X16)

93404-06016-00

$1.63

25

SCREW-WASHER (5X12)

93894-05012-07

$1.13

26

SCREW, TAPPING (3X10) (NOT AVAILABLE)

93901-32280

Unavailable

27

SCREW, TAPPING (4X20)

93901-34580

$0.62

28

SCREW, TAPPING (4X12)

93903-34380

$2.12

29

BOLT, FLANGE (6X8)

95701-06008-00

$3.10

30

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

31

BOLT, FLANGE (6X60)

95701-06060-00

$0.29
