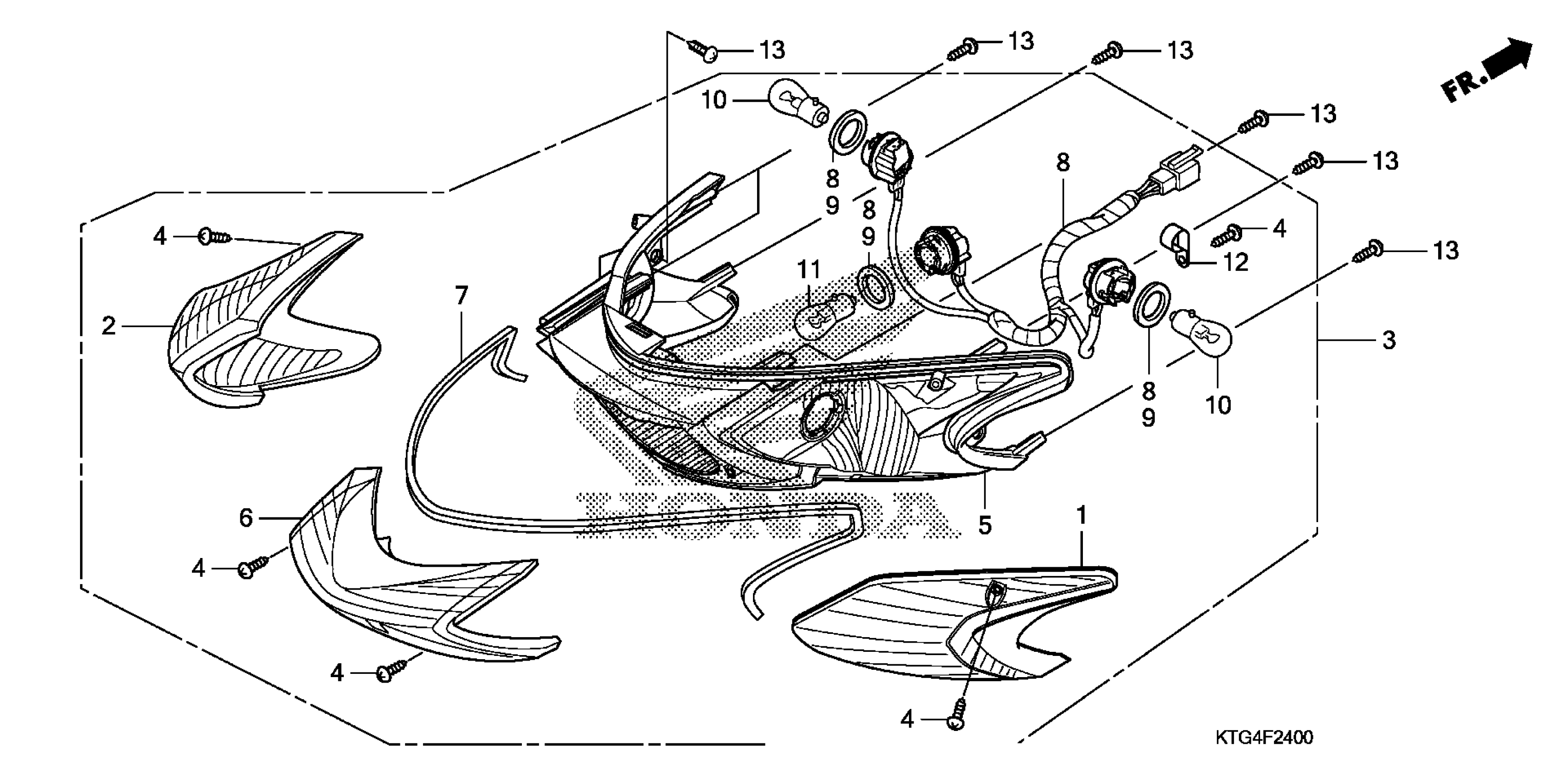

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 REAR COMBINATION LIGHT Diagram

#

Description

Price

1

LENS ASSY., R. RR. TURN SIGNAL (C00)

33612-KTG-305

Unavailable

2

LENS ASSY., L. RR. TURN SIGNAL (C00)

33662-KTG-305

Unavailable

3

LIGHT ASSY., RR. COMBINATION (C00)

33700-KTG-305

$109.02

4

SCREW, TAPPING (3.9X13)

33701-KTF-981

$0.09

5

BASE, RR. COMBINATION

33703-KTF-981

$17.10

6

LENS, TAILLIGHT (C00)

33704-KTG-305

$7.44

7

GASKET, LENS

33707-KTF-980

$1.49

8

WIRE, RR. COMBINATION

33708-KTF-981

Unavailable

9

RUBBER, SEAL

33709-KTF-980

$1.49

10

BULB, TURN SIGNAL (12V 21W)

34905-MEJ-671

$4.17

11

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)

34906-447-711

$9.38

12

CLIP

90602-KGF-900

$2.25

13

SCREW, TAPPING (4X12)

93903-34310

$1.49
