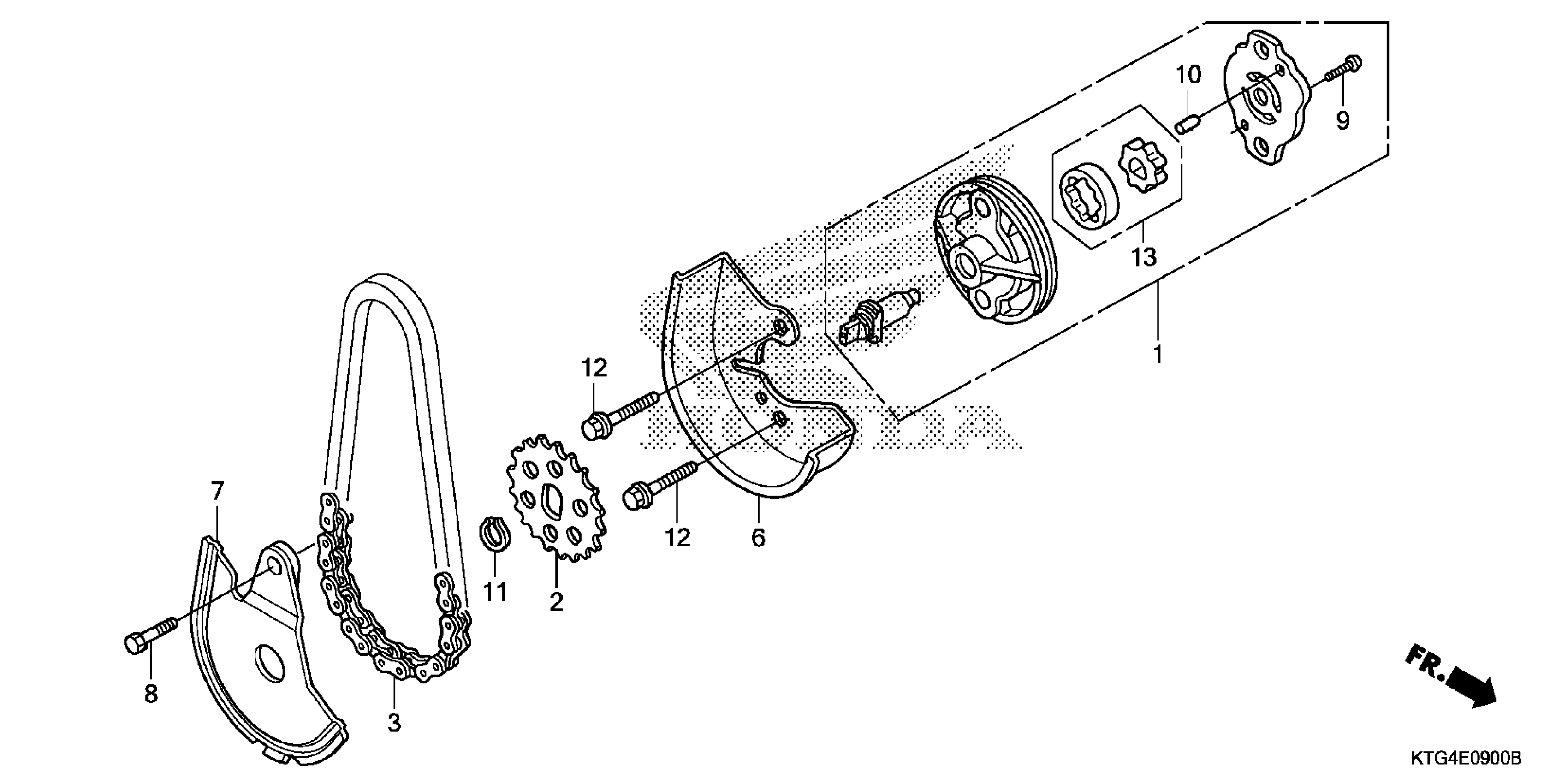

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-KCW-850

$45.10

2

SPROCKET, OIL PUMP DRIVEN (27T)

15133-KGF-910

$80.39

3

CHAIN, OIL PUMP DRIVE (48L)

15141-KGF-911

$17.62

4

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-436-000

Unavailable

5

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-436-000

Unavailable

6

SEPARATOR A, OIL

15711-KGF-910

$2.98

7

SEPARATOR B, OIL

15712-KGF-910

$2.82

8

BOLT, HEX. (6X14)

92201-06014-0A

$1.49

9

SCREW, PAN (3X12)

93500-03012-0A

$1.49

9

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

10

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

11

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

12

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

13

ROTOR SET, OIL PUMP

15021-436-000

$34.10
