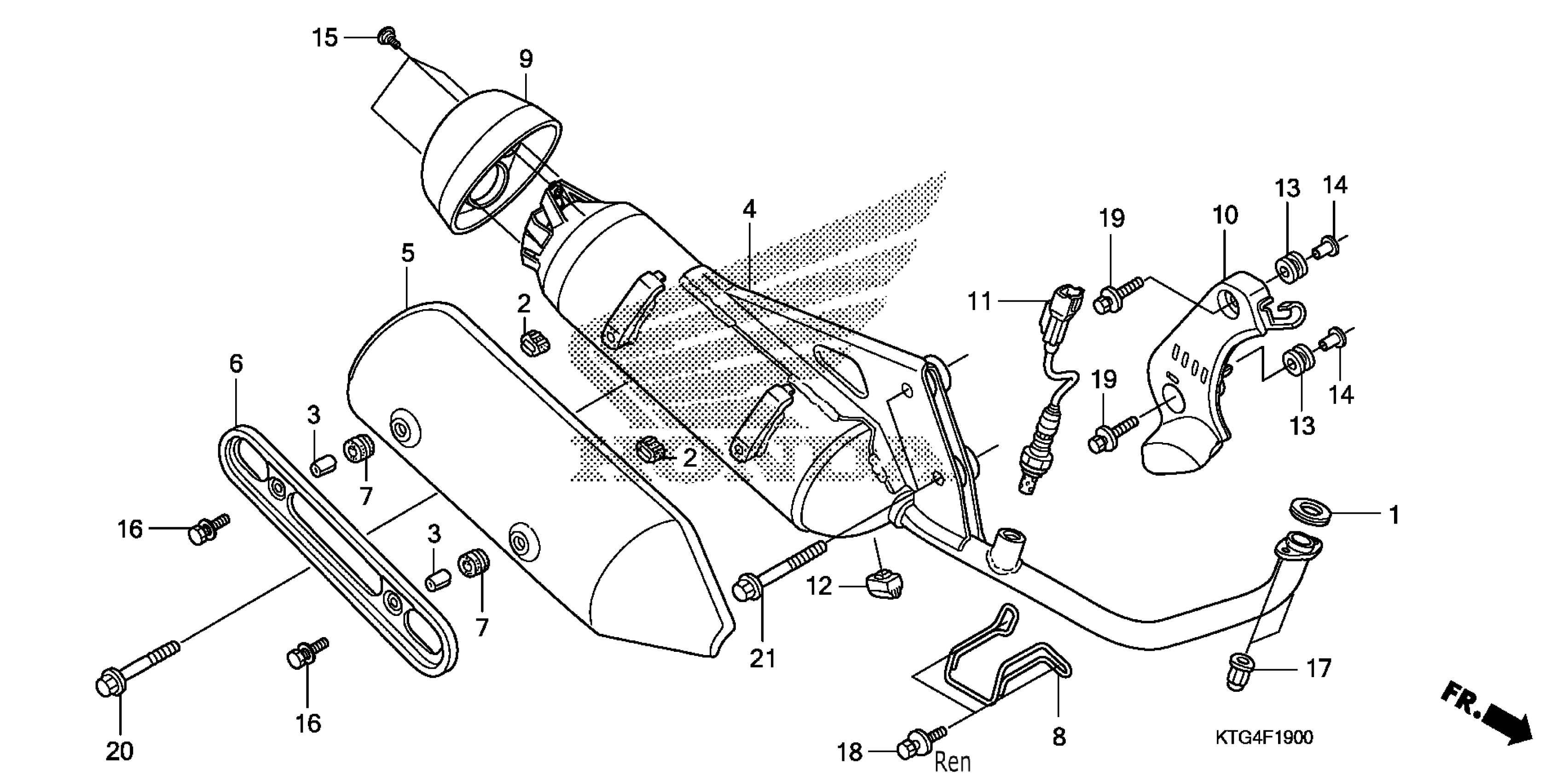

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-KPZ-900

Unavailable

2

RUBBER, PROTECTOR

18293-MN0-000

$1.94

3

COLLAR (5MM)

18295-GW0-920

$2.58

4

MUFFLER, EX. (C00)

18300-KTG-305

$599.61

5

PROTECTOR, MUFFLER (C00)

18318-KTG-305

Unavailable

6

PROTECTOR, MUFFLER (C00)

18319-KTG-305

$33.78

7

RUBBER A, PROTECTOR

18320-196-000

$2.43

8

PROTECTOR, EX. PIPE

18325-KTF-640

$16.20

9

COVER, TAIL CAP

18327-KTG-A10

$6.61

10

COVER, SENSOR (O2)

18336-KTF-640

$5.58

11

SENSOR, OXYGEN

36531-KTF-641

$151.68

12

RUBBER, STAND STOPPER

50505-GR1-000

$4.47

13

RUBBER, SIDE COVER

83545-KCJ-690

$1.28

14

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.80

15

SCREW, PAN (6X14)

90106-KBV-000

$3.64

16

BOLT-WASHER (5X16)

90131-KRJ-900

$0.88

17

NUT, CAP (7MM)

90304-MJ0-920

$4.60

18

BOLT-WASHER (6X16)

93404-06016-07

$1.48

19

BOLT-WASHER (6X25)

93414-06025-07

$1.04

20

BOLT, FLANGE (10X40)

95701-10040-07

$1.72

21

BOLT, FLANGE (10X60)

95701-10060-07

$1.93
