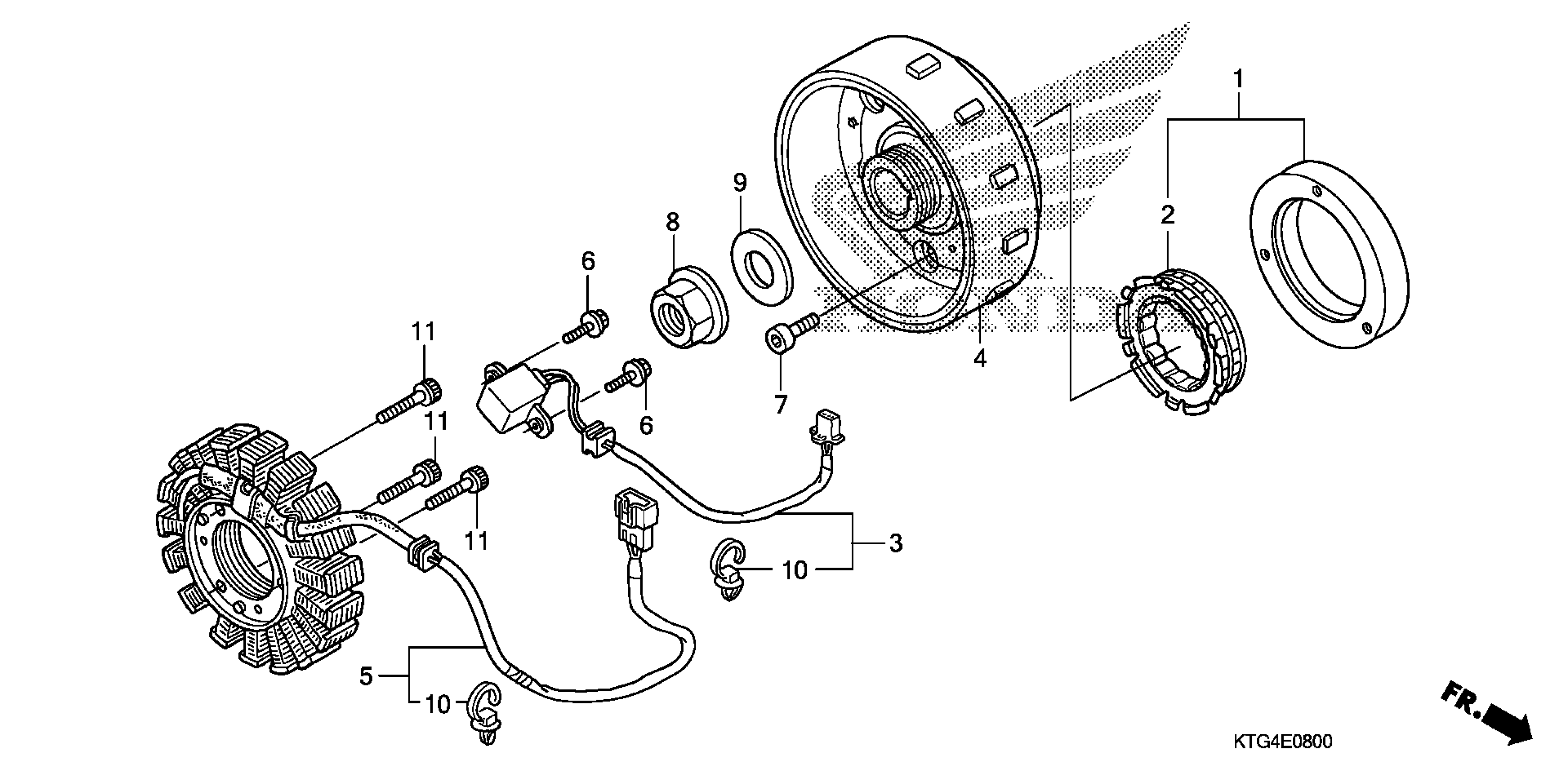

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 GENERATOR Diagram

CLUTCH ASSY., STARTER ONE-WAY

28125-KGF-911

$151.88

CLUTCH, ONE-WAY

28126-KGF-911

$54.19

GENERATOR ASSY., PULSE

30300-KTF-640

$48.85

FLYWHEEL

31110-KRJ-901

$184.96

STATOR

31120-KTF-640

$193.46

BOLT, FLANGE (5X16)

90005-896-000

$2.18

BOLT, SOCKET (8X18)

90010-HF1-670

$3.69

NUT, FLANGE (16X1.0)

90203-KRJ-791

$3.90

WASHER (16MM)

90501-GBM-750

$0.94

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.78

BOLT, SOCKET (6X28) (NOT AVAILABLE)

96700-06028-00

$3.87
