Description

Price

1

REFLECTOR, FR. REFLEX (AMBER)

33742-HB9-641

$12.08

2

FORK ASSY., R. FR. (C00)

51400-KTG-305

$192.68

3

SPRING, FR. FORK

51401-KTF-641

$19.44

4

PIPE, FR. FORK

51410-KTF-641

$65.18

5

RING, BACK-UP

51412-GC4-731

$7.75

6

SPRING, REBOUND

51412-KFG-003

$5.97

7

CASE, R. (LOWER)

51420-KTF-641

$135.87

8

DUST SEAL

51425-KL8-901

$11.41

9

PIECE, OIL LOCK

51432-KTF-641

$20.00

10

RING, PISTON

51437-KFG-003

$5.13

11

CAP, FORK PIPE

51449-KFG-003

$4.09

12

SEAT, SPRING (UPPER)

51454-KFG-003

$10.99

13

RING, STOPPER (29.8X1.2)

51456-KFG-003

$1.96

14

PIPE, SEAT

51470-KTF-B21

$37.00

15

SEAL SET, FR. FORK

51490-KL8-900

$20.33

16

FORK ASSY., L. FR. (C00)

51500-KTG-305

$125.66

17

CASE, L. (LOWER)

51520-KTF-641

$71.69

18

STAY, FR. REFLECTOR

61104-KPB-670

$5.70

19

BOLT, SOCKET (8X27)

90116-383-721

Unavailable

20

NUT, U (6MM)

90301-473-003

$3.89

21

NUT, HEX. (5MM)

90302-435-761

$2.06

22

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

23

RING, OIL SEAL STOP

90601-369-000

$3.31

24

O-RING (23.3X2.4)

91356-KFG-003

$2.34

25

SCREW-WASHER (5X20)

93891-05020-00

$0.97

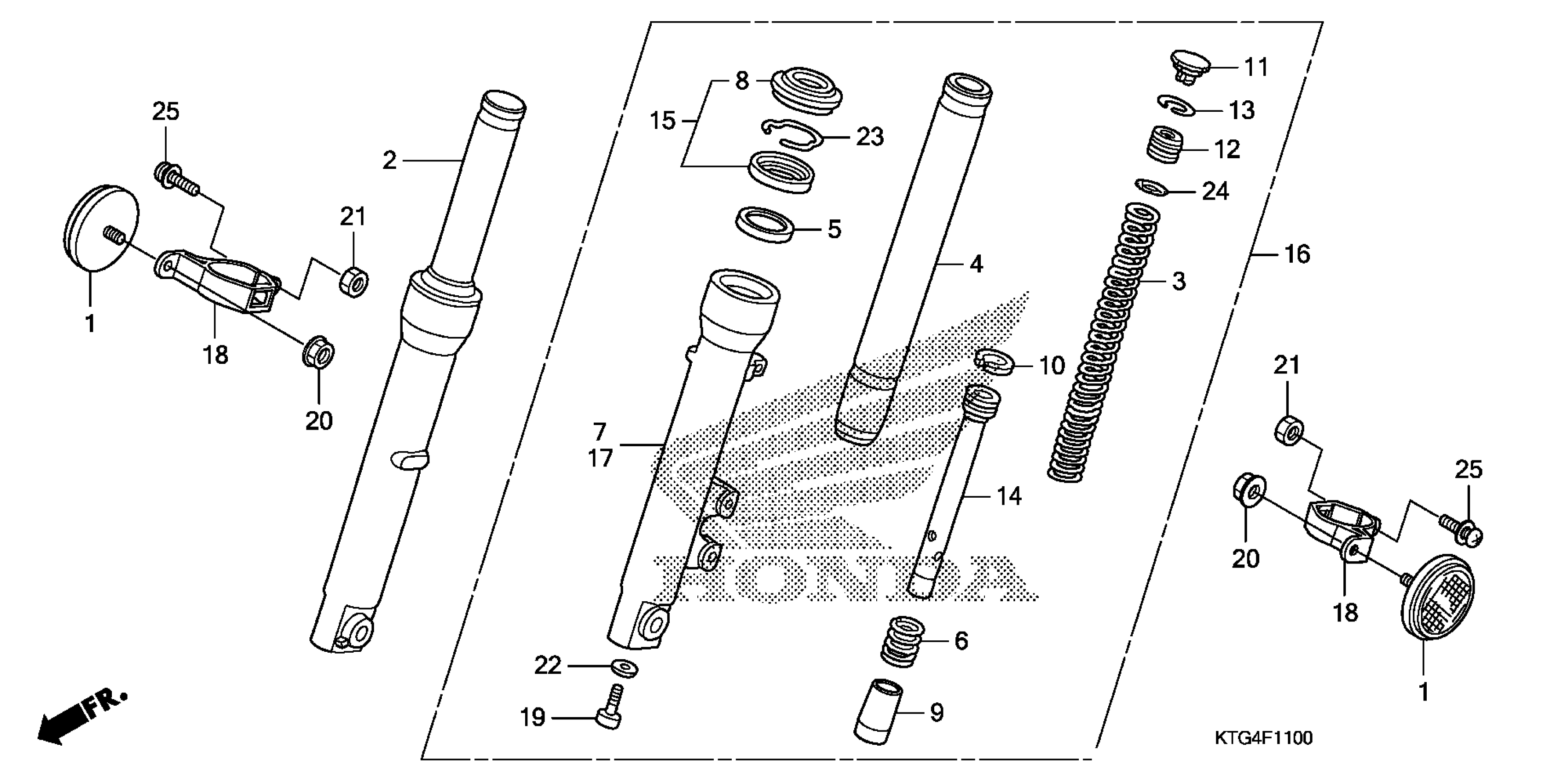

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 FRONT FORK Diagram
