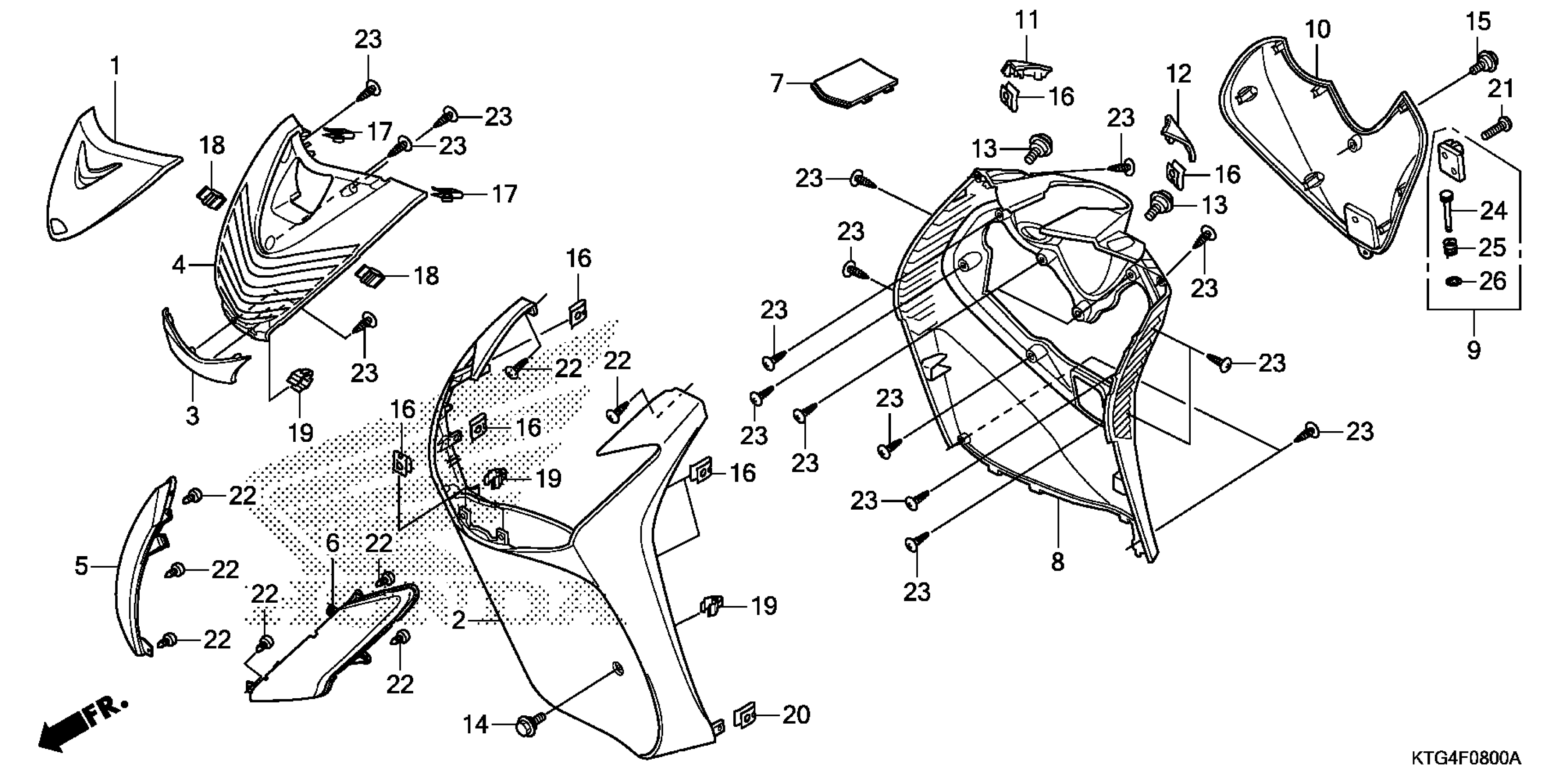

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 FRONT COVER Diagram

#

Description
Price

1

COVER SET, FR. *NHA84P* (WL) (PEARL NIGHTSTAR BLACK) | Pearl nightstar black NHA84P;

64300-KTG-A10ZA

$138.75

1

COVER SET, FR. *R302M* (WL) (VELVET RED METALLIC) | Velvet red metallic R302M;

64300-KTG-A10ZB

$129.66

2

COVER, FR. (LOWER) *NHA84P* (PEARL NIGHTSTAR BLACK) | Pearl nightstar black NHA84P;

64302-KTF-980ZC

$194.96

2

COVER, FR. (LOWER) *R302M* (VELVET RED METALLIC) | Velvet red metallic R302M;

64302-KTF-980ZE

$312.93

3

GRILL, FR.

64305-KTF-980

$18.57

4

LOUVER, FR. *NH1* (BLACK)

64306-KTF-980ZA

$14.18

5

GARNISH, R. FR. COVER *NHB18M* (MAT TECHNO SILVER METALLIC)

64307-KTG-A10ZA

$95.18

6

GARNISH, L. FR. COVER *NHB18M* (MAT TECHNO SILVER METALLIC)

64308-KTG-A10ZA

$88.54

7

COVER, NECK GUARD *NH1* (BLACK)

64313-KTF-980ZA

$3.01

8

COVER (INNER) *NH1* (BLACK)

81131-KTF-980ZA

$28.41

9

HOOK, LUGGAGE This part replaces 81132-KGF-900.

81132-KTF-670

$14.40

9

HOOK, LUGGAGE

81132-KTF-670

$14.40

10

PANEL, COVER (INNER) *NHA84P* (PEARL NIGHTSTAR BLACK) | Pearl nightstar black NHA84P;

81151-KTF-980ZC

$64.50

10

PANEL, COVER (INNER) *R302M* (VELVET RED METALLIC) | Velvet red metallic R302M;

81151-KTF-980ZE

$63.31

11

GARNISH, R. (INNER) *NHA84P* (PEARL NIGHTSTAR BLACK) | Pearl nightstar black NHA84P;

81161-KTF-980ZC

$24.10

11

GARNISH, R. (INNER) *R302M* (VELVET RED METALLIC) | Velvet red metallic R302M;

81161-KTF-980ZE

$24.07

12

GARNISH, L. (INNER) *NHA84P* (PEARL NIGHTSTAR BLACK) | Pearl nightstar black NHA84P;

81162-KTF-980ZC

$24.10

12

GARNISH, L. (INNER) *R302M* (VELVET RED METALLIC) | Velvet red metallic R302M;

81162-KTF-980ZE

Unavailable

13

SCREW (6X13)

90105-GBG-000

$1.68

14

BOLT, FLANGE (6MM)

90111-162-000

$2.66

15

SCREW, SPECIAL (6X10)

90165-KTF-980

$2.22

16

NUT, SPRING (4MM)

90302-SA4-003

$5.32

17

NUT, SPRING (6MM)

90320-747-000

$2.16

18

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.76

19

CLIP, SNAP FITTING

90666-S84-A01

$0.59

20

NUT, CLIP (5MM)

90677-GR1-003

$4.28

21

SCREW, PAN (4X12)

93500-04012-0G

$0.90

22

SCREW, TAPPING (4X12)

93903-34310

$0.82

23

SCREW, TAPPING (4X12)

93903-34380

$2.12

24

PIN, HOOK

81136-KTF-670

$1.54

25

SPRING, HOOK

81137-KTF-670

$0.71

26

CIRCLIP

81138-KTF-670

$0.54
