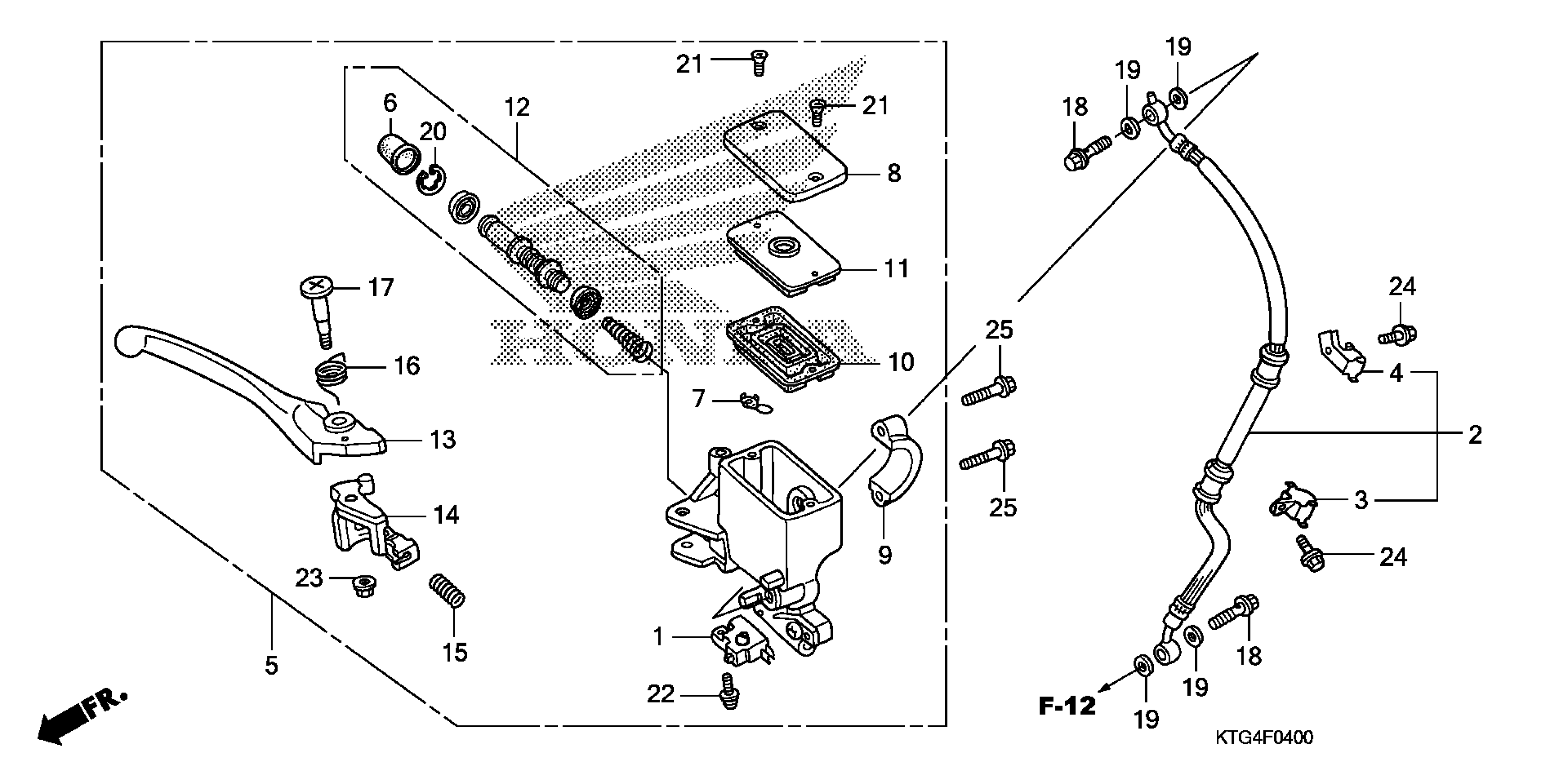

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

HOSE, FR. BRAKE

45126-KTF-641

$68.44

CLAMP B, BRAKE HOSE

45127-KPR-900

$12.89

CLAMP, BRAKE HOSE

45128-KPR-900

$7.61

MASTER CYLINDER, FR. This part replaces 45500-KTG-305.

45500-KPR-901

$290.66

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER, R. HANDLEBAR This part replaces 53175-KTG-305.

53175-GCS-006

$18.82

KNOCKER

53190-KPR-900

$23.07

SPRING, RETURN

53198-GBL-870

$2.39

SPRING, BRAKE LEVER RETURN

53199-GCS-010

$2.54

BOLT, HANDLE LEVER

90114-GBL-871

$2.92

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
