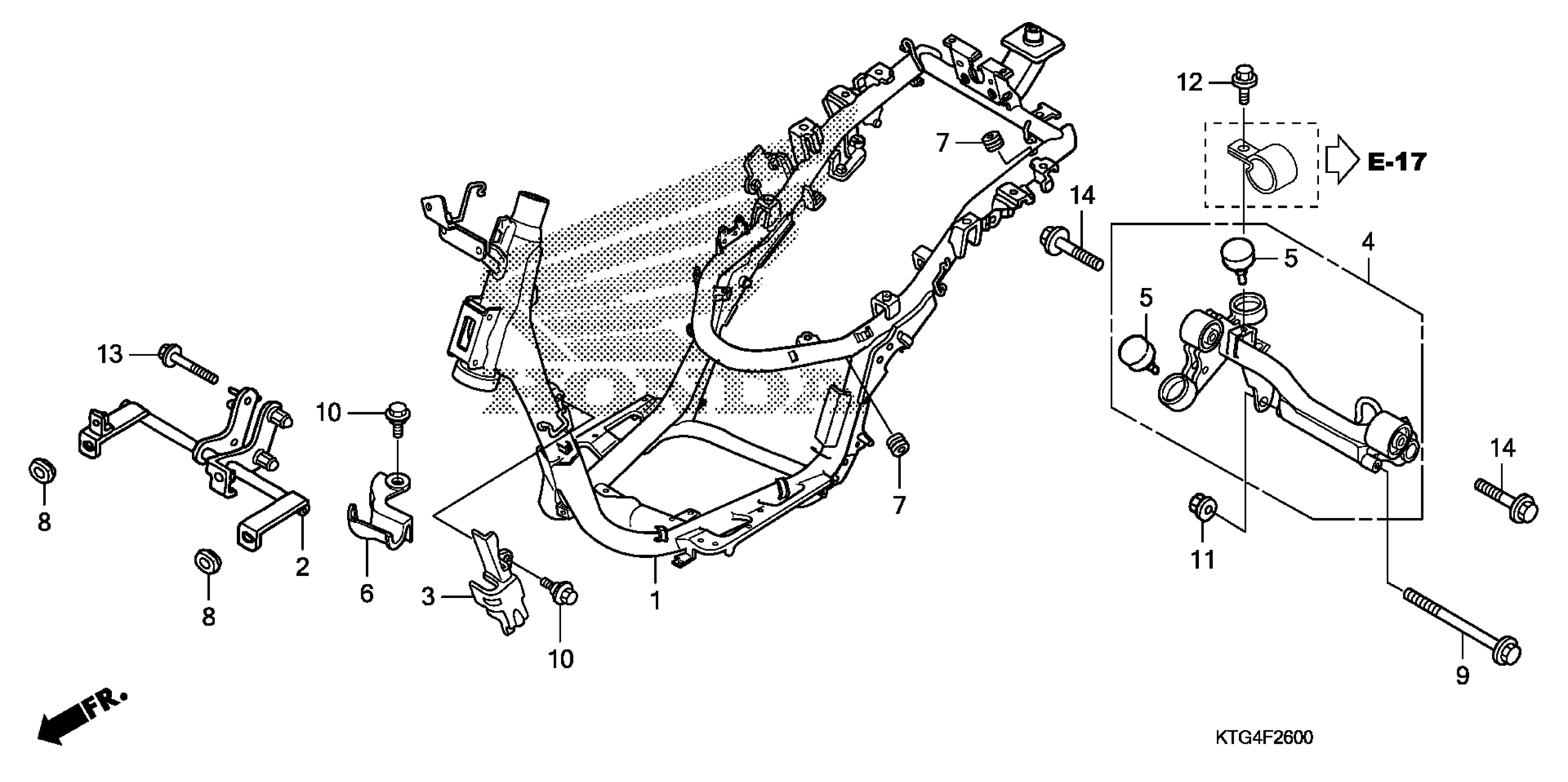

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 FRAME Diagram

#

Description
Price

1

FRAME

50100-KTF-B20

$802.91

2

STAY, RADIATOR (LOWER)

50230-KTF-980

$24.99

3

GUARD, CABLE

50315-KTF-640

$1.70

4

HANGER, ENGINE

50350-KTF-642

$105.06

5

RUBBER, STOPPER

50352-KGF-900

$2.29

6

GUIDE, HARNESS

50615-KTF-980

$4.91

7

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$3.95

8

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

9

BOLT, FLANGE (10X208)

90105-MBZ-610

$7.91

10

BOLT, FLANGE (6MM)

90111-162-000

$2.62

11

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

12

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

13

BOLT, FLANGE (6X50)

95801-06050-00

Unavailable

14

BOLT, FLANGE (10X50)

95801-10050-00

$5.63
