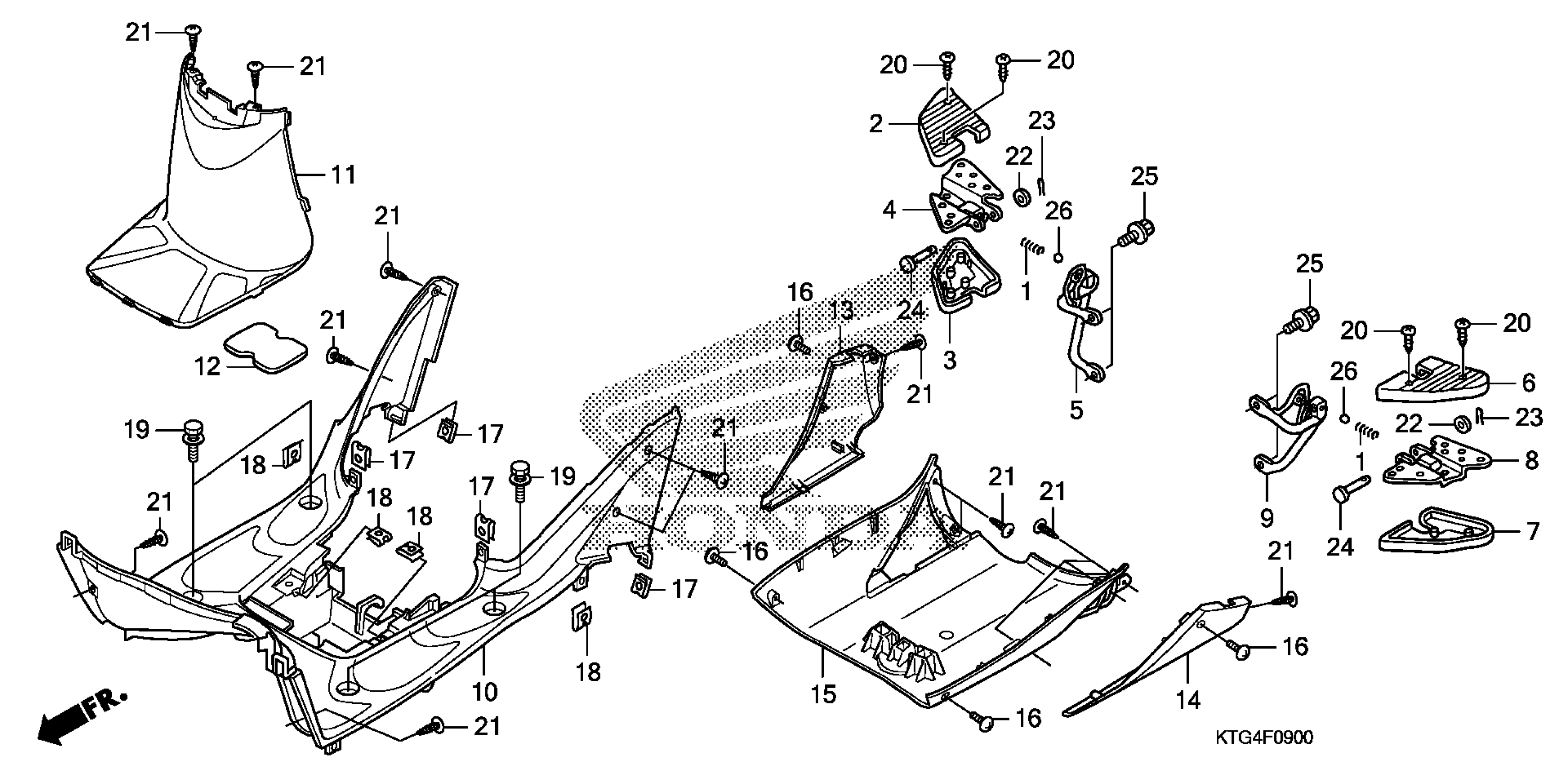

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 FLOOR PANEL + PILLION STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

RUBBER, R. PILLION STEP

50711-KTF-640

$13.76

3

COVER, R. PILLION STEP *NHA60MR* (DIAMOND SILVER METALLIC-R)

50712-KTF-640ZA

$2.91

4

PLATE, R. PILLION STEP

50713-KTF-640

$10.10

5

STAY, R. PILLION STEP

50715-KTF-980

$30.69

6

RUBBER, L. PILLION STEP

50721-KTF-640

$17.31

7

COVER, L. PILLION STEP *NHA60MR* (DIAMOND SILVER METALLIC-R)

50722-KTF-640ZA

$2.91

8

PLATE, L. PILLION STEP

50723-KTF-640

$8.74

9

STAY, L. PILLION STEP

50725-KTF-980

$63.00

10

STEP, FLOOR *NH1* (BLACK)

64310-KTF-980ZA

$30.38

11

LID, MAINTENANCE *NH1* (BLACK)

64311-KTF-980ZA

$10.82

12

CUSHION, BATTERY

64316-KPR-900

$2.74

13

COVER, R. (LOWER) *NHA60MR* (DIAMOND SILVER METALLIC-R)

64321-KTF-980ZA

$8.09

14

COVER, L. (LOWER) *NHA60MR* (DIAMOND SILVER METALLIC-R)

64322-KTF-980ZA

$8.37

15

COVER (LOWER) *NH1* (BLACK)

64331-KTF-980ZA

$16.93

16

SCREW, TRUSS (5X16)

90109-SB6-000

$5.92

17

NUT, SPRING (4MM)

90302-SA4-003

$5.32

18

NUT, CLIP (5MM)

90677-GR1-003

$4.28

19

BOLT-WASHER (6X20)

93404-06020-07

$1.63

20

SCREW, TAPPING (4X12)

93901-24380

$0.90

21

SCREW, TAPPING (4X12)

93903-34380

$2.12

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM)

94101-06800

Unavailable

23

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

23

PIN, COTTER (1.6X25)

94201-16250

$1.01

24

PIN A, PILLION STEP

95015-81000

$2.04

25

BOLT, FLANGE (8X16)

95701-08016-00

$1.79

26

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
