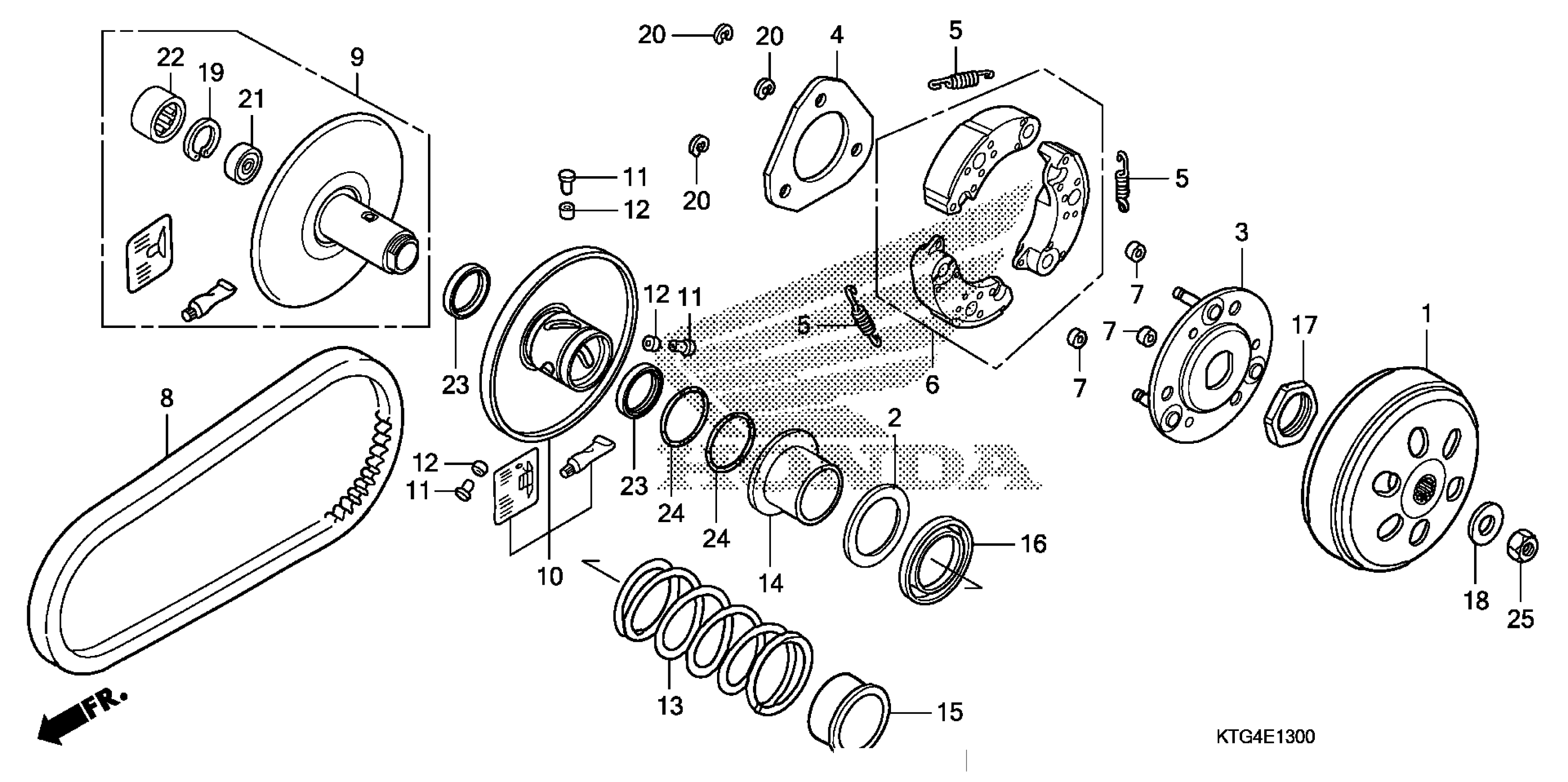

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 DRIVEN FACE Diagram

CLUTCH OUTER

22101-KCW-850

$69.72

SEAT, DRIVEN SPRING

22109-KGF-910

$6.34

PLATE, DRIVE

22350-KGF-911

$62.33

PLATE, CLUTCH SIDE

22361-KGF-910

$56.75

SPRING, CLUTCH

22401-KGG-910

$6.40

WEIGHT SET, CLUTCH

22535-KTF-980

$163.64

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

BELT, DRIVE

23100-KGG-911

$79.69

FACE SET, DRIVEN

23205-KGF-911

$87.36

FACE SET, MOVABLE DRIVEN

23224-KGG-911

$110.34

PIN, ROLLER GUIDE

23225-KGF-911

$1.49

ROLLER, GUIDE

23226-GC8-003

$4.48

SPRING, DRIVEN FACE

23233-KGF-911

$21.72

COLLAR, SEAL

23237-KGF-910

$9.21

COLLAR, SPRING

23238-KGF-910

$7.16

CAP, SPRING

23239-KGF-911

$2.97

NUT, SPECIAL (28MM)

90202-KGF-910

$10.18

WASHER (12.2X29X2.5)

90441-GY6-940

$2.80

CIRCLIP, INNER (28MM) This part replaces 90603-KGF-910.

94520-28000

$1.49

CIRCLIP (INNER) (28MM)

94520-28000

$1.49

CIRCLIP (7MM)

90605-166-720

$1.80

BEARING, RADIAL BALL (6902U) (NTN)

91002-GA7-701

$24.58

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

BEARING, NEEDLE (22X29X18)

91002-KFG-003

$11.38

SEAL, DRIVEN FACE (34X41X4)

91211-KN7-671

$6.36

O-RING (38.8X1.9)

91384-KRJ-901

$1.49

NUT, HEX. (12MM)

94030-12200

$1.66
