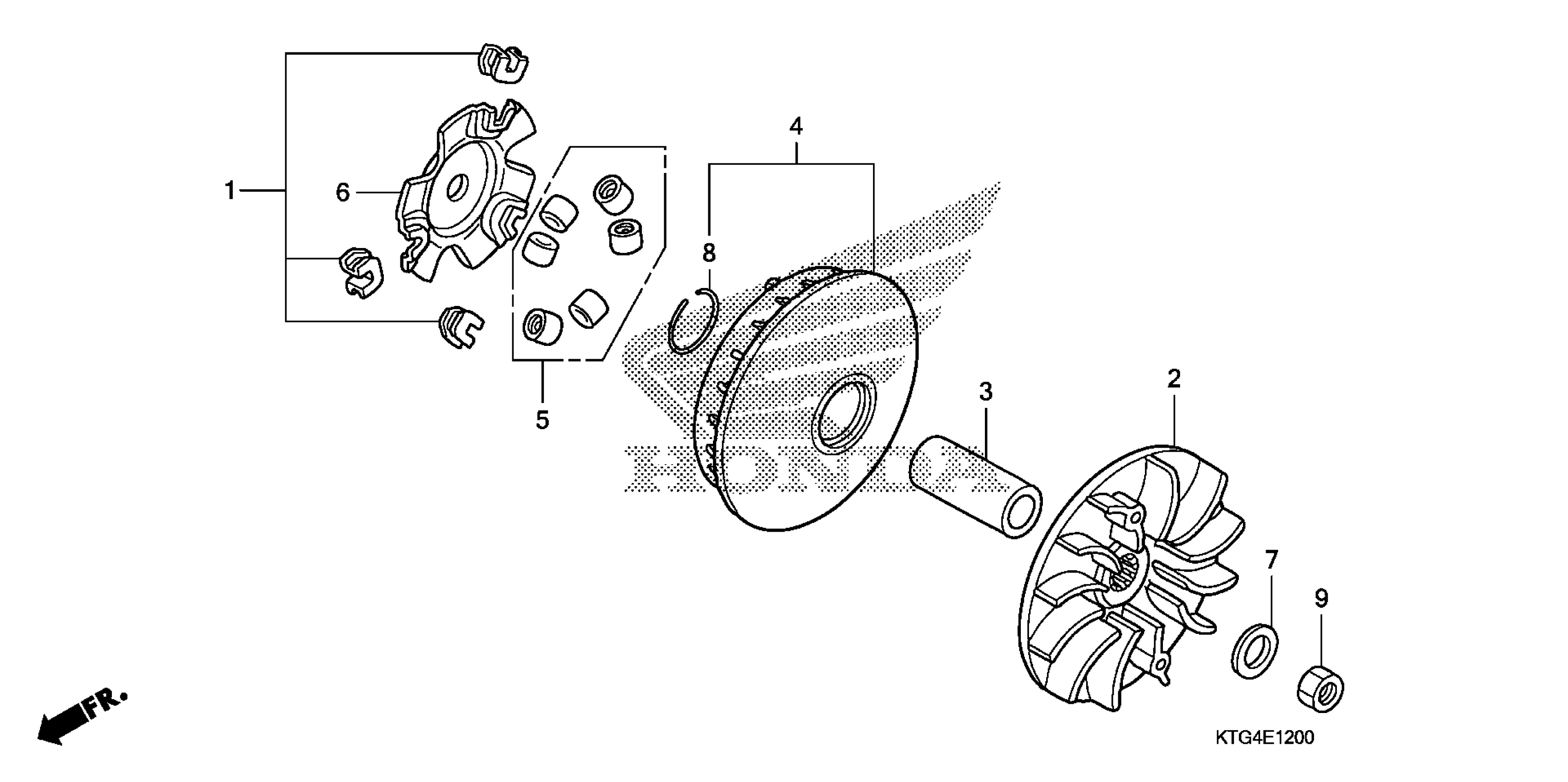

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 DRIVE FACE Diagram

#

Description
Price

1

PIECE SET, SLIDE

22011-KCW-851

$8.74

2

FACE, DRIVE

22102-KGF-910

$27.81

3

BOSS, DRIVE FACE

22105-KGG-910

$30.81

4

FACE, MOVABLE DRIVE

22110-KRK-900

$58.12

5

ROLLER SET, WEIGHT

22123-KRJ-900

$27.76

6

PLATE, RAMP

22131-KCW-850

$15.78

7

WASHER (12.2X29X2.5)

90441-GY6-940

$2.59

8

CLIP (28MM)

90601-KRJ-900

$0.35

9

NUT, HEX. (12MM)

94030-12200

$1.74
