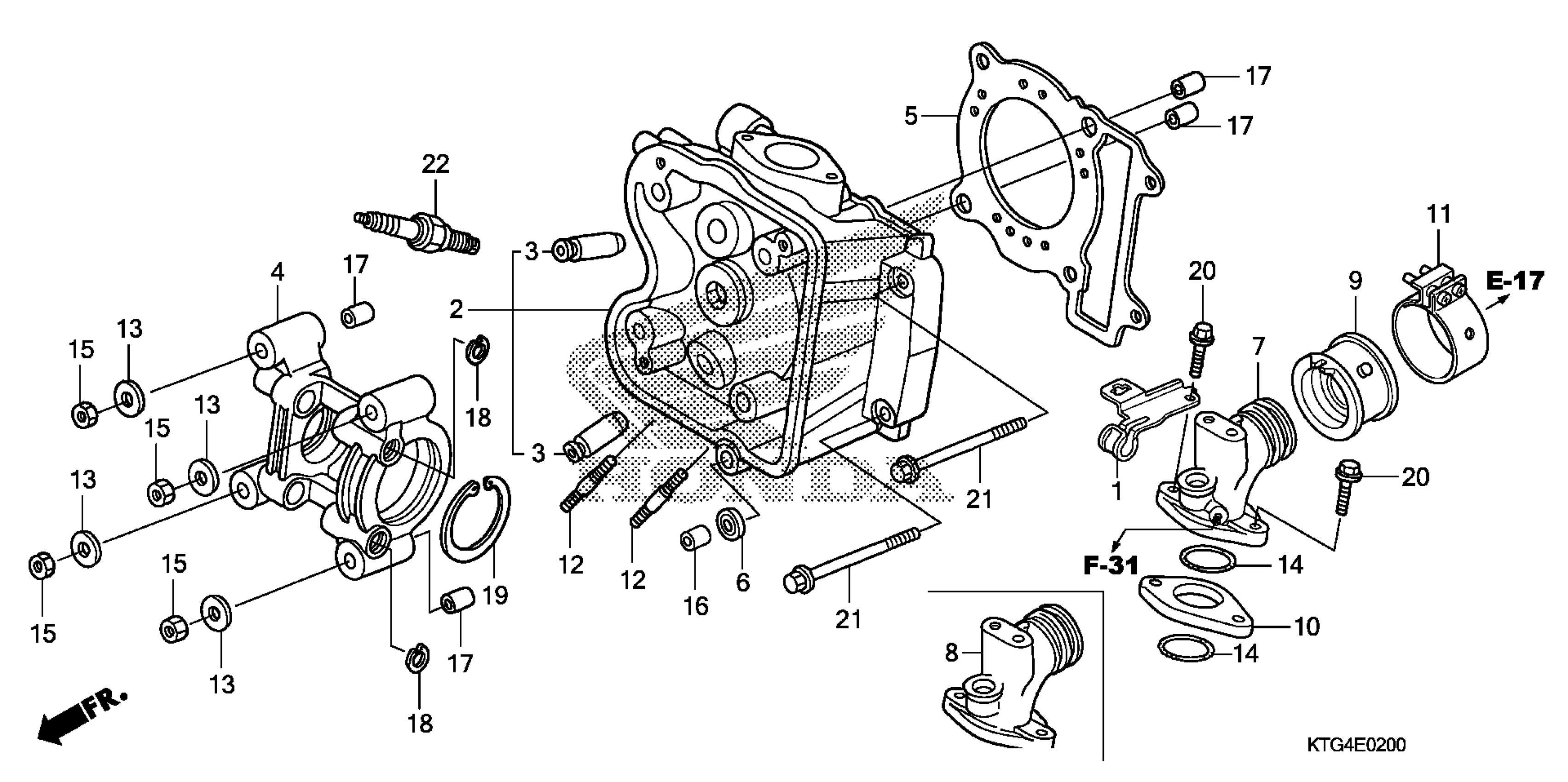

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 CYLINDER HEAD Diagram

#

Description
Price

1

CLAMP, BREATHER

11231-KTF-640

$2.60

2

CYLINDER HEAD

12200-KGG-910

Unavailable

3

GUIDE, VALVE (OS) This part replaces 12204-KE8-305.

12204-KE7-305

Unavailable

4

HOLDER, CAMSHAFT

12211-KGF-910

$67.19

5

GASKET, CYLINDER HEAD

12251-KGG-912

$14.53

6

GASKET C, HEAD COVER

12396-MBG-000

$4.71

8

PIPE, INLET

17111-KRJ-900

$27.68

9

INSULATOR, THROTTLE BODY

17112-KRJ-900

$5.39

10

INSULATOR, IN. PIPE

17119-KRJ-900

$7.66

11

BAND, INSULATOR

17256-KRJ-900

$22.79

12

BOLT, STUD (7X17)

90004-KGF-910

$1.96

13

WASHER (8MM)

90483-028-000

$1.40

14

O-RING (29X2)

91301-KRJ-901

$2.96

15

NUT, HEX. (8MM)

94030-08280

$0.85

16

PIN, DOWEL (10X12)

94301-10120

$2.80

17

PIN, DOWEL (10X16)

94301-10160

$2.80

18

CIRCLIP (INNER) (10MM) (NOT AVAILABLE)

94520-10000

Unavailable

19

CIRCLIP (INNER) (42MM)

94520-42000

$2.56

20

BOLT, FLANGE (6X30)

95701-06030-00

$1.88

21

BOLT, FLANGE (6X100)

95701-06100-00

$2.80

22

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$7.50
