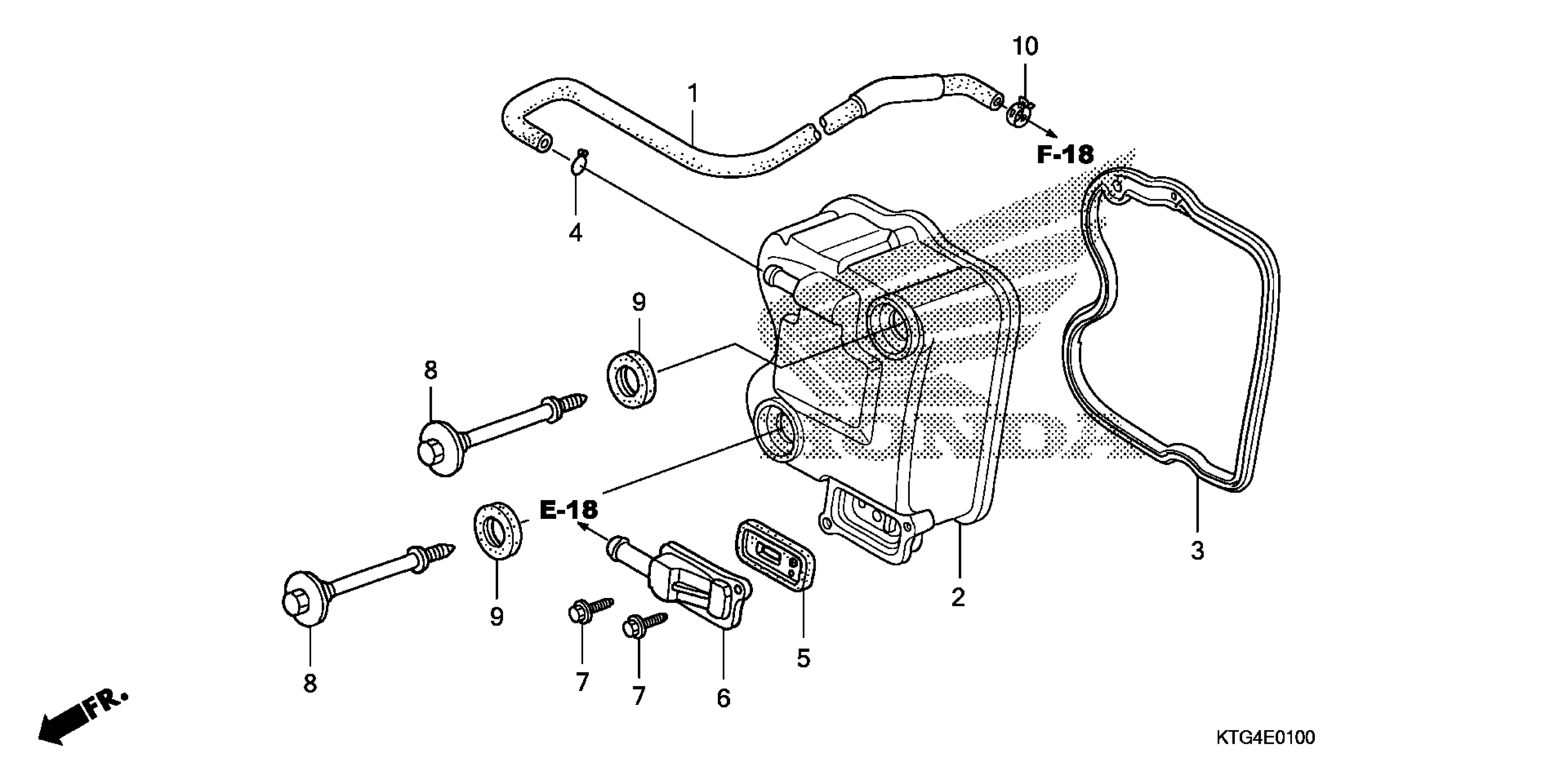

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

TUBE, BREATHER

11210-KTF-640

Unavailable

2

COVER, CYLINDER HEAD

12310-KRJ-901

$58.54

3

GASKET, HEAD COVER

12391-KGF-910

$9.54

4

CLIP, BREATHER TUBE

15772-292-010

$2.80

5

VALVE, REED

18601-KGB-611

$24.49

6

COVER, REED VALVE

18612-KGF-911

$14.01

7

BOLT, FLANGE (5X12)

90003-892-000

$1.13

8

BOLT, HEAD COVER

90017-KGF-900

$4.21

9

RUBBER, MOUNTING

90543-MV9-670

$4.71

10

CLAMP, CANISTER HOSE

90682-SA0-671

$7.32
