Description

Price

1

CRANKCASE, R.

11100-KRJ-900

$244.07

2

BUSH, ENGINE HANGER RUBBER

11102-187-003

$13.49

3

CRANKCASE, L.

11200-KTG-305

$277.94

4

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$9.55

5

PLATE, OIL SEAL STOPPER

11205-KGF-910

$11.65

6

ORIFICE (1.8MM)

11208-KGF-910

$4.70

7

CLAMP, TUBE

19623-KGF-910

$8.81

8

BOLT, SPECIAL (6X27)

90016-GAH-A00

$3.78

9

BOLT, CYLINDER STUD (8X200.5)

90031-KGF-910

Unavailable

10

BOLT, CYLINDER STUD (8X206.5)

90032-KGF-910

Unavailable

11

WASHER, SEALING (8MM)

90474-333-000

$3.08

12

BEARING, RADIAL BALL (6301TMB) (NTN)

91003-KS4-003

$24.36

13

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$36.31

14

OIL SEAL (20.8X53X9)

91202-GCC-771

$7.25

15

OIL SEAL (22X35X5)

91251-KM1-003

$6.48

16

PIN, DOWEL (8X20)

94301-08200

$2.04

17

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

18

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

19

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

20

BEARING, RADIAL BALL (6004)

96100-60040-00

$13.98

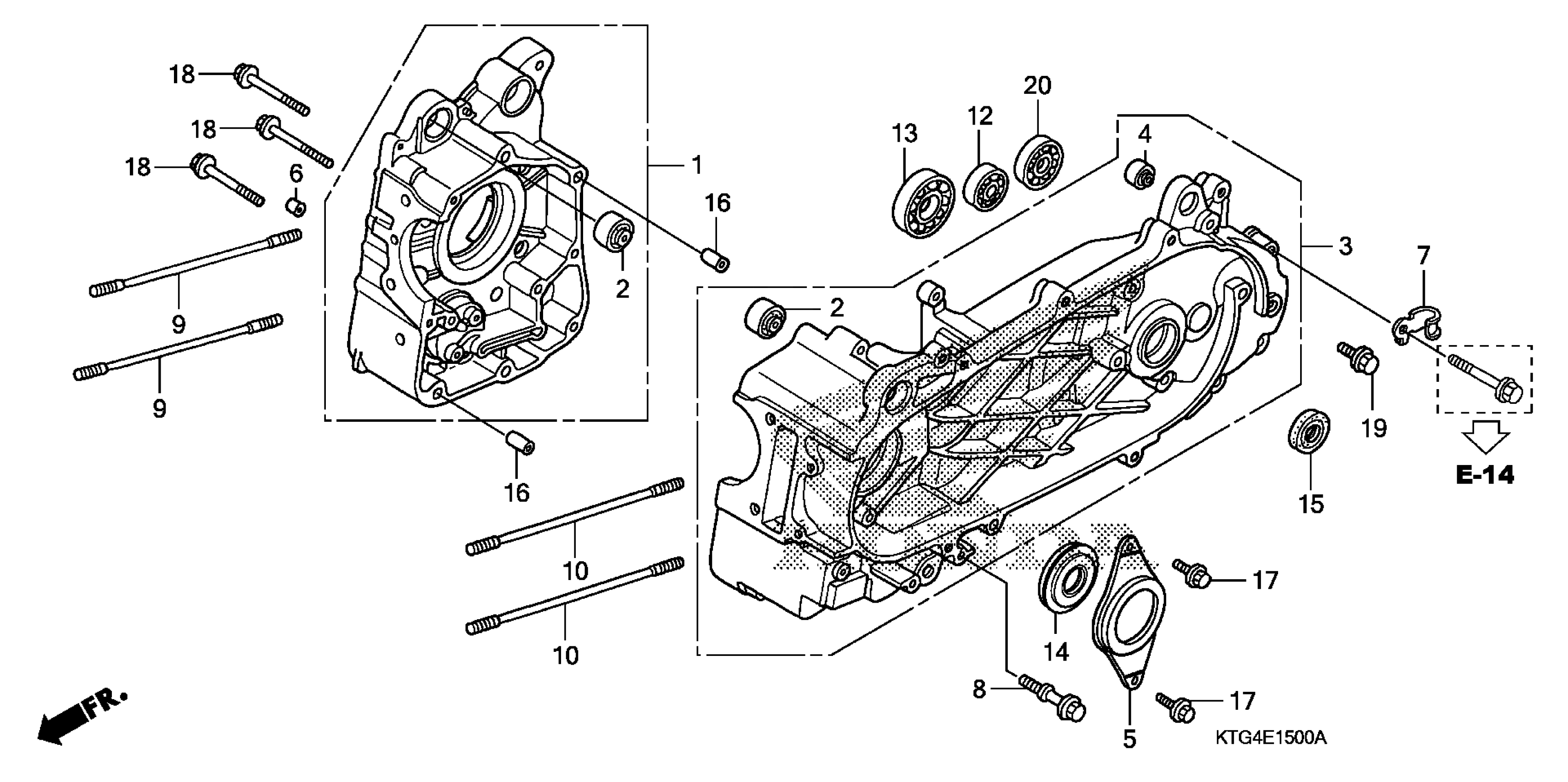

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 CRANKCASE Diagram
