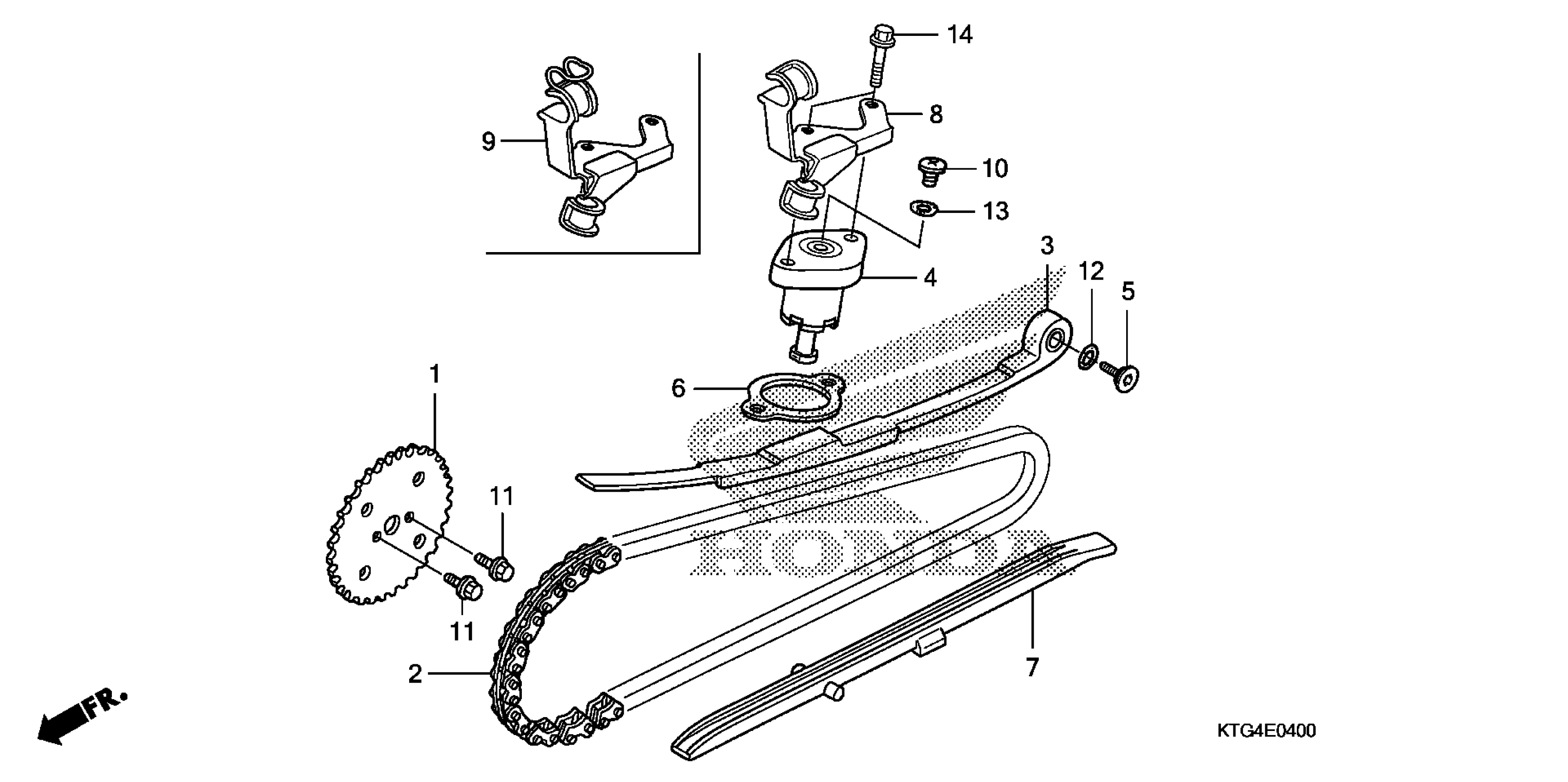

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (34T)

14321-KGF-910

$6.85

CHAIN, CAM (94L) (BORG WARNER)

14401-KRJ-901

$49.26

TENSIONER, CAM CHAIN

14510-KGF-910

$48.30

LIFTER ASSY., TENSIONER

14520-KRJ-901

$82.34

PIVOT, CAM CHAIN TENSIONER

14531-GCC-000

$3.08

GASKET, TENSIONER LIFTER

14560-KCW-851

$5.05

GUIDE, CAM CHAIN

14610-KGF-911

$22.07

CLAMP, BREATHER TUBE

19625-KTF-640

$9.26

SCREW, PAN (6X6)

90005-KY7-000

$3.24

BOLT, KNOCK (5MM)

90083-GB6-911

$2.20

O-RING (15.2X1.5)

91301-GR0-004

$2.70

O-RING (1.5X9.5)

91306-MG3-000

$2.33

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.33

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
