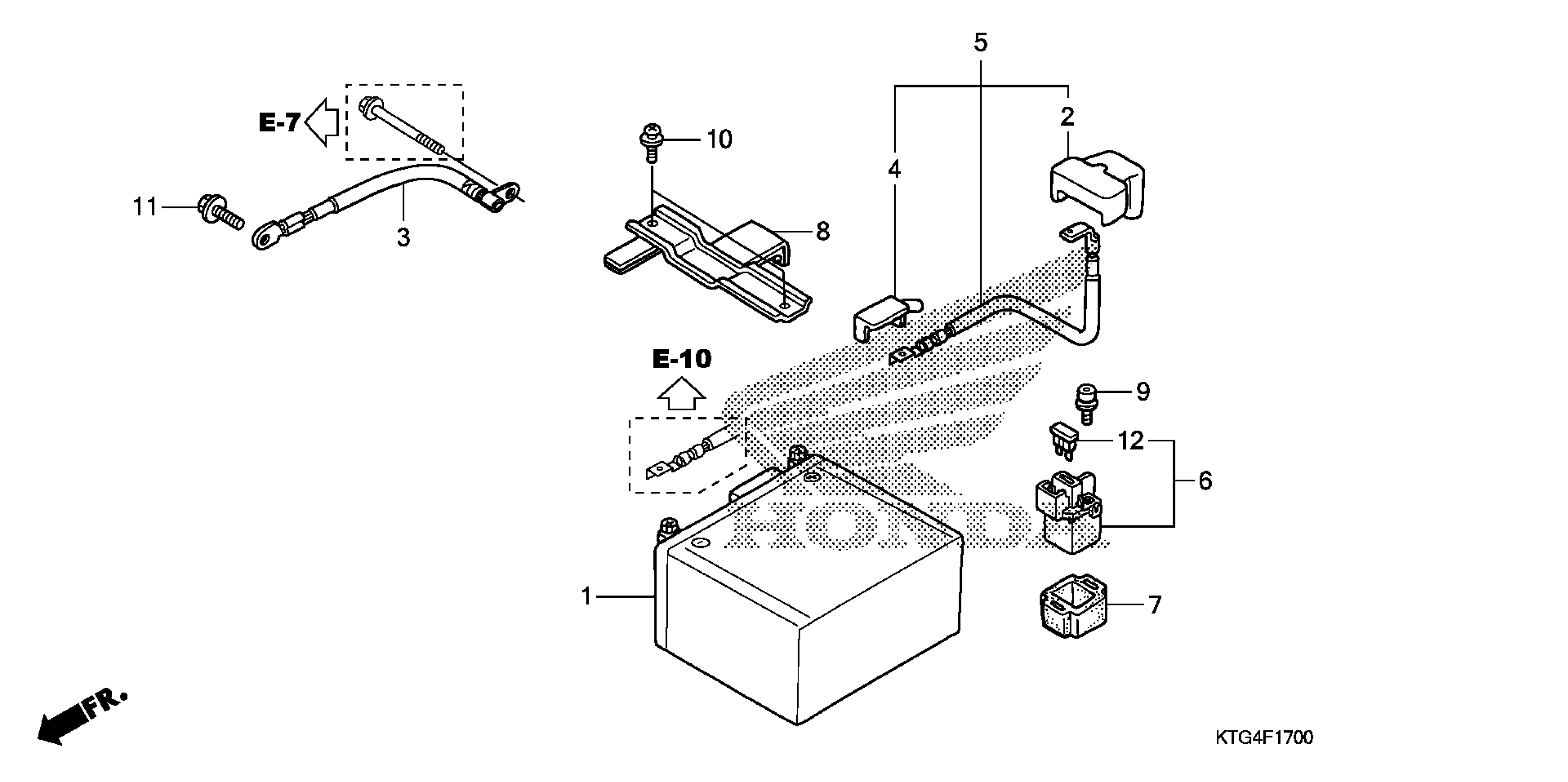

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 BATTERY Diagram

#

Description

Price

1

BATTERY (YTX7L-BS) (YUASA) (MSDS) This part replaces 31500-KW3-676.

31500-KW3-676AH

$76.28

1

BATTERY (YTX7L-BS) (YUASA) (MSDS)

31500-KW3-676AH

$76.28

1

BATTERY (YTX7L-BS) (YUASA) (MSDS) This part replaces 31500-KW3-677.

31500-KW3-676AH

$76.28

2

COVER, STARTER MAGNETIC TERMINAL

32406-KPR-901

$2.84

3

CABLE, ENGINE GROUND

32412-KPR-890

$32.15

4

COVER, BATTERY TERMINAL

32416-KPR-900

Unavailable

5

CABLE, STARTER BATTERY

32417-KTF-980

Unavailable

6

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$71.60

7

RUBBER, SHOCK

35856-KAB-000

$8.59

8

BAND, BATTERY

64315-KTF-980

$20.26

9

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

10

SCREW-WASHER (5X10)

93891-05010-08

$1.13

11

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

12

FUSE, BLADE (30A)

98200-33000

$1.21
