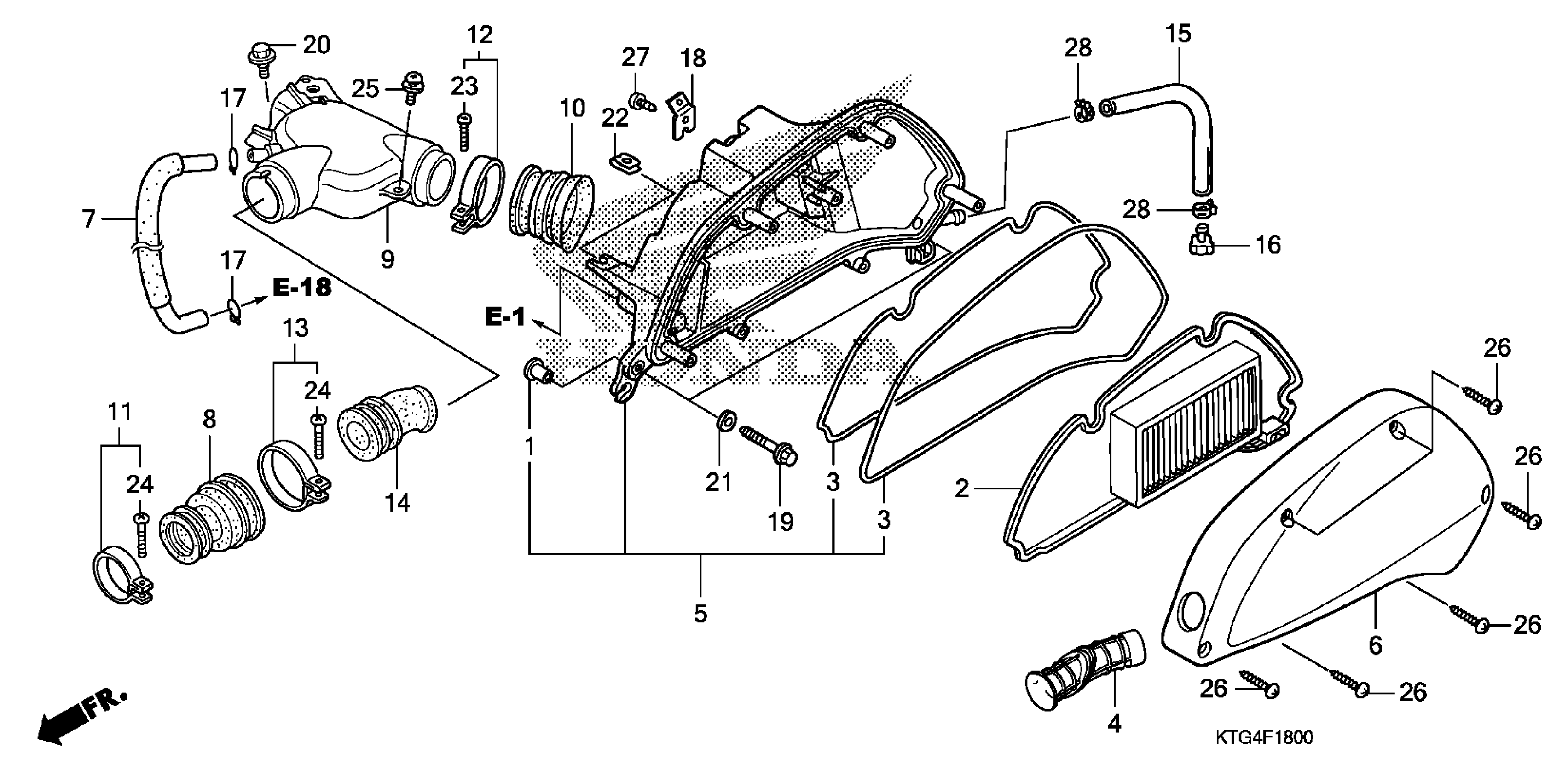

Honda SH150IA (10) SH150I, ITA, VIN# ZDCKF100-AF000001 AIR CLEANER Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.92

2

ELEMENT, AIR CLEANER

17210-KGF-901

$22.36

3

SEAL, AIR CLEANER

17212-KGF-900

$5.23

4

DUCT, AIR CLEANER

17213-KGF-901

$7.20

5

CASE SUB-ASSY., AIR CLEANER

17225-KTF-641

$23.33

6

COVER, AIR CLEANER

17231-KGF-901

$17.98

7

TUBE (AI)

17235-KGF-900

$10.84

8

TUBE, AIR CLEANER CONNECTING

17253-KTF-641

$6.82

9

CHAMBER, AIR CLEANER

17254-KTF-642

$40.38

10

JOINT, AIR CLEANER

17255-KGF-901

$7.26

11

BAND, AIR CLEANER CONNECTING TUBE (50)

17255-KRJ-900

Unavailable

12

BAND, AIR CLEANER CONNECTING TUBE (60)

17255-MY5-860

$3.54

13

BAND, AIR CLEANER CONNECTING TUBE (58)

17257-KGF-900

$3.18

14

FUNNEL, AIR

17260-KTG-641

$5.41

15

TUBE, DRAIN

17261-KGF-900

$2.18

16

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

18

STAY C, RR. FENDER

80107-KTF-640

$3.08

19

BOLT (6X30)

90104-GAV-701

$2.05

20

BOLT, FLANGE (6MM)

90111-187-000

$5.59

21

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

22

NUT, CLIP (5MM)

90677-GR1-003

$4.27

23

SCREW, PAN (4X20)

93500-04020-0A

$1.49

24

SCREW, PAN (4X25)

93500-04025-0A

$1.93

25

SCREW-WASHER (5X12)

93894-05012-07

$1.49

26

SCREW, TAPPING (5X25)

93903-255J0

$1.77

27

SCREW, TAPPING (5X16)

93903-35380

$1.49

28

CLAMP, TUBE (D10.5)

95002-41050-00

$1.85
