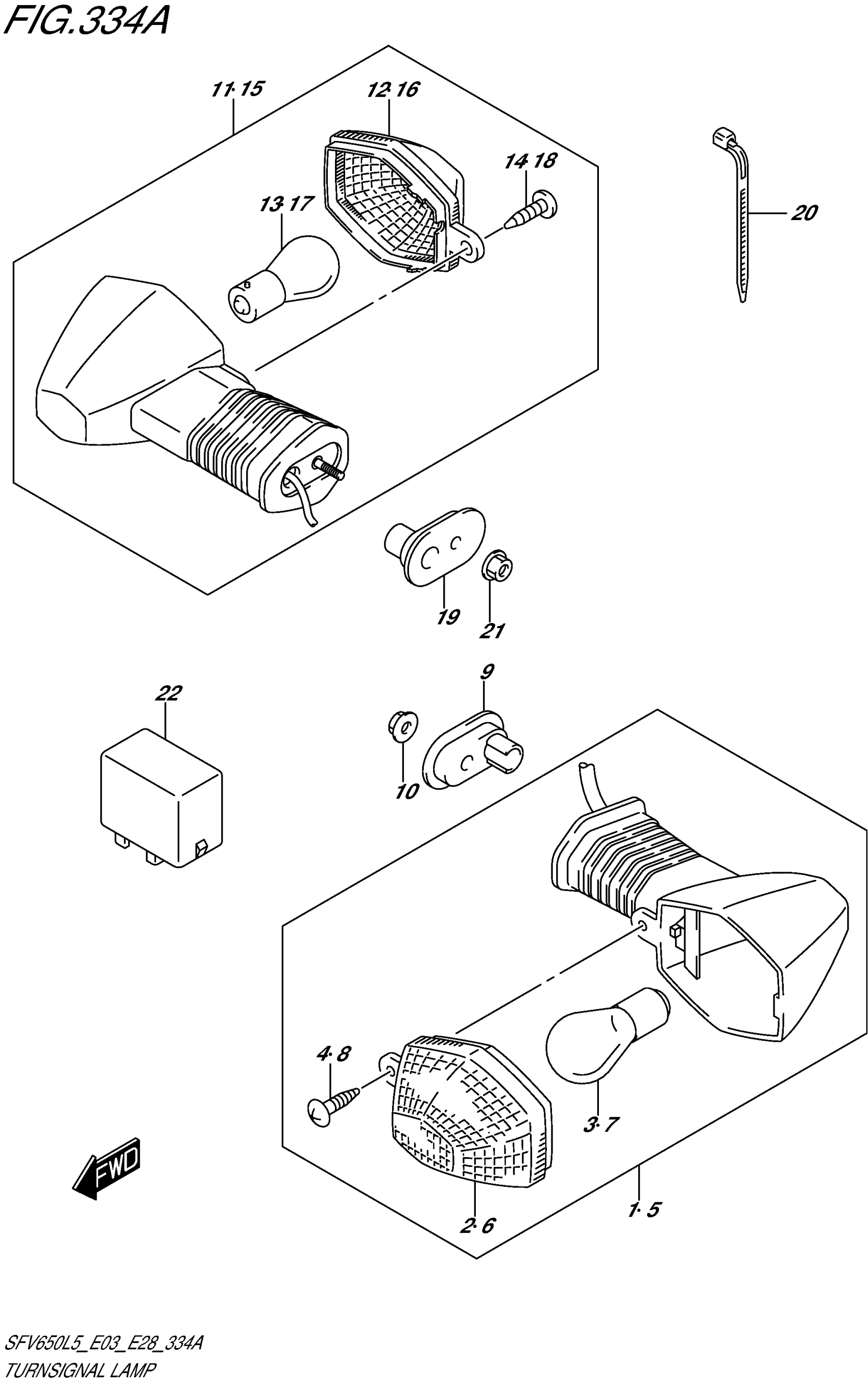

Suzuki SFV650AL5 (2015) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL

35601-29FB0

$129.02

2

LENS

35612-29FA0

$14.37

3

BULB (12V,21W)

09471-12186

$12.66

4

SCREW

03241-0416B

$2.15

5

LAMP ASSY, FRONT TURNSIGNAL

35602-29FB0

$126.62

6

LENS

35632-29FA0

$14.37

7

BULB (12V,21W)

09471-12186

$12.66

8

SCREW

03241-0416B

$2.15

9

PLATE, FRONT TURNSIGNAL

35629-31F60

$5.58

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, REAR TURNSIGNAL RH

35603-29FA0

$100.63

12

LENS

35632-29FA0

$14.37

13

BULB (12V,21W)

09471-12186

$12.66

14

SCREW

03242-0416B

$2.93

15

LAMP ASSY, REAR TURNSIGNAL LH

35604-29FA0

$85.54

16

LENS

35612-29FA0

$14.37

17

BULB (12V,21W)

09471-12186

$12.66

18

SCREW

03242-0416B

$2.93

19

PLATE, REAR TURNSIGNAL

35629-31F60

$5.58

20

CLAMP (L:165)

09407-18402

$2.19

21

NUT

08316-1005A

$2.19

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
