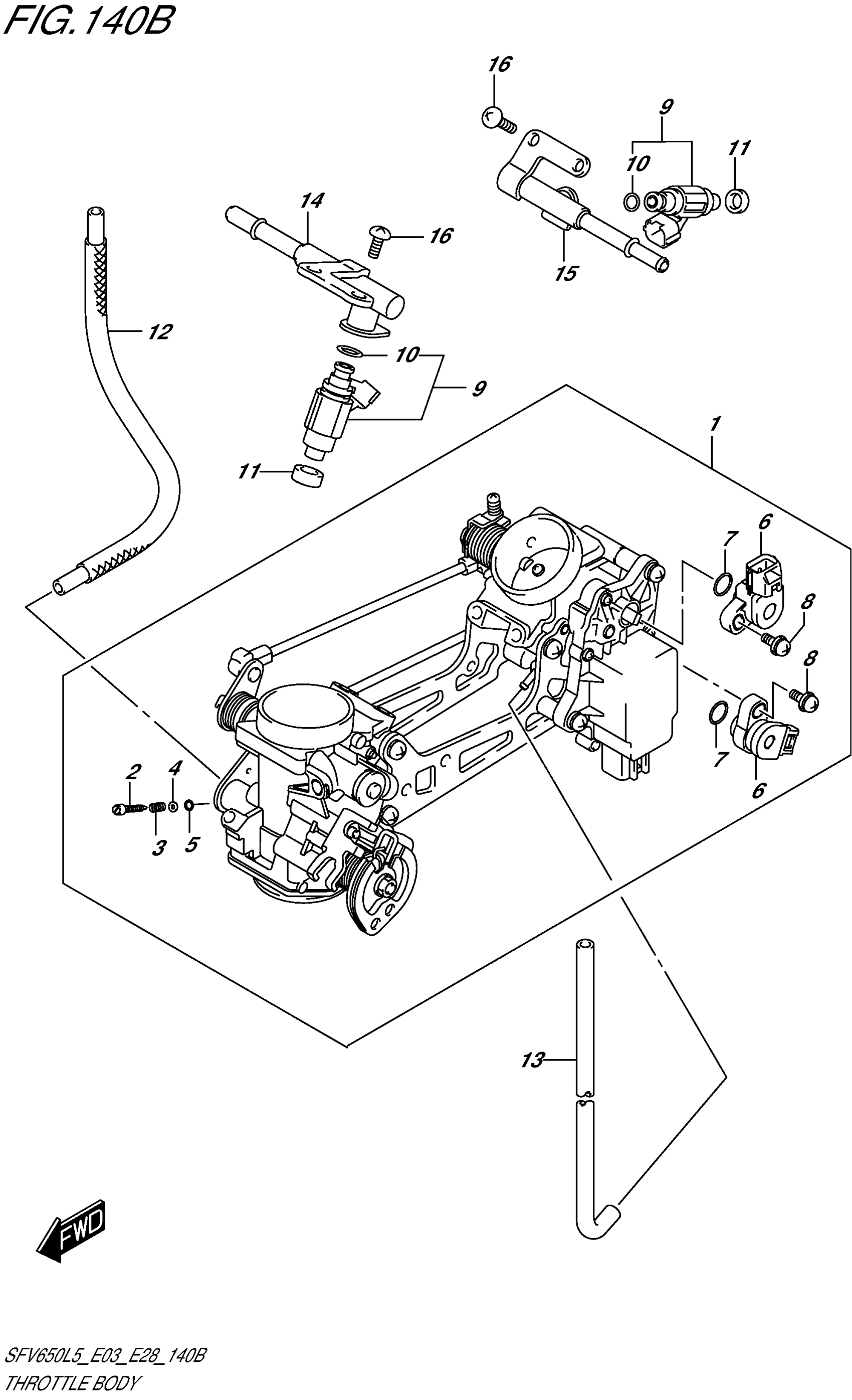

Suzuki SFV650AL5 (2015) THROTTLE BODY (SFV650L5 E28) Diagram

#

Description
Price

1

THROTTLE BODY

13405-44H00

Unavailable

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING This part replaces 13295-29900.

13295-29901

$4.34

6

SENSOR ASSY

13580-27G21

$145.53

7

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

8

SCREW

13605-02F00

$3.71

9

INJECTOR ASSY

15710-44H00

$327.02

10

.O-RING

15717-58B00

$9.95

11

SEAL

15722-29G00

$10.93

12

HOSE

13683-44H00

Unavailable

13

HOSE This part replaces 13683-44H10.

13683-44H11

$18.20

14

DELIVERY PIPE

15720-44H00

Unavailable

15

DELIVERY PIPE

15730-44H00

Unavailable

16

BOLT

13602-06128

$2.96
