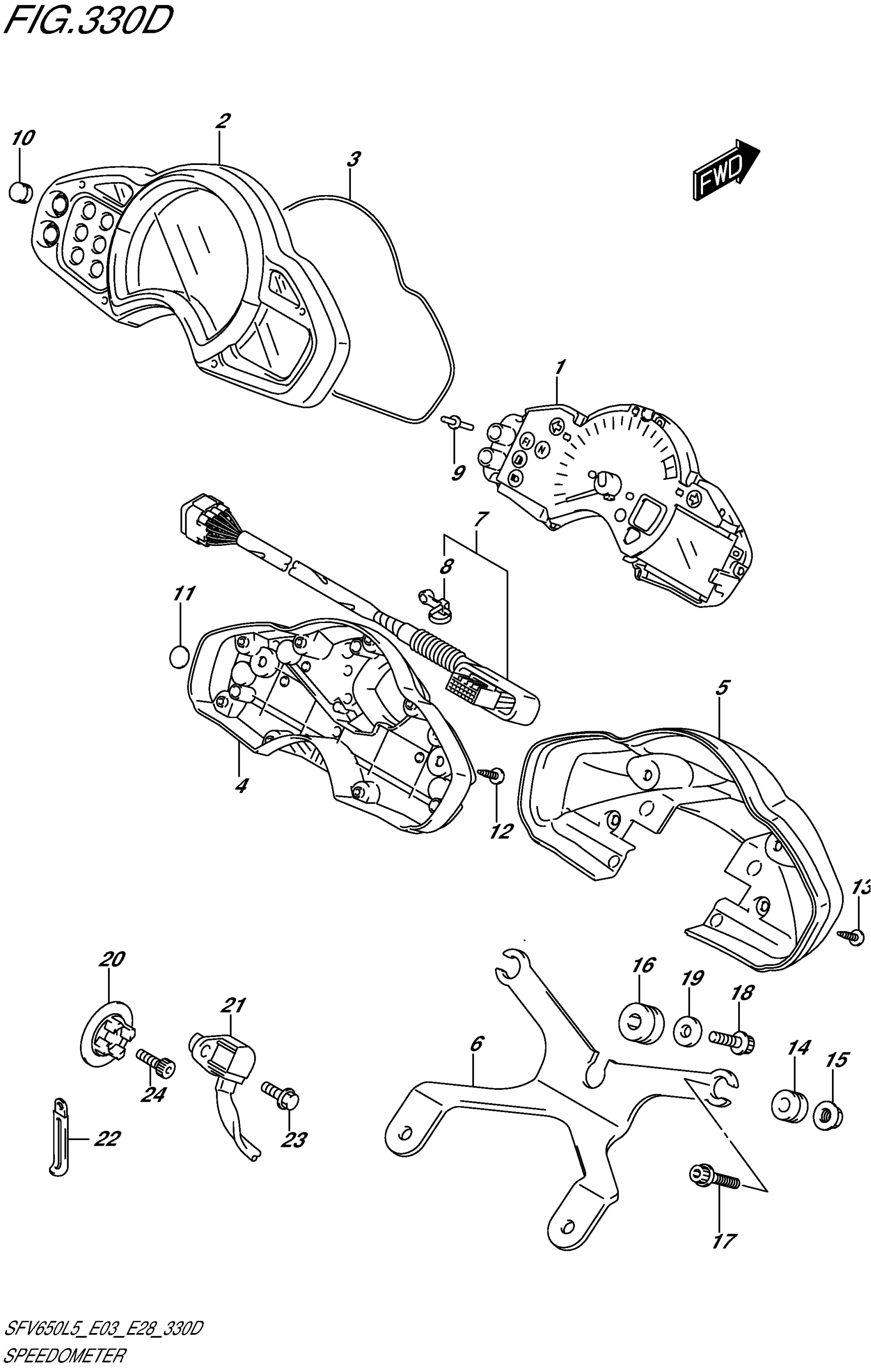

Suzuki SFV650AL5 (2015) SPEEDOMETER (SFV650AL5 E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-44H40

Unavailable

2

CASE ASSY

34150-44H00

$102.17

3

PACKING RUBBER

34153-44H00

$24.50

4

CASE

34152-44H00

$59.87

5

CASE, LOWER

34156-44H00

$74.92

6

HOLDER, CASE

34162-44H00

$62.88

7

WIRE, ASSY

34175-44H01

$151.23

8

CLAMP, LEAD WIRE

34146-44G00

Unavailable

9

KNOB, SPEEDOMETER

34124-16G00

$9.42

10

COVER, SPEEDOMETER

34126-44G00

$10.48

11

SEAL

34167-13E00

Unavailable

12

SCREW, 3X12

34183-29F00

$3.84

13

SCREW, 4X14

34149-16B00

$1.98

14

.CUSHION

34996-43410

$4.35

15

NUT

09159-05049

$2.30

16

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

17

BOLT

07120-0616B

$2.45

18

SCREW, SPEEDOMETER

34149-44H00

$4.77

19

WASHER, SPEEDOMETER

34181-21D00

$7.63

20

ROTOR,SPEED

34981-38G01

$17.92

21

SENSOR, SPEED This part replaces 34990-47F00.

34990-35F00

$127.72

22

CLAMP (L:45)

09404-06429

$1.83

23

BOLT

07120-0512B

$2.61

24

BOLT

07130-0825B

$3.37
