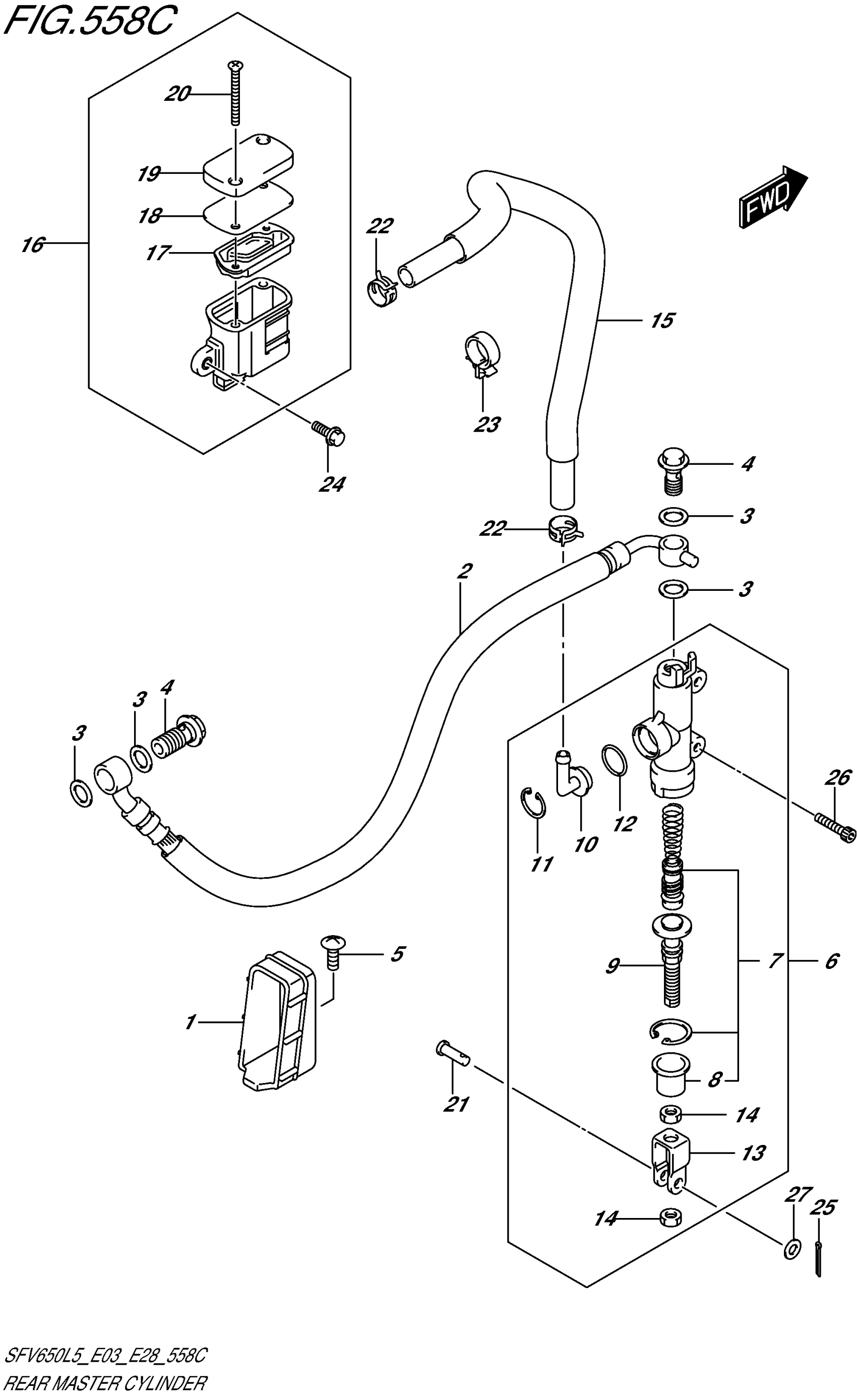

Suzuki SFV650AL5 (2015) REAR MASTER CYLINDER (SFV650L5 E33) Diagram

#

Description
Price

1

GUIDE,RR BRAKE HOSE

69243-44H00

Unavailable

2

HOSE, REAR BRAKE

69480-44H00

Unavailable

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

UNION

09360-10062

$6.43

5

SCREW

02142-0616A

$1.49

6

CYLINDER ASSY,RR MASTER

69600-44H00

Unavailable

7

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

8

.BOOT

69691-00A00

$5.30

9

ROD, PUSH

69670-48B00

$26.97

10

CONNECTOR

69672-00B20

$7.01

11

CIRCLIP

69674-00B20

$3.97

12

O RING

69686-34200

$2.93

13

YOKE

69692-44H00

$16.87

14

NUT

69693-05A00

$1.96

15

HOSE, RR RESERVOIR TANK

69730-44H00

Unavailable

16

TANK ASSY,RESERVOIR This part replaces 69740-01H10.

69740-18K00

$28.10

17

DIAPHRAGM

69667-01H00

$6.30

18

PLATE, DIAPHRAGM

69668-01H00

$5.98

19

CAP, RESERVOIR

69669-01H00

Unavailable

20

SCREW

69689-01H00

$4.45

21

PIN (6X18.2)

09200-06068

$4.11

22

CLIP

09401-12404

$2.34

23

CLAMP

09403-16412

$3.37

24

BOLT

01547-0612A

$2.03

25

PIN

04111-2015A

$1.49

26

BOLT

07130-06257

$3.16

27

WASHER

08322-0106A

$1.84
