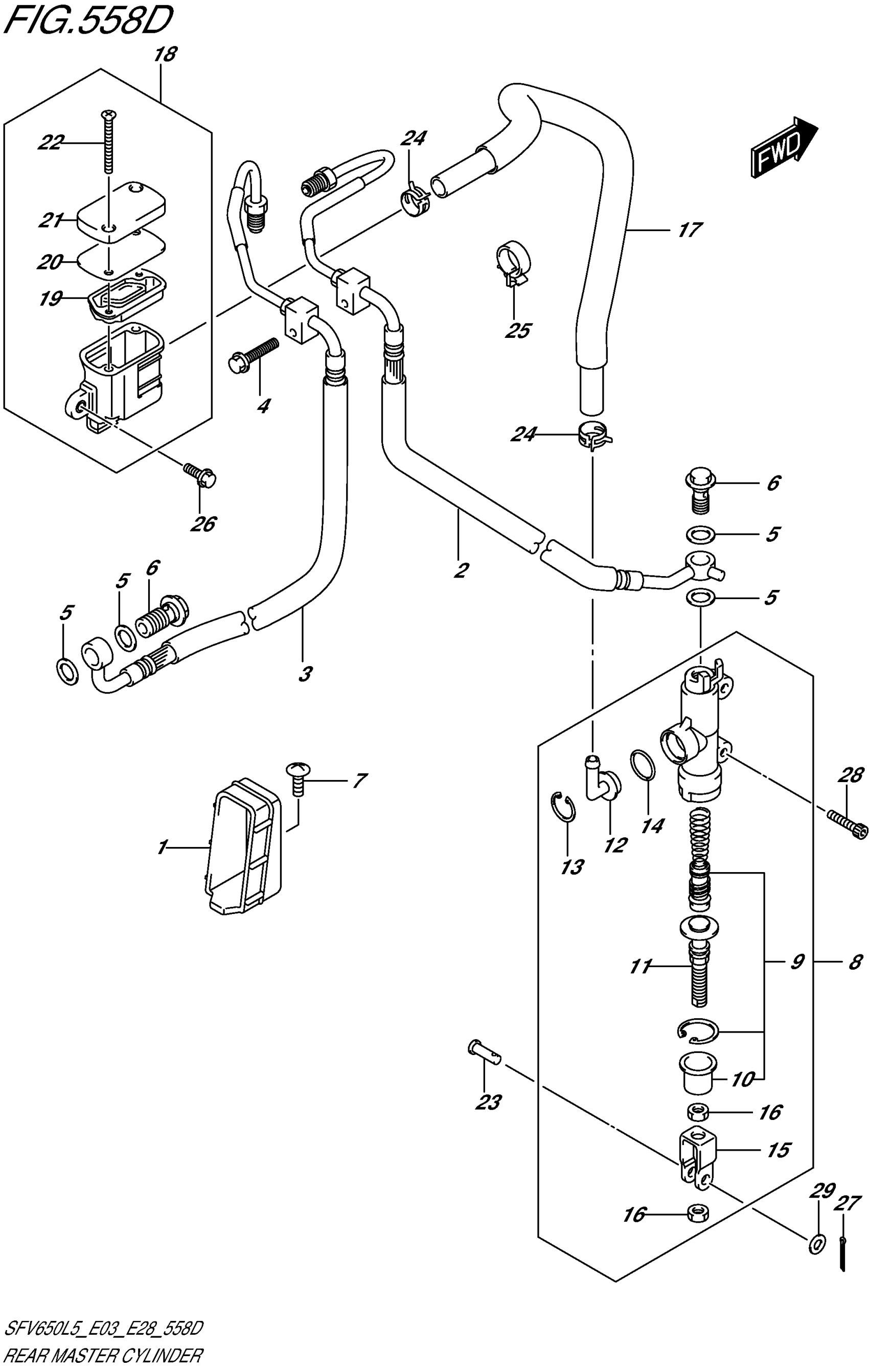

Suzuki SFV650AL5 (2015) REAR MASTER CYLINDER (SFV650AL5 E28) Diagram

#

Description
Price

1

GUIDE,RR BRAKE HOSE

69243-44H00

Unavailable

2

HOSE, REAR BRAKE NO.1

69200-44H00

Unavailable

3

HOSE, REAR BRAKE NO.2

69400-44H00

Unavailable

4

BOLT

01547-0630A

$2.31

5

WASHER (10X15X1.5)

09161-10009

$1.83

6

UNION

09360-10062

$5.81

7

SCREW

02142-0616A

$1.37

8

CYLINDER ASSY,RR MASTER

69600-44H00

Unavailable

9

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

10

.BOOT

69691-00A00

$5.00

11

ROD, PUSH

69670-48B00

$35.80

12

CONNECTOR

69672-00B20

$6.42

13

CIRCLIP

69674-00B20

$3.73

14

O RING

69686-34200

$2.80

15

YOKE

69692-44H00

$19.03

16

NUT

69693-05A00

$1.86

17

HOSE, RR RESERVOIR TANK

69730-44H00

Unavailable

18

TANK ASSY,RESERVOIR This part replaces 69740-01H10.

69740-18K00

$25.72

19

DIAPHRAGM

69667-01H00

$7.12

20

PLATE, DIAPHRAGM

69668-01H00

$6.75

21

CAP, RESERVOIR

69669-01H00

Unavailable

22

SCREW

69689-01H00

$5.02

23

PIN (6X18.2)

09200-06068

$3.71

24

CLIP

09401-12404

$2.37

25

CLAMP

09403-16412

$3.08

26

BOLT

01547-0612A

$2.01

27

PIN

04111-2015A

$1.22

28

BOLT

07130-06257

$2.90

29

WASHER

08322-0106A

$1.83
