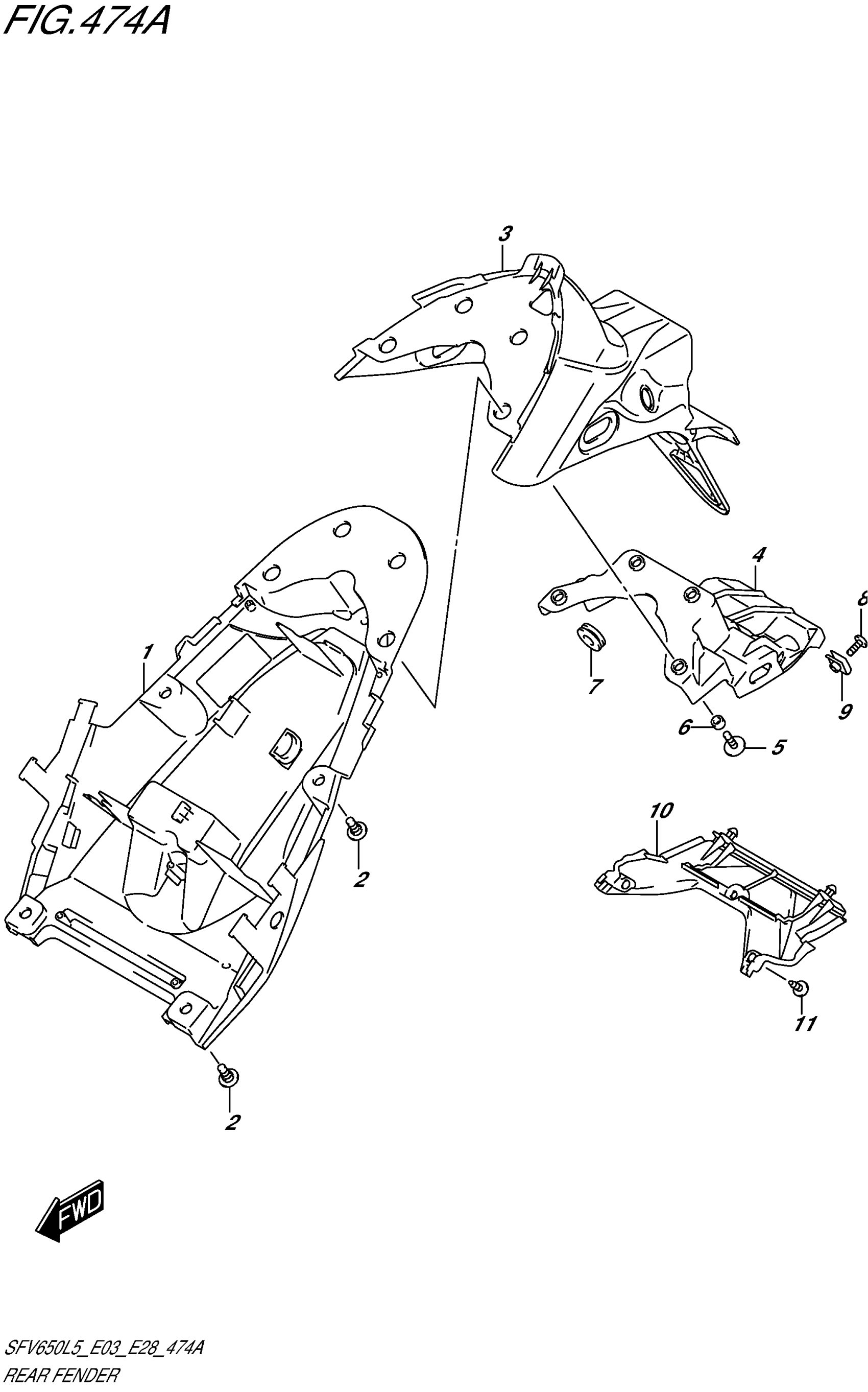

Suzuki SFV650AL5 (2015) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-44H00

Unavailable

2

BOLT (6X12)

09111-06107

$2.60

3

FENDER, REAR REAR

63112-44H00

$145.48

4

BRACKET, REAR FENDER

63131-44H00

Unavailable

5

BOLT (6X20)

09116-06152

$2.36

6

SPACER (6.1X9X7.5)

09180-06038

$1.98

7

CUSHION

09320-08028

$3.04

8

SCREW

02142-0616A

$1.49

9

NUT

09148-06021

$3.56

10

COVER, REAR FENDER REAR

63113-44H00

Unavailable

11

SCREW

03541-0516A

$1.49
