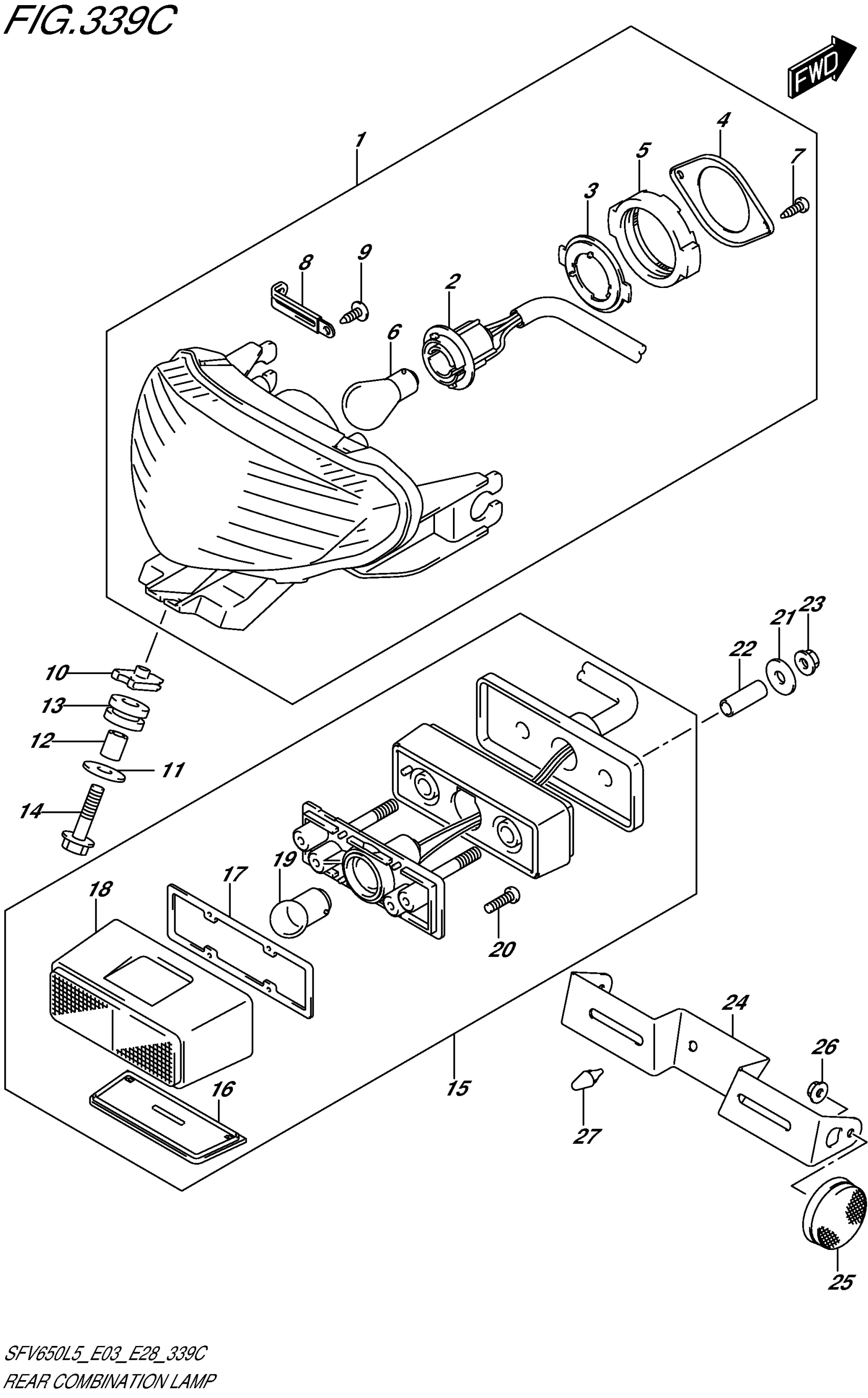

Suzuki SFV650AL5 (2015) REAR COMBINATION LAMP (SFV650L5 E33) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-44H00

Unavailable

2

SOCKET & CORD

35718-44H00

Unavailable

3

PLATE, NO.1

35716-48B21

$20.22

4

PLATE, NO.2

35736-48B21

$21.92

5

CUSHION This part replaces 35765-42E00.

35765-48B21

$12.97

6

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

$6.73

7

SCREW

03211-0412A

$2.23

8

CLAMP (L:45)

09404-06429

$1.83

9

SCREW

03541-0512A

$1.49

10

NUT

09148-05039

Unavailable

11

WASHER (5.5X20X1.2)

09160-05501

$1.84

12

SPACER (5.5X9.5X10)

09180-05301

$2.42

13

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

14

BOLT

01550-0525A

$2.06

15

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

$88.47

16

LENS, LICENSE

35912-41G01

$13.28

17

GASKET

35913-41G00

$14.23

18

COVER, LICENSE LAMP

35917-41G00

$35.32

19

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

20

SCREW

03211-0416A

$1.49

21

WASHER (6.5X20X1.2)

09160-06077

$1.91

22

SPACER (6.5X9X33.3)

09180-06278

$4.52

23

NUT

08316-1006A

$2.19

24

BRACKET,LICENSE PLATE

35927-44H30

$18.42

25

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

26

NUT

08316-1005A

$2.19

27

CUSHION This part replaces 09321-06028.

09321-06038

$1.88
