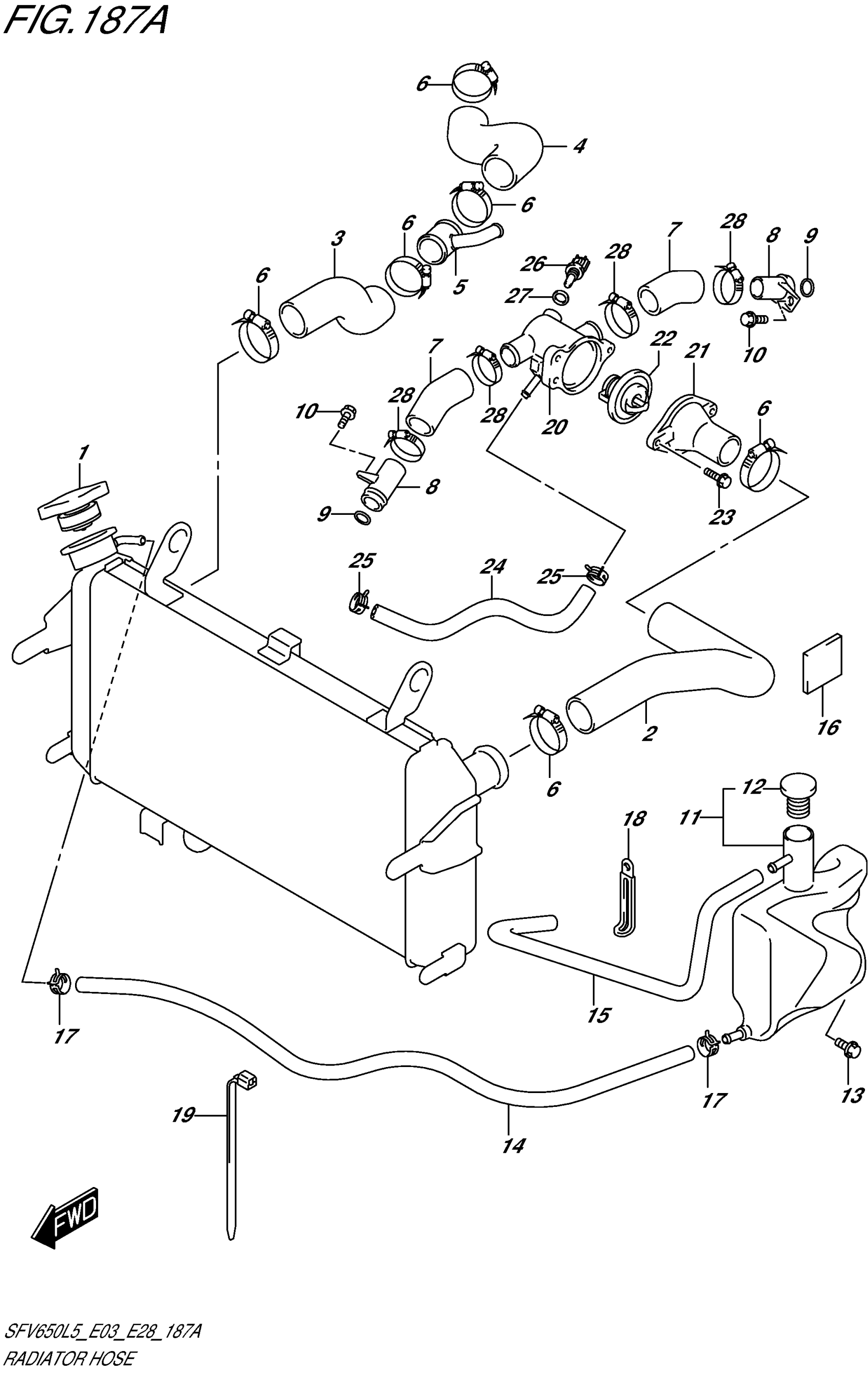

Suzuki SFV650AL5 (2015) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR 1.1

17730-12C30

$51.93

2

HOSE,RADIATOR INLET

17851-44H00

$59.32

3

HOSE,RADIATOR OUTLET NO.1

17852-44H00

$23.07

4

HOSE, RADIATOR OUTLET NO.2

17854-44H00

$21.82

5

UNION, WATER HOSE THREE WAY

17880-44H00

$40.75

6

CLAMP

09402-38512

$11.72

7

HOSE,CONNECTOR INLET

17853-19F00

$14.34

8

UNION, CONNECTOR HOSE

17890-06G20

$14.43

9

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

10

BOLT

07130-0612A

$2.50

11

TANK ASSY, RESERVOIR

17910-44H00

Unavailable

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

13

BOLT (6X12)

09111-06085

$4.54

14

HOSE,RSVR TANK INLET

17981-44H00

Unavailable

15

HOSE, RESERVOIR TANK OVERFLOW

17982-44H00

Unavailable

16

CUSHION, RESERVOIR TANK | CUT AS REQUIRED

63191-25C00

$3.05

17

CLIP

09401-08411

$1.78

18

CLAMP (L:45)

09404-06429

$1.83

19

CLAMP (L:190)

09407-19401

$3.05

20

CONNECTOR,THERMOSTAT INLET

17662-02F11

$64.30

21

CAP,THERMOSTAT CONNECTOR

17663-17G00

$29.33

22

THERMOSTAT,WATE This part replaces 17670-06G70.

17670-06G71

$41.20

23

BOLT

01547-0616A

$2.03

24

HOSE,CONNECTOR TO WTR PMP

17856-44H00

$20.65

25

CLIP

09401-12414

$3.26

26

SENSOR, WATER TEMPERATURE

13650-49X00

$90.19

27

GASKET (12X17X1)

09168-12017

$1.95

28

CLAMP

09402-28513

$6.88
