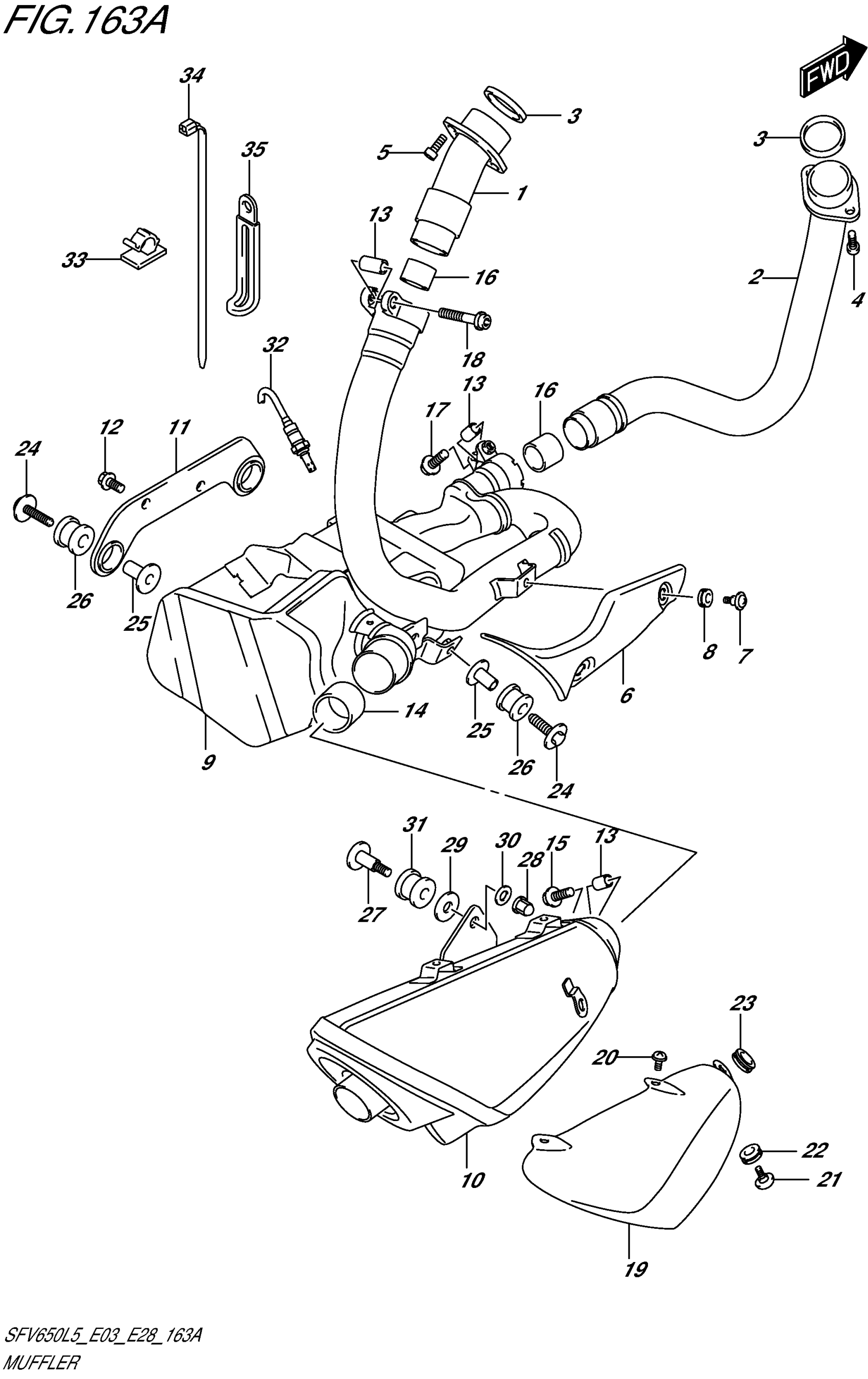

Suzuki SFV650AL5 (2015) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RR

14150-44H00

Unavailable

2

PIPE, EXHAUST FR

14160-44H00

Unavailable

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

BOLT (8X25)

09106-08165

$4.03

5

BOLT

07130-0825B

$3.37

6

NO DESCRIPTION AVAILABLE

1418044H10

Unavailable

7

SCREW (6X12)

09139-06124

$4.52

8

CUSHION (8.4X18X6)

09320-08066

$8.24

9

CHAMBER | W/CATALYST

14200-44H01

$2,159.77

10

BODY, MUFFLER

14310-44H00-H01

Unavailable

11

BRACKET

14410-44H00

Unavailable

12

BOLT (8X16)

01550-0816A

$2.32

13

SPACER, CLAMP

14458-06H00

$7.05

14

CONNECTOR, MUFFLER JOINT

14771-45G00

$25.76

15

BOLT (8X35)

09103-08365

$3.91

16

CONNECTOR, EXHAUST

14771-32E00

$21.84

17

BOLT (8X35)

09103-08365

$3.91

18

BOLT (8X40)

09106-08162

$4.77

19

COVER, MUFFLER

14780-44H10

$326.90

20

SCREW (6X10)

09139-06122

$3.04

21

SCREW (6X12)

09139-06124

$4.52

22

CUSHION (8.4X18X6)

09320-08066

$8.24

23

CUSHION

09321-10018

$5.45

24

BOLT (8X40)

09118-08145

$6.47

25

SPACER (8.6X12X24.2)

09180-08152

$5.83

26

CUSHION

09320-12077

$11.78

27

BOLT, MUFFLER

14419-29F00

$13.02

28

NUT

09159-08143

$6.28

29

WASHER (8.5X30X2.3)

09160-08503

$2.50

30

WASHER (8.5X20X1.6) This part replaces 09160-08124.

09160-08054

$1.49

31

CUSHION

09320-12077

$11.78

32

SENSOR, OXYGEN

18213-18H10

$388.57

33

CLIP

09403-08327

Unavailable

34

CLAMP (L:165)

09407-18402

$2.19

35

CLAMP (L:45)

09404-06429

$1.83
