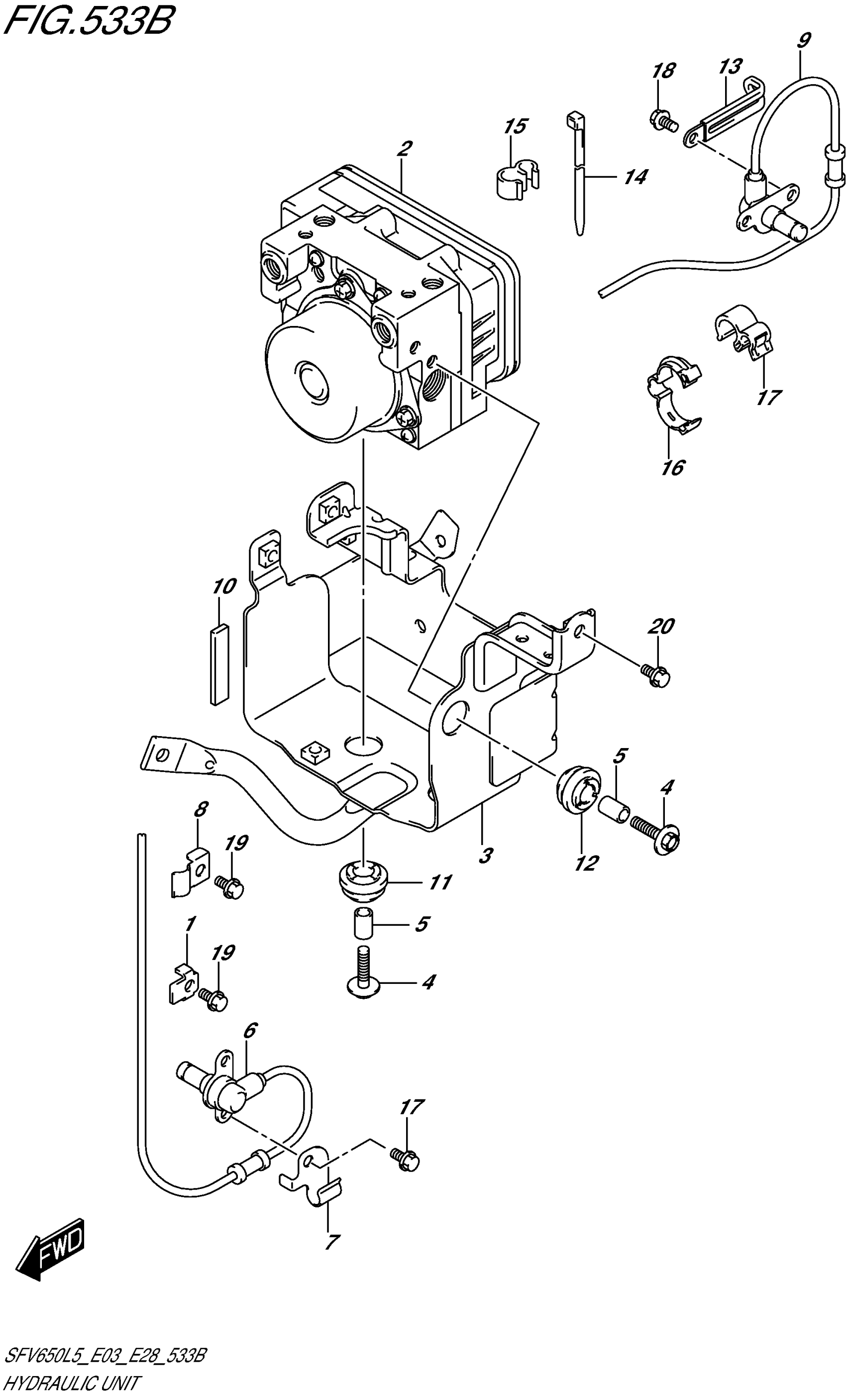

Suzuki SFV650AL5 (2015) HYDRAULIC UNIT (SFV650AL5 E33) Diagram

#

Description
Price

1

GUIDE, SENSOR LEAD

34938-14F00

$6.30

2

UNIT ASSY, HYDRAULIC ABS

55610-44H01

$1,653.72

3

HOLDER, HYDR UNIT

55660-44H00

Unavailable

4

BOLT, HYDR UNIT MTG

55661-10G00

Unavailable

5

SPACER, HYDR UNIT MTG

55662-10G00

Unavailable

6

SENSOR, FR WHEEL ABS

55710-44H00

Unavailable

7

CLAMP, SENSOR LEAD FR

55731-44H00

Unavailable

8

CLAMP, SENSOR LEAD FR

55733-44H00

Unavailable

9

SENSOR, RR WHEEL ABS

65710-44H00

Unavailable

10

TAPE,ABS UNIT HOLDER

94415-40F00

$3.32

11

RUBBER

09320-10065

Unavailable

12

RUBBER

09320-10066

$4.82

13

CLAMP (L:45)

09404-06429

$1.83

14

CLAMP (L:145)

09407-14407

$3.57

15

CLIP

09408-00101

$3.13

16

CLAMP

09408-00259

Unavailable

17

CLAMP

09408-00266

$2.51

18

BOLT

01547-0612A

$2.03

19

BOLT

01547-0612A

$2.03

20

BOLT

01550-0612A

$1.97
