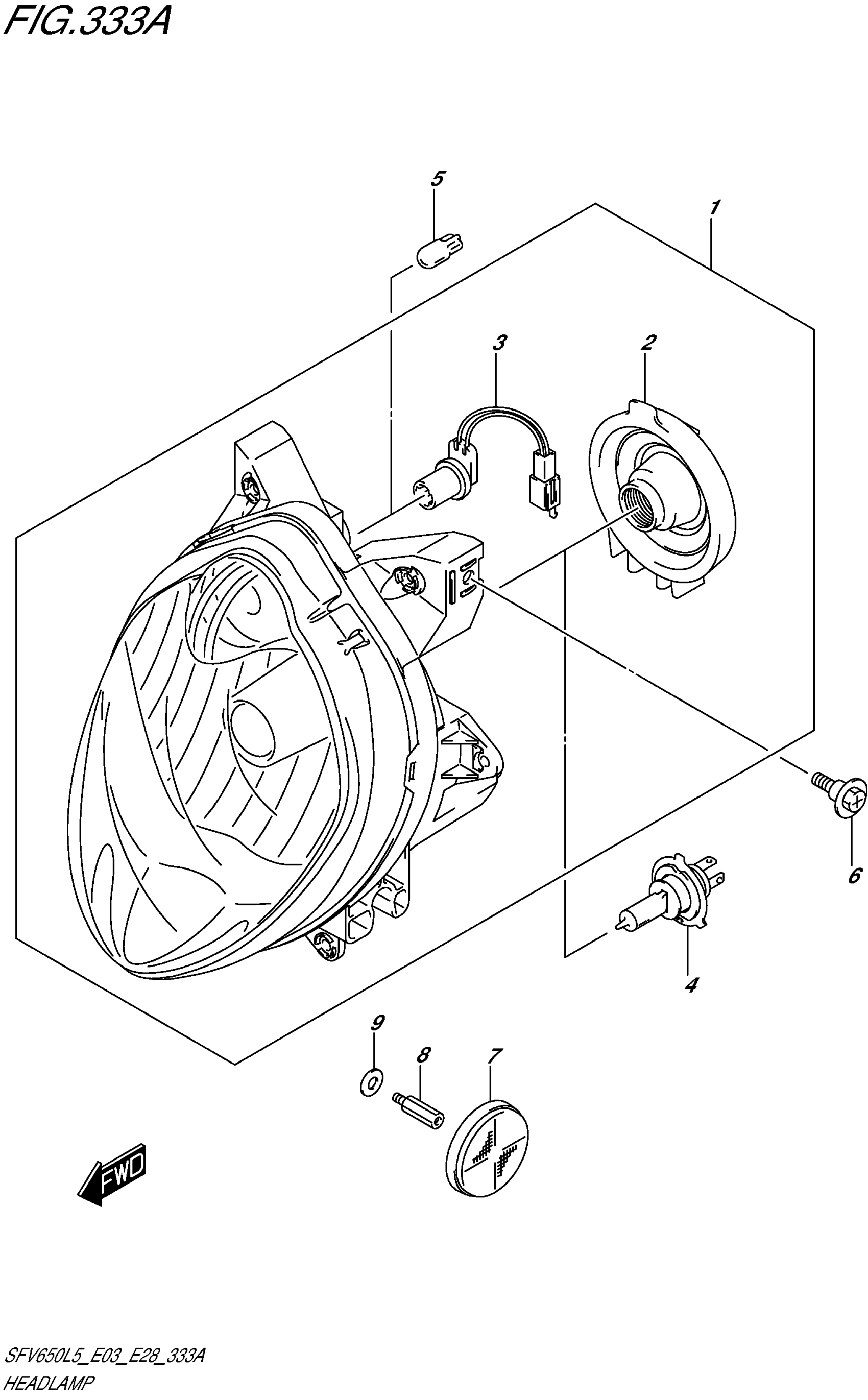

Suzuki SFV650AL5 (2015) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-44H02-999.

35100-44H13-999

$367.20

2

COVER, SOCKET

35125-77A00

$13.74

3

CORD ASSY

36118-44H10

Unavailable

4

BULB (12V,60/55W)

09471-12182

$77.08

5

.BULB (12V5W)

09471-12216

$5.36

6

SCREW (6X22.5)

09139-06118

$3.25

7

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

8

BOLT (5X10)

09119-05023

$12.35

9

WASHER

08322-0105B

$2.26
