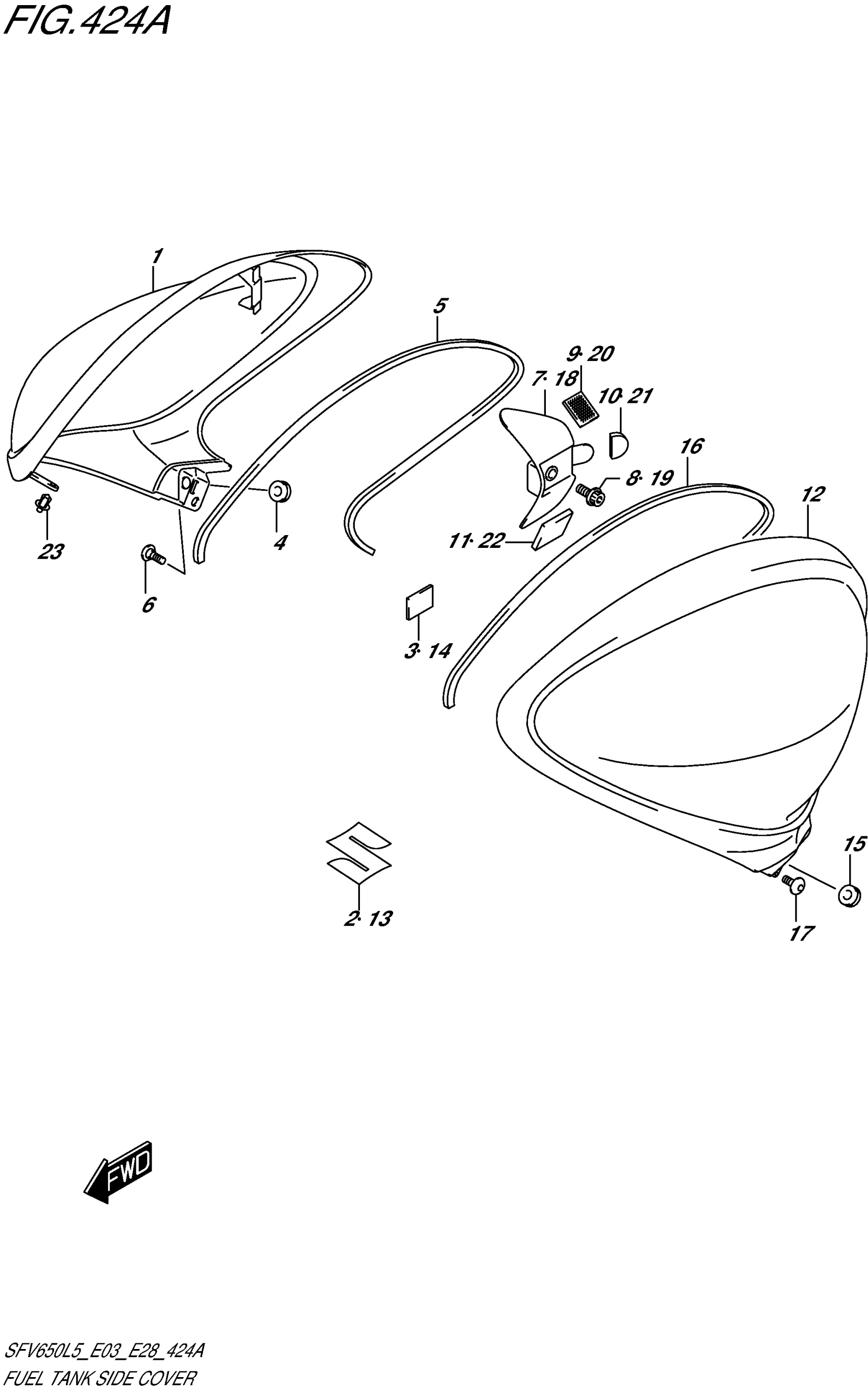

Suzuki SFV650AL5 (2015) FUEL TANK SIDE COVER Diagram

#

Description
Price

1

COVER, TANK SIDE RH (GRAY) | FOR AR4

44171-44H01-PGZ

Unavailable

1

COVER, TANK SIDE RH (WHITE) | FOR AJP

44171-44H01-YWW

$209.80

1

COVER, TANK SIDE RH (BLACK) | FOR KGL

44171-44H01-YKV

$223.00

2

EMBLEM, "S"

68111-47HA0

$40.44

3

FASTENER

44572-13G00

$11.07

4

CUSHION (6.5X14X6) | LOWER This part replaces 09320-06016.

09320-06027

$2.10

5

CUSHION, UPPER

44277-44H00

$6.42

6

BOLT (5X13)

09139-05074

$2.61

7

BRACKET, COVER RH

44179-44H00

Unavailable

8

BOLT

07120-0612A

$2.50

9

FASTENER, UPPER

44572-13G00

$11.07

10

CUSHION

09329-18001

$1.91

11

CUSHION, LOWER

44183-23H00

$12.97

12

COVER, TANK SIDE LH (GRAY) | FOR AR4

44181-44H01-PGZ

Unavailable

12

COVER, TANK SIDE LH (WHITE) | FOR AJP

44181-44H01-YWW

$209.80

12

COVER, TANK SIDE LH (BLACK) | FOR KGL

44181-44H01-YKV

$223.00

13

EMBLEM, "S"

68111-47HA0

$40.44

14

FASTENER

44572-13G00

$11.07

15

CUSHION (6.5X14X6) | LOWER This part replaces 09320-06016.

09320-06027

$2.10

16

CUSHION, UPPER

44277-44H00

$6.42

17

BOLT (5X13)

09139-05074

$2.61

18

BRACKET, COVER LH

44189-44H00

Unavailable

19

BOLT

07120-0612A

$2.50

20

FASTENER, UPPER

44572-13G00

$11.07

21

CUSHION

09329-18001

$1.91

22

CUSHION, LOWER

44183-23H00

$12.97

23

CLIP

09409-07333

$2.31
