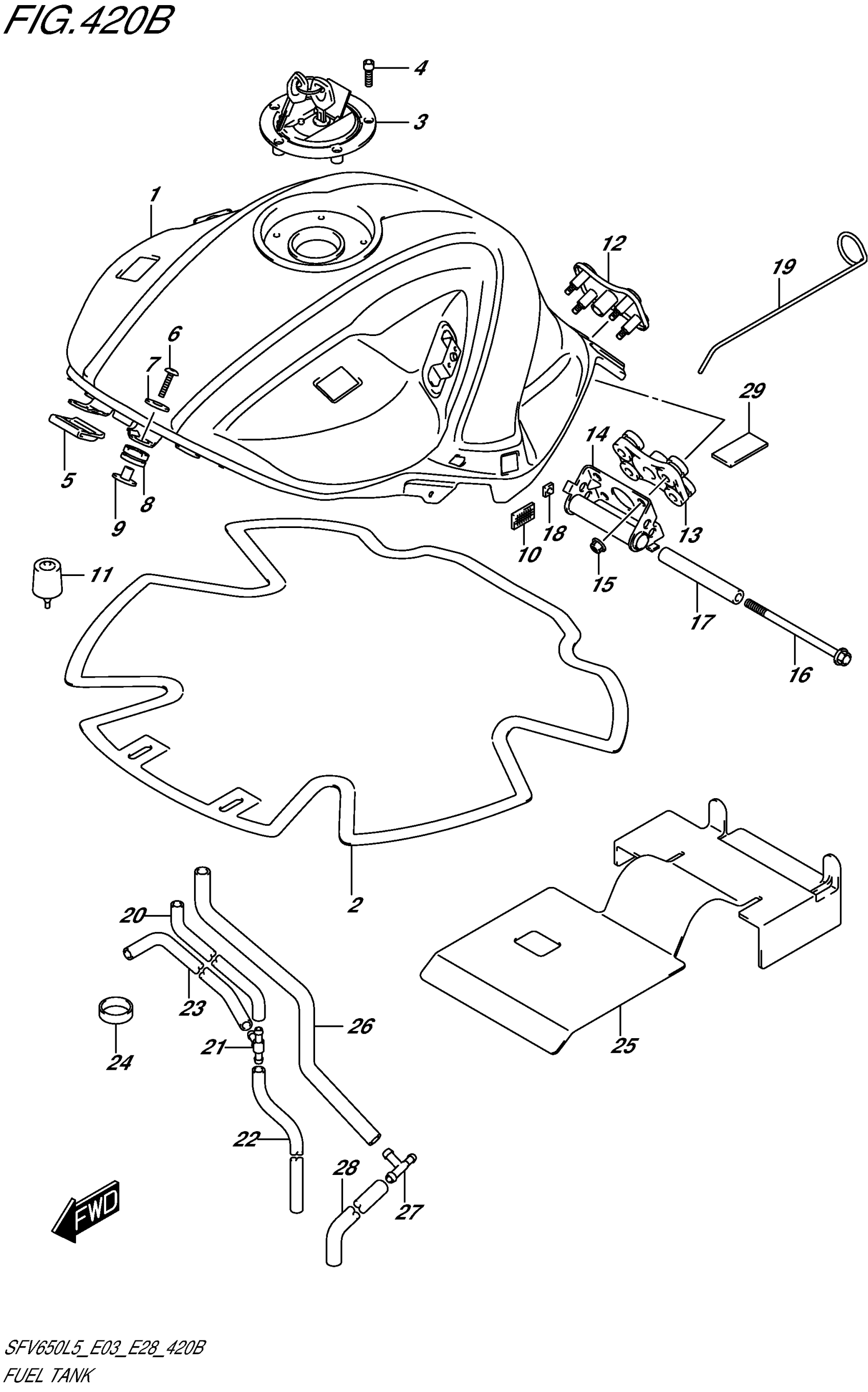

Suzuki SFV650AL5 (2015) FUEL TANK (SFV650L5 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | FOR AR4,KGL

44100-44H31-YVB

Unavailable

1

TANK ASSY, FUEL (BLUE) | FOR AJP

44100-44H31-YKY

Unavailable

2

SHIELD, TANK HEAT

44191-44H00

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

4

BOLT (5X20)

09106-05017

$2.83

5

RUBBER,FUEL TANK FR

44546-44H00

$13.35

6

SCREW (6X25)

09139-06029

$5.36

7

WASHER This part replaces 09160-06012.

09160-06054

$1.62

8

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

9

WASHER, LOWER

44512-16G00

$7.44

10

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

11

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

12

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

13

CUSHION, LOWER

44542-16G00

$13.77

14

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

15

NUT

08319-3106A

$2.03

16

BOLT (6X100)

09103-06060

$2.50

17

SPACER, JOINT

44561-35F00

$13.88

18

NUT

08318-1106A

Unavailable

19

STAY,FUEL TANK | OPT

44574-16G00

$26.72

20

HOSE, BREATHER NO.1

44424-44H00

Unavailable

21

3 WAY

09367-06007

$3.46

22

HOSE,5X10X600 | L:600->420 This part replaces 09352-50823-600.

44421-13ER0

$10.06

23

HOSE,VACUUM | CUT AS REQUIRED This part replaces 44425-09E00.

44425-09E01

$11.28

24

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

25

SHEET, SHIELD RUBBER

44271-44H00

Unavailable

26

HOSE, TANK WATER DRAIN

44423-44H00

Unavailable

27

3 WAY

09367-08005

$4.83

28

HOSE, WATER DRAIN

44423-44H10

Unavailable

29

CUSHION

36920-08D10

Unavailable
