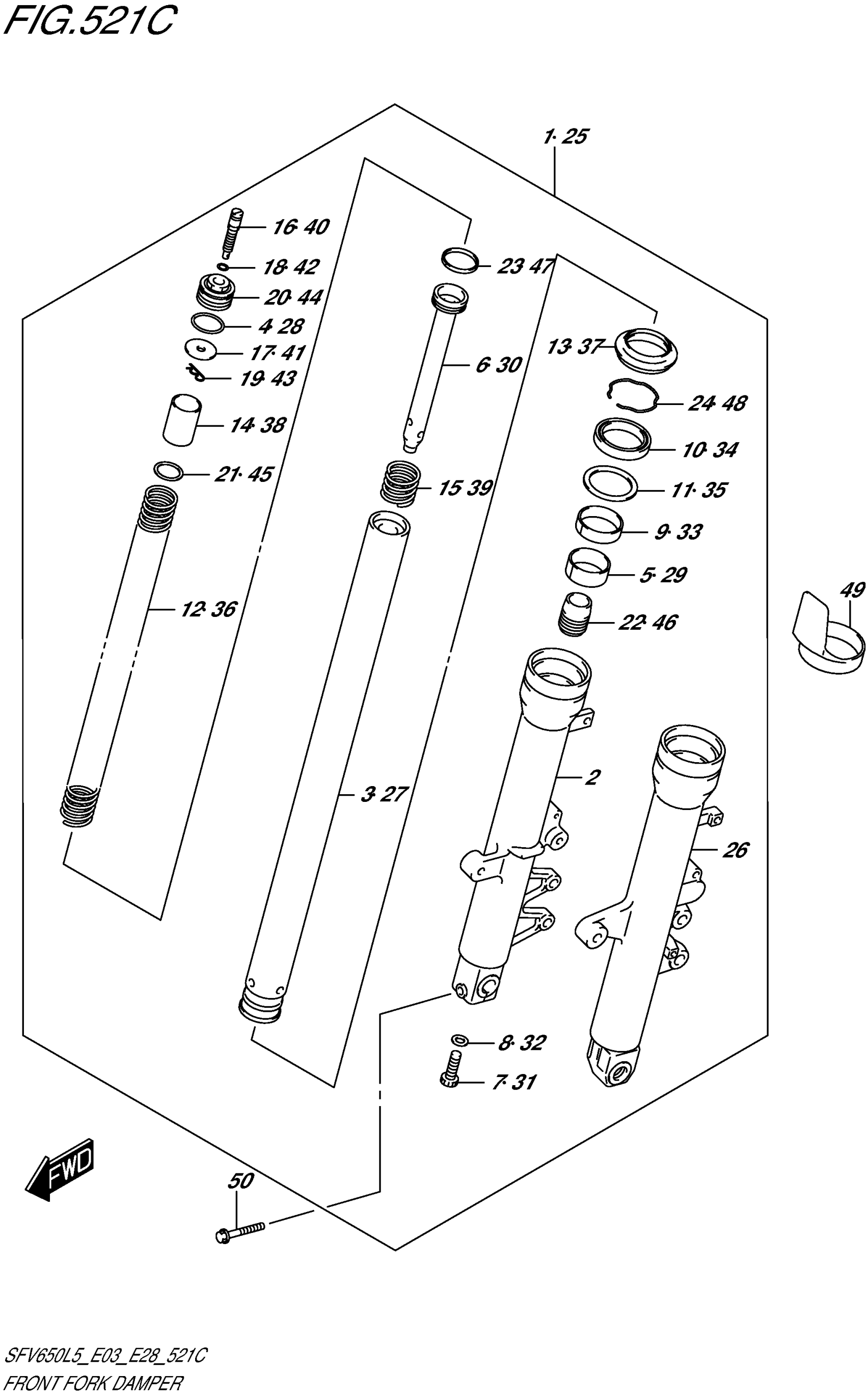

Suzuki SFV650AL5 (2015) FRONT FORK DAMPER (SFV650L5 E33) Diagram

#

Description
Price

1

DAMPER FRONT,RH This part replaces 51103-44H20.

51103-44H21

$739.78

2

TUBE, OUTER RH

51130-44H20

Unavailable

3

TUBE, INNER

51110-44H00

$472.30

4

.O-RING

51117-12C00

$3.89

5

.BUSH,SLIDE

51121-44H00

$22.80

6

CYLINDER

51146-17G20

Unavailable

7

BOLT, 8X27

51147-48130

$4.34

8

GASKET

51148-36011

$3.56

9

BUSH, GUIDE

51152-01H10

$18.25

10

SEAL, OIL

51153-01H10

$26.91

11

SPACER, SEAL

51168-17G80

$6.40

12

SPRING, FRONT

51171-44H00

$38.77

13

SEAL, DUST

51173-01H00

$11.64

14

COLLAR, SPRING

51176-12C10

$13.92

15

SPRING, REBOUND

51177-17G50

Unavailable

16

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

17

SEAT, SPRING

51186-12C00

$7.53

18

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

19

PIN, SEAT SPRING

51188-32B00

Unavailable

20

.BOLT,FORK

51189-12C00

Unavailable

21

JOINT, SPRING

51192-19C00

$5.02

22

PIECE, OIL LOCK

51195-48B30

$21.72

23

RING, PISTON

51196-12C00

$8.42

24

RING, STOPPER

51556-38B00

$7.22

25

DAMPER ASSY, FRONT FORK LH

51104-44H20

$1,008.12

26

TUBE, OUTER LH

51140-44H20

$522.35

27

TUBE, INNER

51110-44H00

$472.30

28

.O-RING

51117-12C00

$3.89

29

.BUSH,SLIDE

51121-44H00

$22.80

30

CYLINDER

51146-17G20

Unavailable

31

BOLT

51147-48130

$4.34

32

GASKET

51148-36011

$3.56

33

BUSH, GUIDE

51152-01H10

$18.25

34

SEAL, OIL

51153-01H10

$26.91

35

SPACER, SEAL

51168-17G80

$6.40

36

SPRING, FRONT

51171-44H00

$38.77

37

SEAL, DUST

51173-01H00

$11.64

38

COLLAR, SPRING

51176-12C10

$13.92

39

SPRING, REBOUND

51177-17G50

Unavailable

40

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

41

SEAT, SPRING

51186-12C00

$7.53

42

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

43

PIN, SEAT SPRING

51188-32B00

Unavailable

44

.BOLT,FORK

51189-12C00

Unavailable

45

JOINT, SPRING

51192-19C00

$5.02

46

PIECE, OIL LOCK

51195-48B30

$21.72

47

RING, PISTON

51196-12C00

$8.42

48

RING, STOPPER

51556-38B00

$7.22

49

PROTECTOR

51201-32F00

$20.95

50

BOLT | RH

51166-01H10

$8.13
