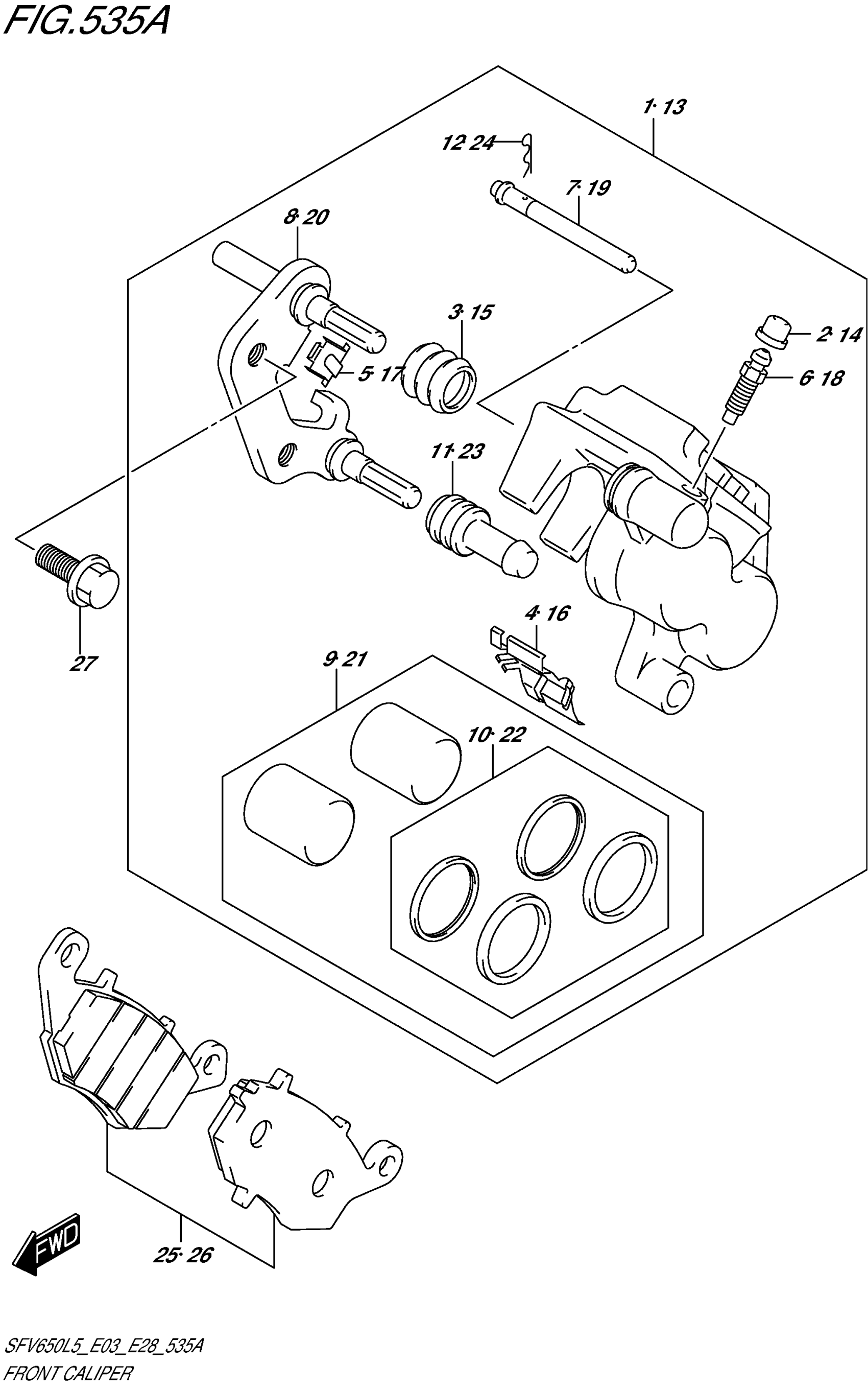

Suzuki SFV650AL5 (2015) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-33DJ0-999

Unavailable

2

CAP, BLEEDER PLUG

55156-66310

$5.17

3

BOOT, AXLE

59112-44B00

$8.91

4

.SPRING, PAD RH

59115-33D00

$14.90

5

.GUIDE, PAD

59116-33D00

$7.97

6

BLEEDER

59121-18410

$8.73

7

.PIN, PAD

59141-44B01

$9.09

8

.CARRIER, CALIPER RH

59150-33D01

$109.85

9

PISTON SET

59300-01820

$90.23

10

..SEAL SET, PISTON

59100-04851

$28.97

11

.INSULATOR, AXLE

59313-36500

$5.99

12

.CLIP, PAD PIN

69142-45000

$4.34

13

CALIPER ASSY, FRONT LH

59300-33DJ0-999

Unavailable

14

CAP, BLEEDER PLUG

55156-66310

$5.17

15

BOOT, AXLE

59112-44B00

$8.91

16

.SPRING, PAD LH

59315-33D00

$14.90

17

.GUIDE, PAD

59116-33D00

$7.97

18

BLEEDER

59121-18410

$8.73

19

.PIN, PAD

59141-44B01

$9.09

20

.CARRIER, CALIPER LH

59350-33D01

$109.85

21

PISTON SET

59300-01820

$90.23

22

..SEAL SET, PISTON

59100-04851

$28.97

23

.INSULATOR, AXLE

59313-36500

$5.99

24

.CLIP, PAD PIN

69142-45000

$4.34

25

PAD SET, RH

59101-33880

$60.80

26

PAD SET, LH

59302-33890

$63.33

27

BOLT (10X20)

01550-1025A

$3.05
