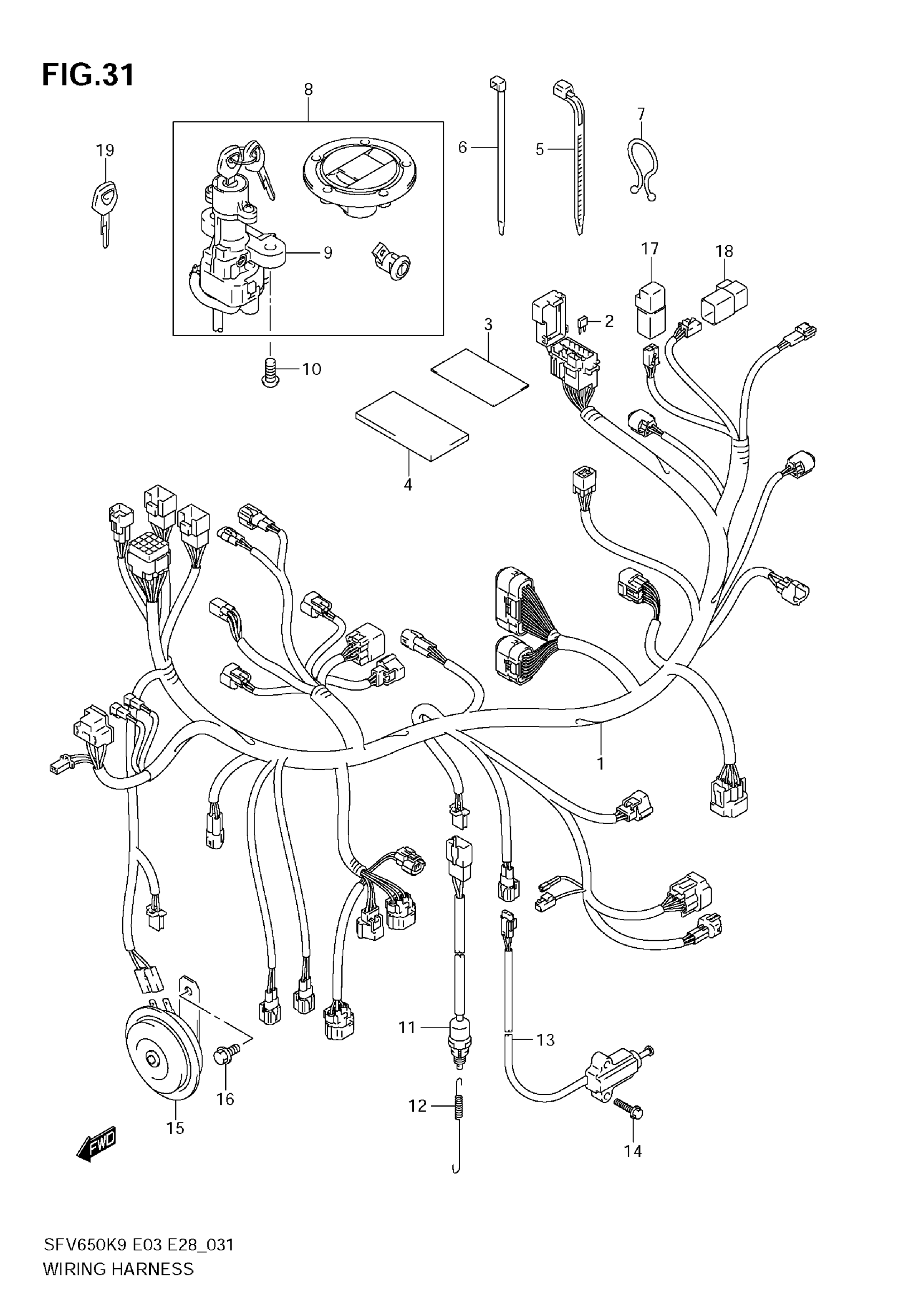

Suzuki SFV650 (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | E3/E28

36610-44H30

Unavailable

1

HARNESS, WIRING | E33; Includes Item(s) 2 - 2

36610-44H40

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

4

PROTECTOR (30X60X3)

36920-08D00

Unavailable

5

CLAMP (L:95)

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:190)

09407-19401

$3.05

6

CLAMP (L:145)

09407-14407

$3.57

7

CLAMP, WIRING HARNESS

09408-00012

$2.13

8

LOCK SET | E3/E28 This part replaces 37000-16840.

37000-16844

$386.02

8

LOCK SET | E33; Includes Item(s) 9

37000-16890

Unavailable

9

LOCK ASSY,STEER This part replaces 37100-16G00.

37100-16G02

$188.90

10

SCREW, STEERING LOCK

09139-08016

$3.37

11

SWITCH ASSY,STOP LAMP This part replaces 37740-44H00.

37740-44H01

$19.90

12

SPRING, BRAKE LAMP SWITCH

09443-06016

$3.30

13

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

$60.37

14

BOLT, SIDE STAND SWITCH

01547-0625A

$2.01

15

HORN ASSY

38500-16G01

$87.70

16

BOLT (8X12)

01550-0812A

$2.32

17

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

18

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

19

KEY, BLANK | OPT

37146-33E00

$21.21
