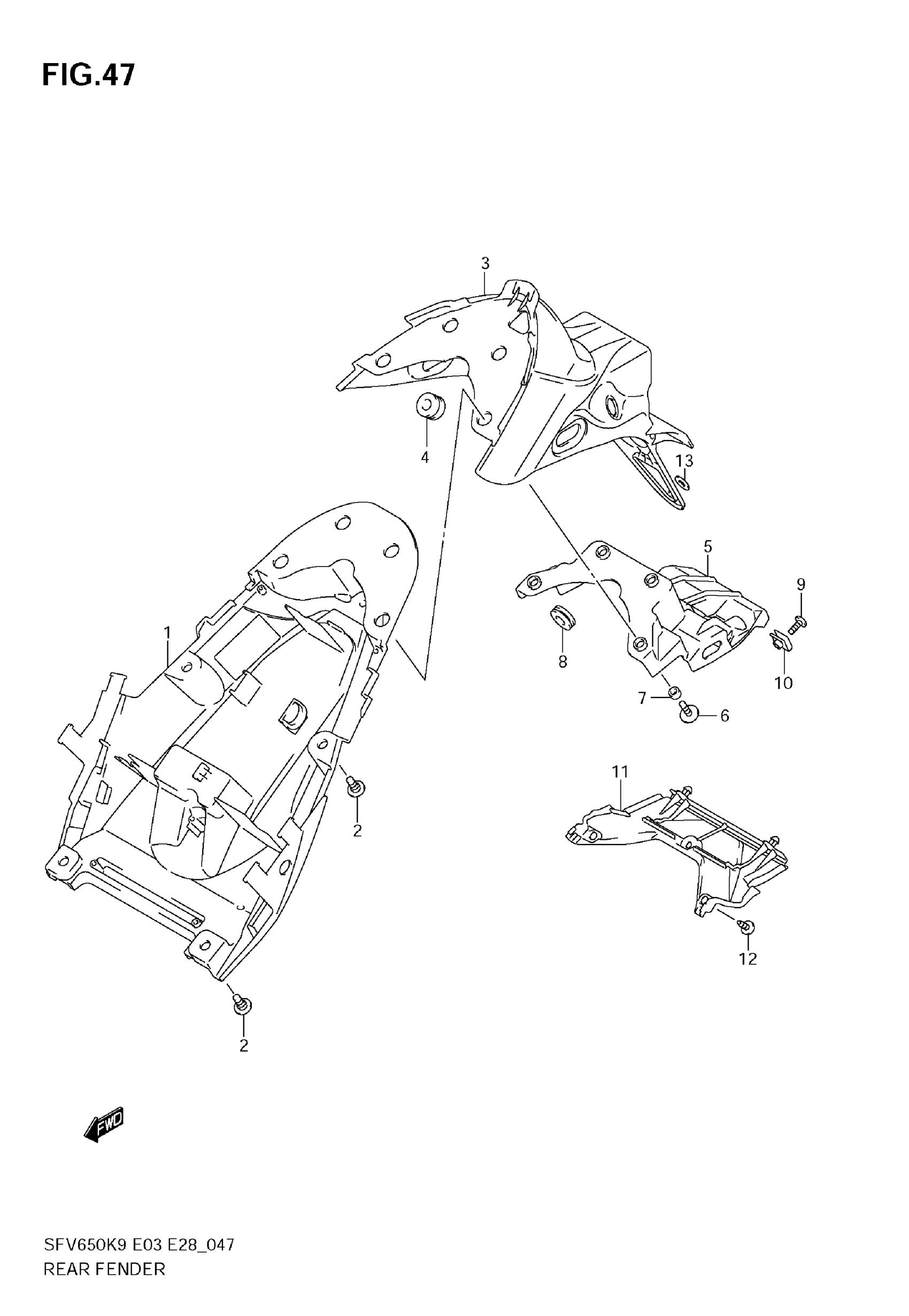

Suzuki SFV650 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-44H00

Unavailable

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

3

FENDER, REAR REAR

63112-44H00

$145.48

4

CUSHION

33652-36000

$2.30

5

BRACKET, REAR FENDER

63131-44H00

Unavailable

6

BOLT, REAR

09116-06152

$2.36

7

SPACER

09180-06038

$1.98

8

CUSHION

09320-08028

$3.04

9

SCREW, BRACE

02142-0616A

$1.49

10

NUT

09148-06021

$3.56

11

COVER, REAR FENDER REAR

63113-44H00

Unavailable

12

SCREW

03541-0516A

$1.49

13

WASHER, LICENSE PLATE

09160-06077

$1.91
