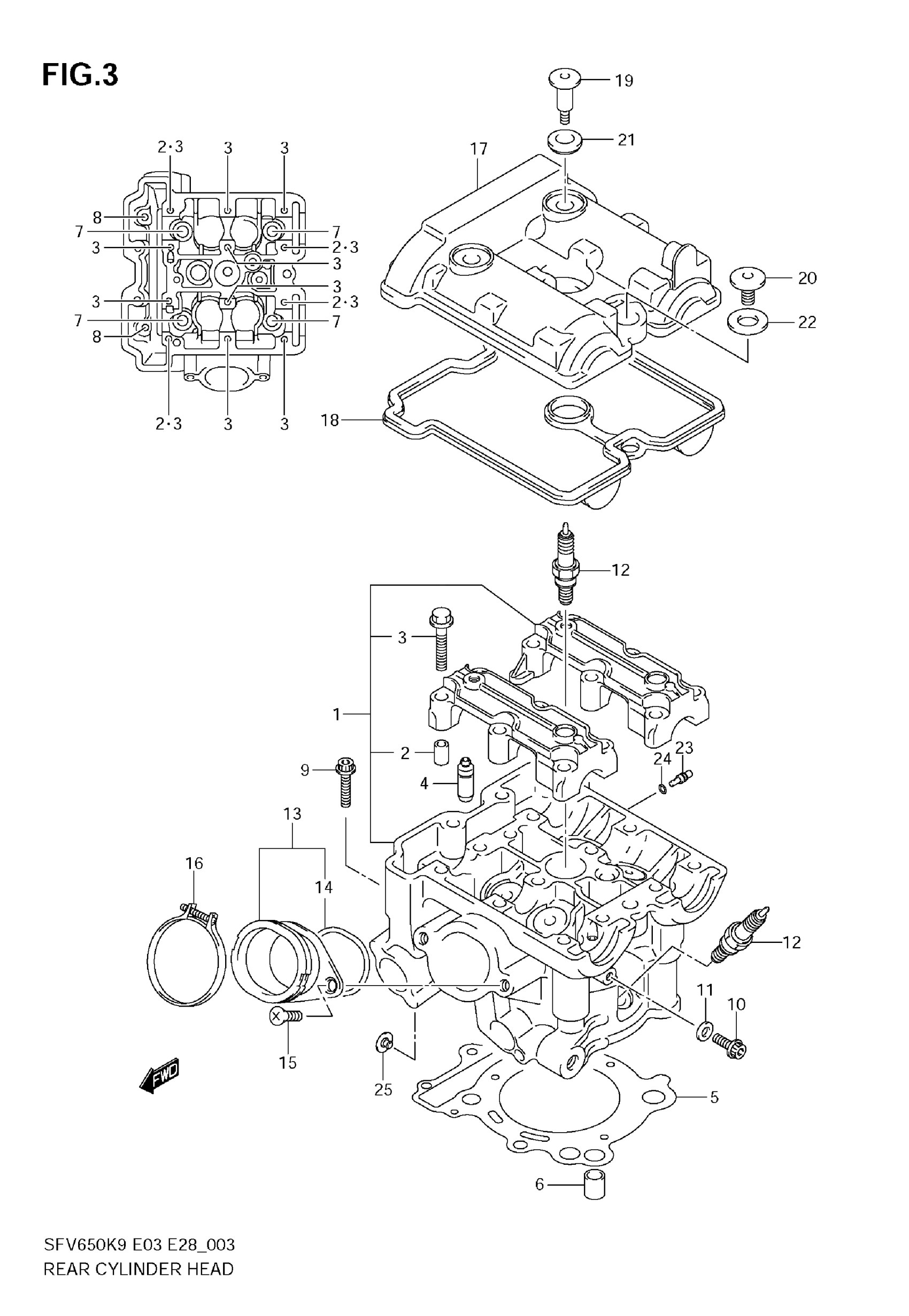

Suzuki SFV650 (2009) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 3

11103-44H00

Unavailable

2

PIN (6.2X8X11)

09206-08001

$1.78

3

BOLT (6X39)

09103-06026

$1.98

4

GUIDE, VALVE | OPT

11115-18D72

$34.63

5

.GASKET,CYLINDER HEAD

11141-20F00

$43.52

6

PIN

04211-13189

$2.19

7

BOLT,CYL HEAD (L:160)

11117-44H00

$19.73

8

BOLT (6X70)

09103-06103

$2.53

9

BOLT

07120-0640B

$3.37

10

BOLT

07120-0612B

$3.04

11

GASKET (5.8X13X1.2)

09168-06023

$2.35

12

SPARK PLUG (NGK,CR8EIA-9)

09482-00556

$10.85

12

SPARK PLUG (DENSO,IU24D)

09482-00555

$17.96

12

SPARK PLUG (NGK,CR9EIA-9) | OPT

09482-00558

$12.14

12

SPARK PLUG (DENSO,IU27D) | OPT

09482-00557

$16.60

12

SPARK PLUG (NGK,CR7EIA-9) | OPT

09482-00554

$11.97

12

SPARK PLUG (DENSO,IU22D) | OPT

09482-00553

$17.50

13

PIPE ASSY,INTAKE REAR | Includes Item(s) 14 This part replaces 13102-17G10.

13102-17G11

$56.27

14

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

15

SCREW

02122-0616B

$1.96

16

CLAMP,INTAKE PIPE This part replaces 13827-40H00.

13827-40H01

$15.37

17

COVER,CYLINDER HEAD RR

11172-19F20

Unavailable

18

.GASKET,CYLINDER HEAD COVER

11173-19F01

$34.08

19

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

20

BOLT (7X19)

09106-07010

$4.64

21

WASHER

11191-27E00

$4.27

22

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

23

JET, OIL

09493-80005

$16.25

24

O RING

09280-04004

$1.91

25

CAP,ENGINE MOUNTING RR RH This part replaces 11151-27G00.

11151-27G01

$3.68
