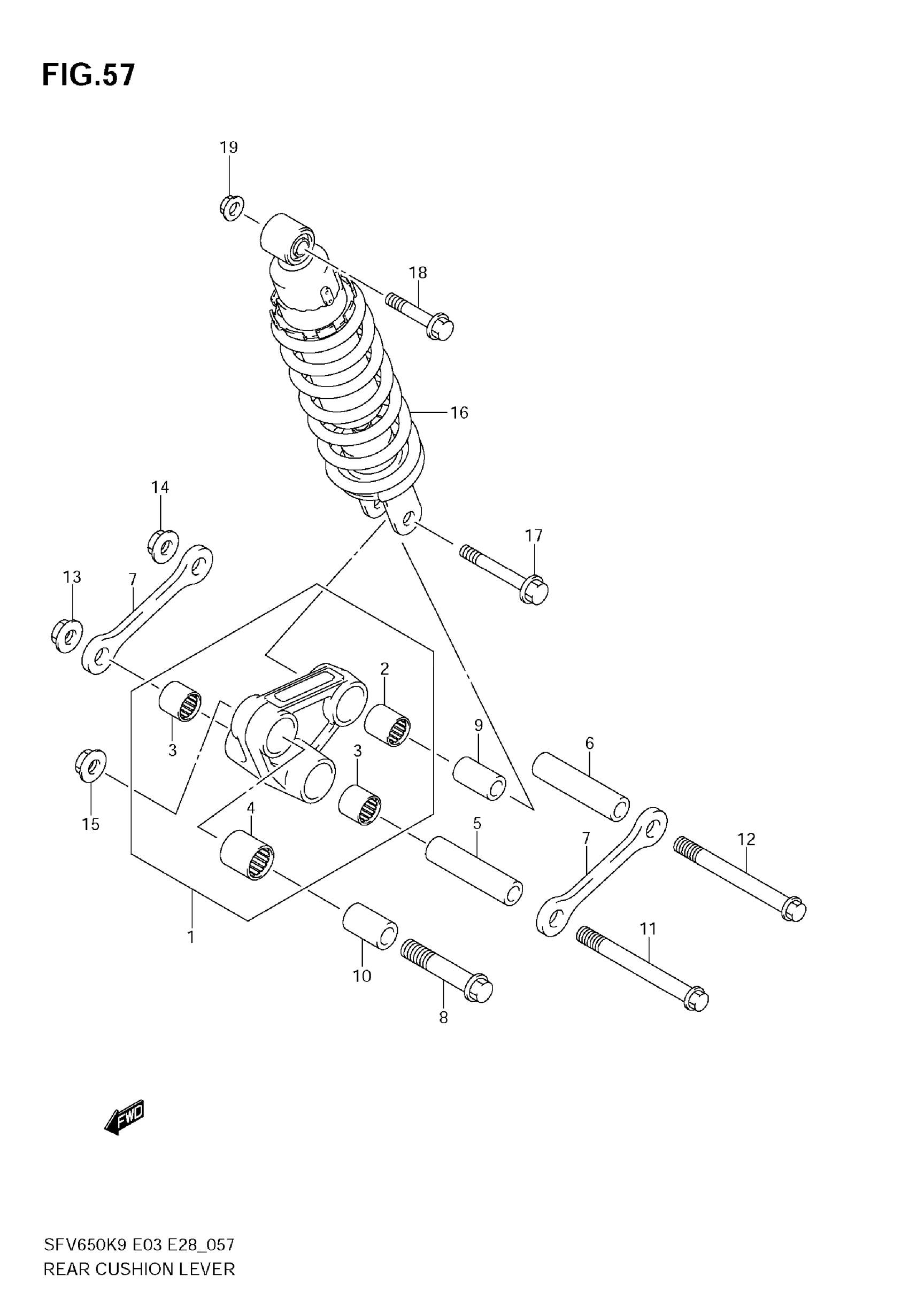

Suzuki SFV650 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CUSHION | Includes Item(s) 2 - 4 This part replaces 62600-44880.

62600-44882

$381.70

2

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

5

SPACER, RR CUSHION LEVER

62626-17G00

$25.33

6

SPACER, RR CUSHION ROD

62626-17G00

$25.33

7

ROD,RR CUSHION LEVER

62641-44H00

$33.58

8

BOLT, RR CUSHION LEVER

62668-42A02

$10.67

9

SPACER, RR CUSHION LEVER

62684-40A10

$12.15

10

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

11

BOLT, RR CUSHION LEVER

09103-12034

$10.30

12

BOLT, RR CUSHION ROD

09103-12034

$10.30

13

NUT, RR CUSHION LEVER CTR

09159-12056

$7.37

14

NUT, RR CUSHION ROD

09159-12056

$7.37

15

NUT, RR CUSHION LEVER FR

09159-12056

$7.37

16

ABSORBER, REAR SHOCK (BLACK) | E3,E33

62100-44H10-019

Unavailable

16

ABSORBER, REAR SHOCK (BLACK) | E28

62100-44H00-019

Unavailable

17

BOLT, RR SHOCK ABSORBER LOWER

09103-10126

$4.50

18

BOLT, RR SHOCK ABSORBER UPPER

09103-10213

$5.77

19

NUT, RR SHOCK ABSORBER

09159-10115

$3.55
