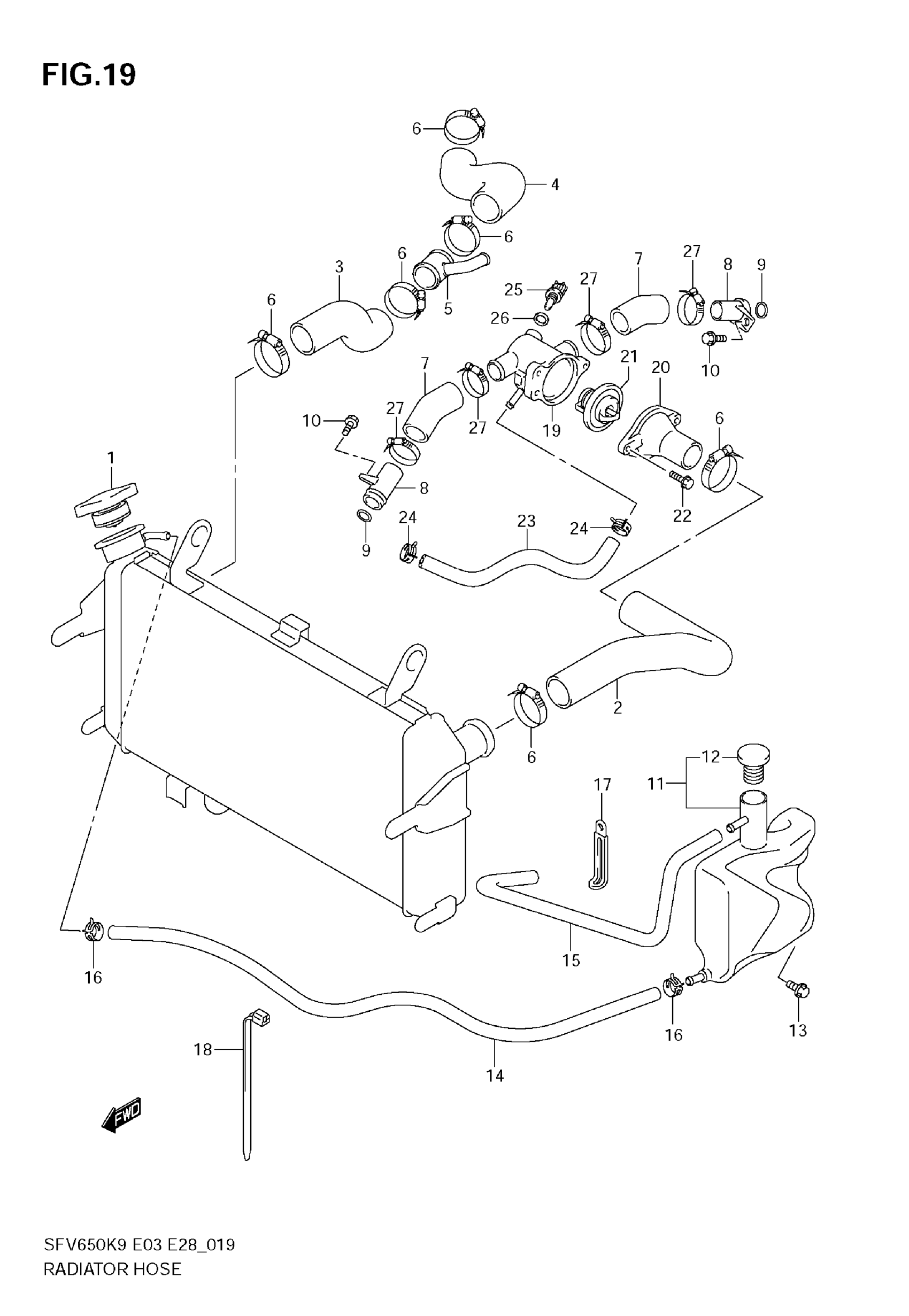

Suzuki SFV650 (2009) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR 1.1

17730-12C30

$51.93

2

HOSE,RADIATOR INLET

17851-44H00

$59.32

3

HOSE,RADIATOR OUTLET NO.1

17852-44H00

$23.07

4

HOSE, RADIATOR OUTLET NO.2

17854-44H00

$21.82

5

UNION, WATER HOSE THREE WAY

17880-44H00

$40.75

6

CLAMP

09402-38512

$11.72

7

HOSE,CONNECTOR INLET

17853-19F00

$14.34

8

UNION, CONNECTOR HOSE

17890-06G20

$14.43

9

O RING

09280-18009

$5.83

10

BOLT

07130-0612A

$2.50

11

TANK ASSY, RESERVOIR | Includes Item(s) 12

17910-44H00

Unavailable

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

13

BOLT

09111-06085

$4.54

14

HOSE,RSVR TANK INLET

17981-44H00

Unavailable

15

HOSE, RESERVOIR TANK OVERFLOW | L:600!420

09352-50901-600

$8.06

16

CLIP

09401-08411

$1.78

17

CLAMP

09404-06429

$1.83

18

CLAMP

09407-19401

$3.05

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

$64.30

20

CAP,THERMOSTAT CONNECTOR

17663-17G00

$29.33

21

THERMOSTAT,WATE This part replaces 17670-06G70.

17670-06G71

$41.20

22

BOLT

01547-0616A

$2.03

23

HOSE,CONNECTOR TO WTR PMP

17856-44H00

$20.65

24

CLIP This part replaces 09401-12409.

09401-12414

$3.26

25

SENSOR, WATER TEMPERATURE

13650-49X00

$90.19

26

GASKET

09168-12017

$1.95

27

CLAMP

09402-28513

$6.88
