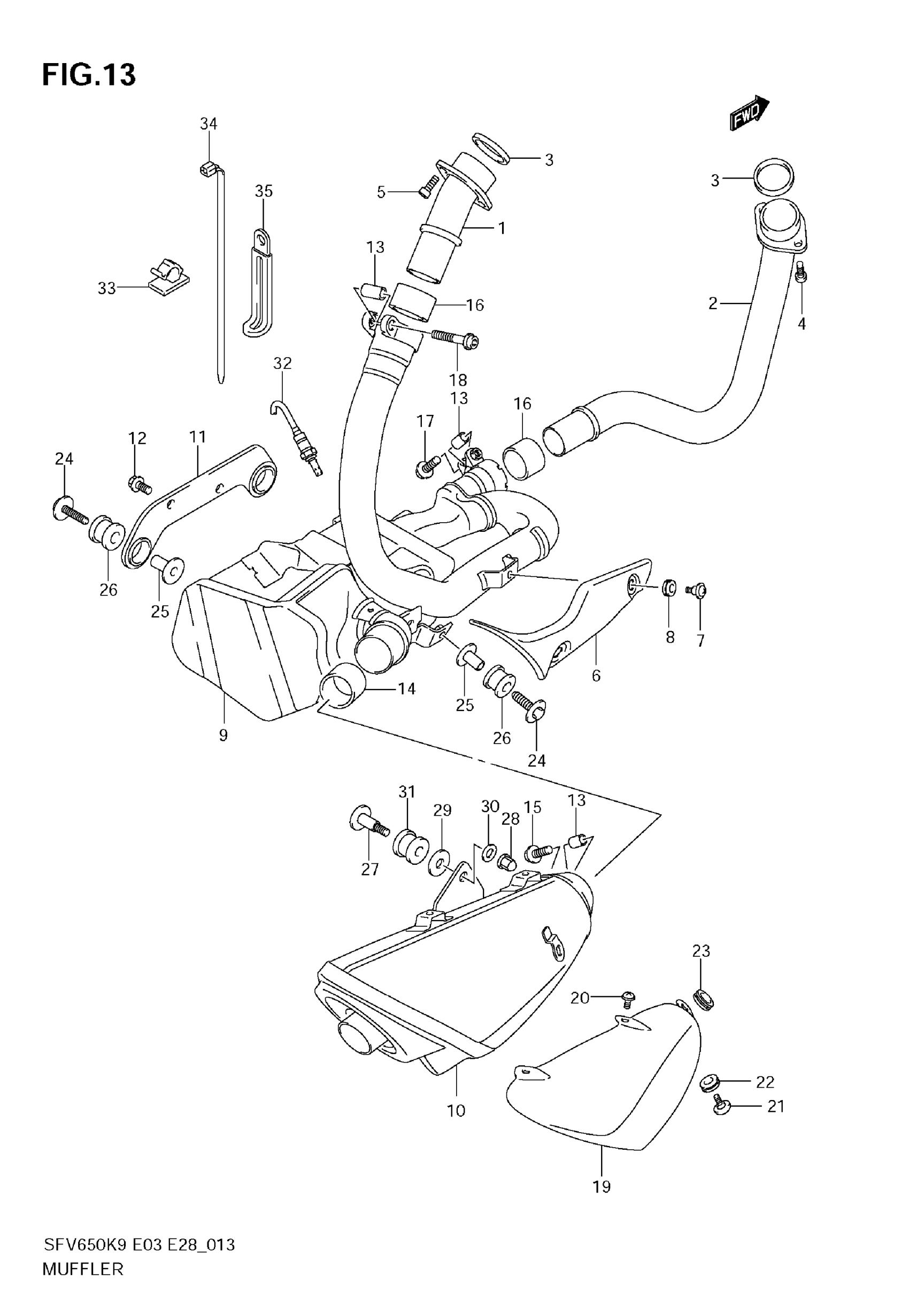

Suzuki SFV650 (2009) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RR

14150-44H00

Unavailable

2

PIPE, EXHAUST FR

14160-44H00

Unavailable

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

BOLT, EXH PIPE FR

09106-08165

$4.03

5

BOLT, EXH PIPE RR

07130-0825B

$3.37

6

COVER, EXHAUST

14180-44H00

Unavailable

7

BOLT, EXH COVER

09139-06124

$4.52

8

CUSHION (8.4X18X6)

09320-08066

$8.24

9

CHAMBER | W/CATALYST

14200-44H00

Unavailable

10

BODY, MUFFLER

14310-44H00-H01

Unavailable

11

BRACKET

14410-44H00

Unavailable

12

BOLT (8X16)

01550-0816A

$2.32

13

SPACER, CLAMP

14458-06H00

$7.05

14

CONNECTOR, MUFFLER JOINT

14771-45G00

$25.76

15

BOLT, JOINT CONNECTOR

09103-08365

$3.91

16

CONNECTOR, EXHAUST

14771-32E00

$21.84

17

BOLT, EXH CONN FR

09103-08365

$3.91

18

BOLT, EXH CONN RR

09106-08162

$4.77

19

COVER, MUFFLER

14780-44H00

Unavailable

20

BOLT, MUF COVER

09139-06122

$3.04

21

BOLT, MUF COVER

09139-06124

$4.52

22

CUSHION (8.4X18X6)

09320-08066

$8.24

23

CUSHION, MUF COVER

09321-10018

$5.45

24

BOLT, EXHAUST

09118-08145

$6.47

25

SPACER, EXHAUST

09180-08152

$5.83

26

CUSHION, EXHAUST

09320-12077

$11.78

27

BOLT, MUFFLER

14419-29F00

$13.02

28

NUT, MUFFLER

09159-08143

$6.28

29

WASHER, MUFFLER

09160-08503

$2.50

30

WASHER, MUFFLER OUTER

09160-08054

$1.49

31

CUSHION, MUFFLER

09320-12077

$11.78

32

SENSOR, OXYGEN This part replaces 18213-18H00.

18213-18H10

$388.57

33

CLAMP

09403-08327

Unavailable

34

CLAMP

09407-18402

$2.19

35

CLAMP

09404-06429

$1.83
