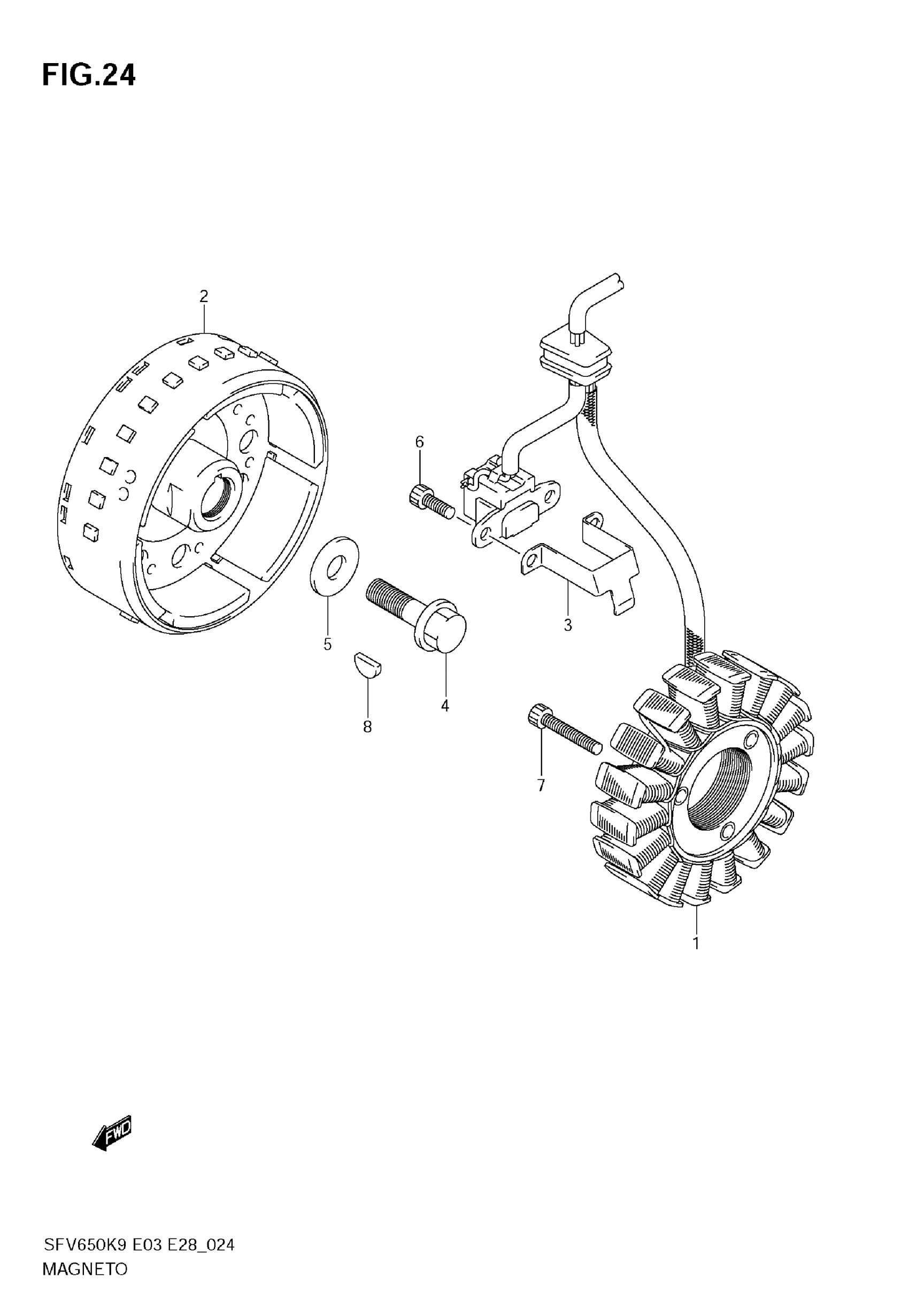

Suzuki SFV650 (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-17G20.

32101-17G23

$394.48

2

ROTOR ASSY

32102-17G01

$356.60

3

CLAMP,MAGNETO LEAD

32371-19F10

Unavailable

4

BOLT (12X40)

09103-12004

$4.00

5

WASHER (12X30X3.0)

09160-12036

$3.93

6

BOLT

07130-0512B

$2.50

7

BOLT

07130-0630B

$3.37

8

KEY

09420-04008

$3.42
