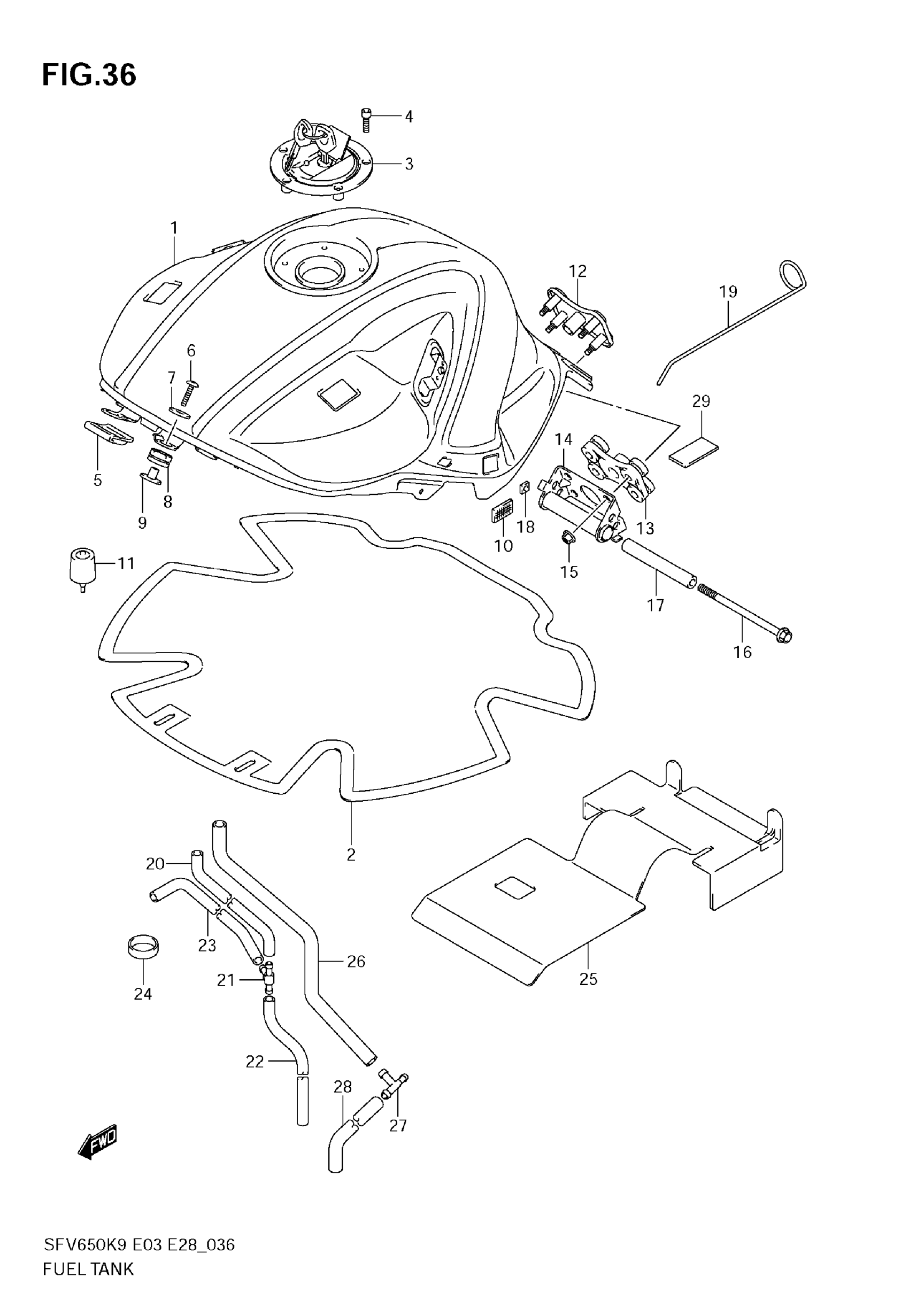

Suzuki SFV650 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3 FOR YAY

44100-44H00-YAY

Unavailable

1

TANK ASSY, FUEL (MAGENTA) | E28 FOR GDW

44100-44H00-YRH

Unavailable

1

TANK ASSY, FUEL (BLUE) | E3,E28 FOR GLR

44100-44H00-YSF

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33 FOR YAY

44100-44H20-YAY

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33 FOR GLR

44100-44H20-YSF

Unavailable

2

SHIELD, TANK HEAT

44191-44H00

Unavailable

3

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

3

CAP SET,FUEL TA | E33 This part replaces 44200-16870.

44200-16872

$155.42

4

BOLT

09106-05017

$2.83

5

RUBBER,FUEL TANK FR

44546-44H00

$13.35

6

SCREW, FRONT

09139-06029

$5.36

7

WASHER

09160-06054

$1.62

8

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

9

WASHER, LOWER

44512-16G00

$7.44

10

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

11

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

12

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

13

CUSHION, LOWER

44542-16G00

$13.77

14

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

15

NUT

08319-3106A

$2.03

16

BOLT, JOINT

09103-06060

$2.50

17

SPACER, JOINT

44561-35F00

$13.88

18

NUT

08316-1006A

$2.19

19

STAY,FUEL TANK

44574-16G00

$26.72

20

HOSE, BREATHER NO.1

44424-44H00

Unavailable

21

3 WAY, BREATHER

09367-06007

$3.46

22

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

23

HOSE,VACUUM This part replaces 44425-09E00.

44425-09E01

$11.28

24

HOSE, JOINT (L600!10)

09352-12163-600

Unavailable

25

SHEET, SHIELD RUBBER

44271-44H00

Unavailable

26

HOSE, TANK WATER DRAIN

44423-44H00

Unavailable

27

3 WAY, WATER DRAIN

09367-08005

$4.83

28

HOSE, WATER DRAIN

44423-44H10

Unavailable

29

CUSHION

36920-08D10

Unavailable
