Description

Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 13 This part replaces 15100-44H00.

15100-44H01

$713.30

2

STRAINER

15420-05H00

$41.17

3

CUP, RESERVOIR

15111-27G00

$42.43

4

JOINT

15112-05H00

$28.12

5

O RING

15113-05H00

$19.98

6

O RING

15113-35F00

$8.91

7

REGULATOR

15610-27G00

$165.68

8

WIPE, EARTH

15114-27G00

Unavailable

9

WIRE, LEAD

15115-27G00

$28.27

10

SCREW

15116-44H00

Unavailable

11

SCREW

15116-10F00

$5.58

12

BRACKET, FUEL GAUGE

15181-44H00

Unavailable

13

GAUGE ASSY

34810-44H00

$179.03

14

O-RING

15201-35F00

$27.60

15

BOLT

07120-0612A

$2.50

16

HOSE, FUEL This part replaces 15810-44H00.

15810-44H01

$123.27

17

CLAMP

09407-18402

$2.19

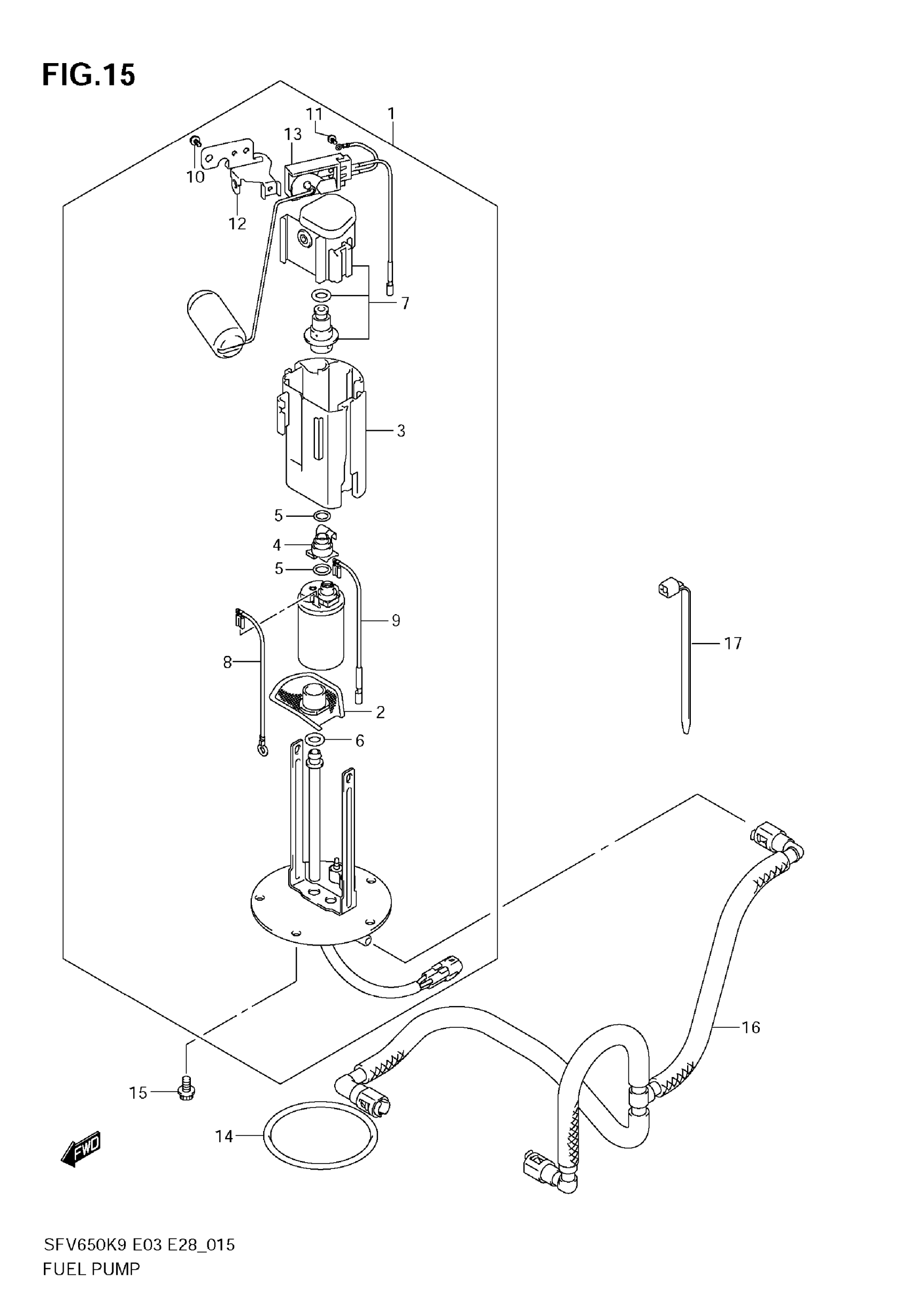

Suzuki SFV650 (2009) FUEL PUMP Diagram

PUMP ASSY, FUEL | Includes Item(s) 2 - 13 This part replaces 15100-44H00.

STRAINER

CUP, RESERVOIR

JOINT

O RING

O RING

REGULATOR

WIPE, EARTH

WIRE, LEAD

SCREW

SCREW

BRACKET, FUEL GAUGE

GAUGE ASSY

O-RING

BOLT

HOSE, FUEL This part replaces 15810-44H00.

CLAMP
