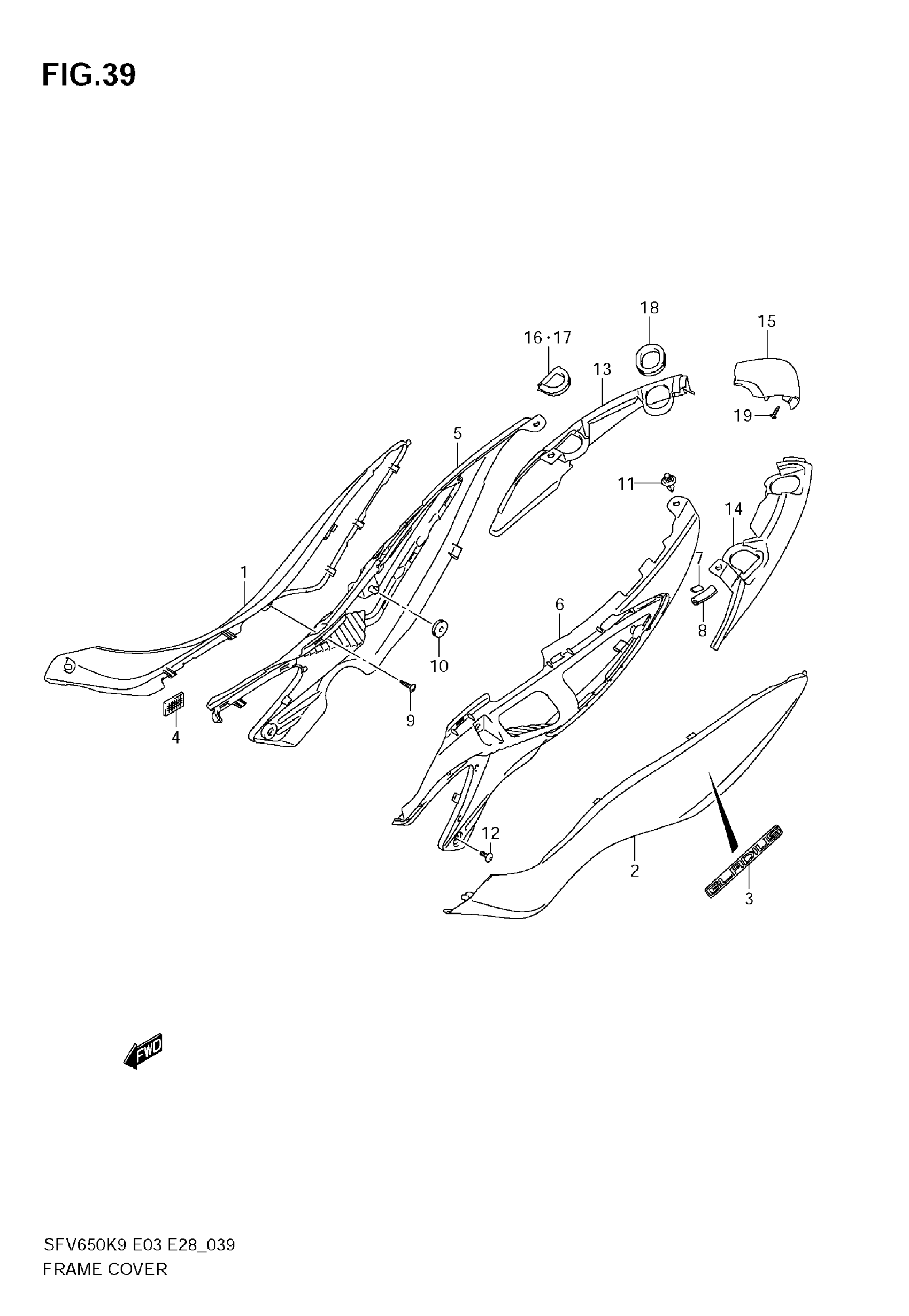

Suzuki SFV650 (2009) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR YAY

47111-44H00-YAY

Unavailable

1

COVER, FRAME RH (WHITE) | FOR GDW

47111-44H00-YPA

Unavailable

1

COVER, FRAME RH (WHITE) | FOR GLR

47111-44H00-YBD

$213.15

2

COVER, FRAME LH (BLACK) | FOR YAY

47211-44H00-YAY

Unavailable

2

COVER, FRAME LH (WHITE) | FOR GDW

47211-44H00-YPA

Unavailable

2

COVER, FRAME LH (WHITE) | FOR GLR

47211-44H00-YBD

Unavailable

3

EMBLEM (SILVER) | FOR YAY

68131-44H00-YM6

$10.91

3

EMBLEM (MAGENTA) | FOR GDW

68131-44H00-YRH

Unavailable

3

EMBLEM (BLUE) | FOR GLR

68131-44H00-YSF

Unavailable

4

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

5

COVER, FRAME REAR RH (BLACK)

47411-44H00-291

Unavailable

6

COVER, FRAME REAR LH (BLACK) | E3,E28

47511-44H00-291

Unavailable

6

COVER, FRAME REAR LH (BLACK) | E33

47511-44H10-291

Unavailable

7

TAPE

44263-43E00

Unavailable

8

MOLDING

94631-35F00

$7.40

9

SCREW

03541-0512A

$1.49

10

CUSHION

09320-08028

$3.04

11

CLIP (BLACK)

09409-08308-5ES

$1.97

12

SCREW

09139-05064

$2.57

13

COVER, REAR CENTER RH (BLACK)

47311-44H00-291

$57.52

14

COVER, REAR CENTER LH (BLACK)

47312-44H00-291

$56.45

15

COVER, CENTER (BLACK)

47313-44H00-291

$29.38

16

CUSHION, REAR RH

47321-44H00

Unavailable

17

CUSHION, REAR LH

47322-44H00

Unavailable

18

CUSHION, REAR CENTER

47323-44H00

Unavailable

19

SCREW

03541-0512A

$1.49
